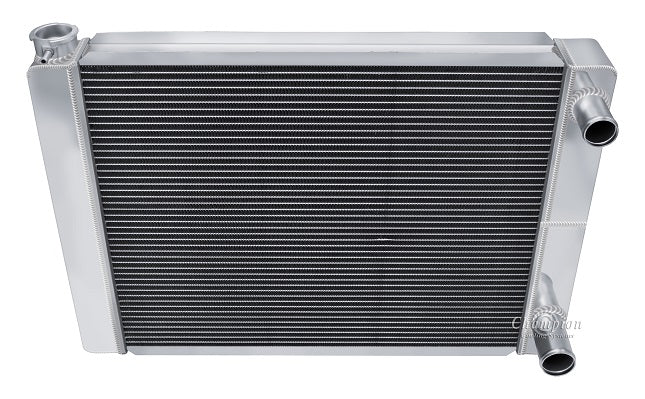

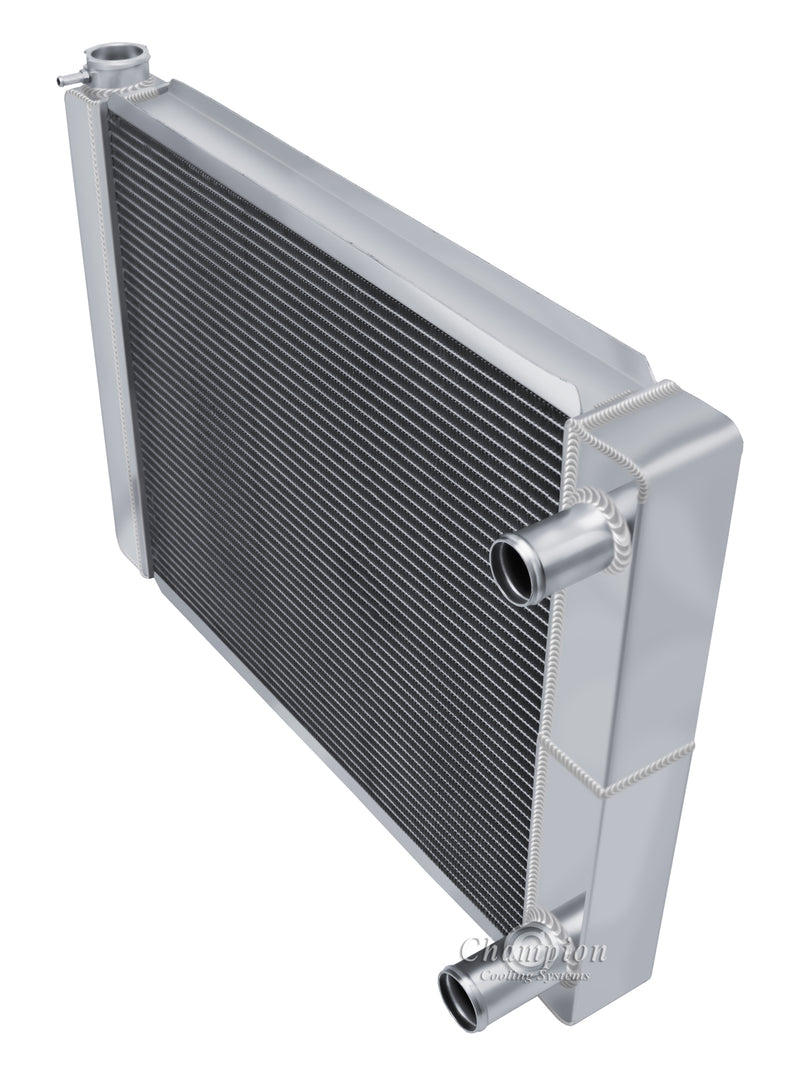

UN22-DP 3 Row Dual Pass

Universal Ford Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

NOTE: Typical to all Universal Radiators, drain petcocks are not included.

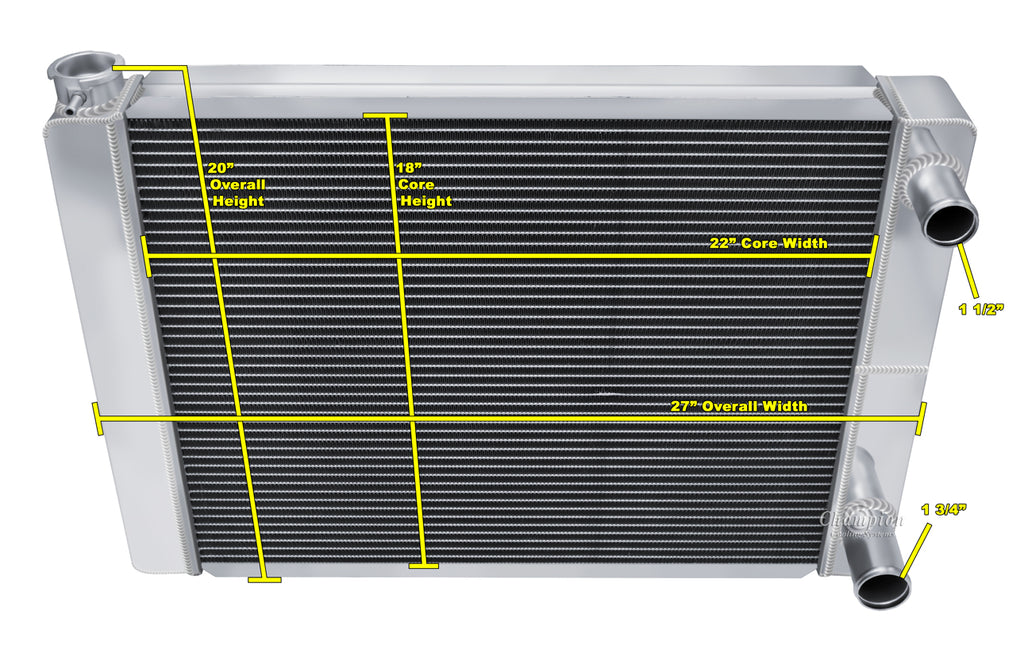

Radiator Dimensions:
Total: 20" tall x 27" wide
Core: 18" tall x 22" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
NO Transmission Cooler Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
Shroud for electric fan available:
