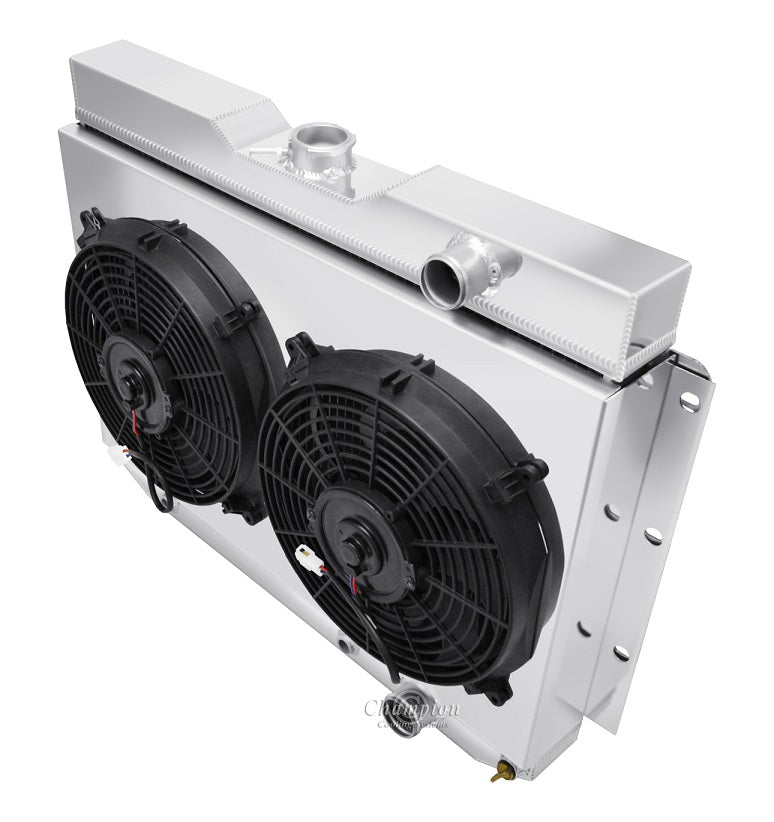

CC281B-281FS12SPF 3 Row Combo

Champion Cooling Aluminum Radiator Plus

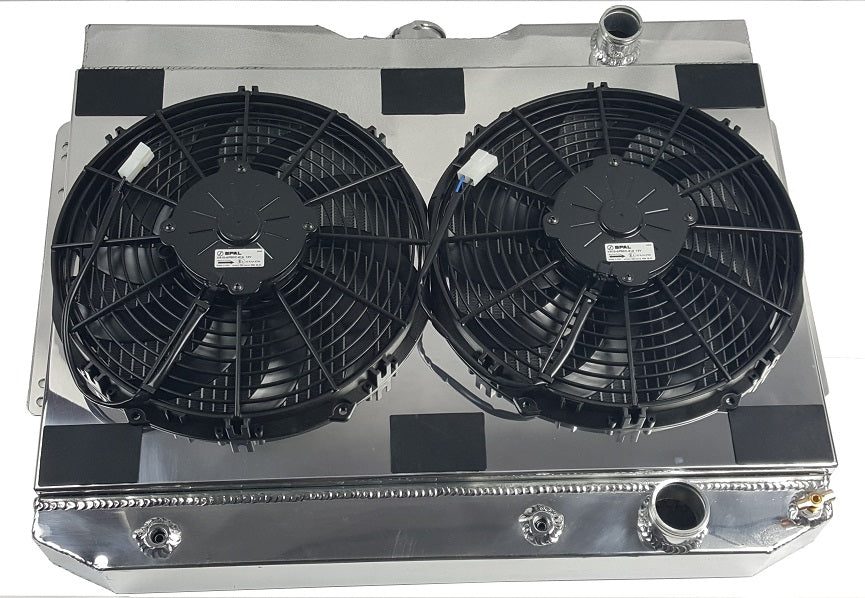

Ledfoot Racing Shroud and Two 12" SPAL-1522 Fans

3-Row Core | Cools up to 650hp

Impala's sometimes need a notched lower tank to miss the
optional power steering box, please refer to CC281PS.
DOES NOT WORK WITH GM 605 STEERING BOX

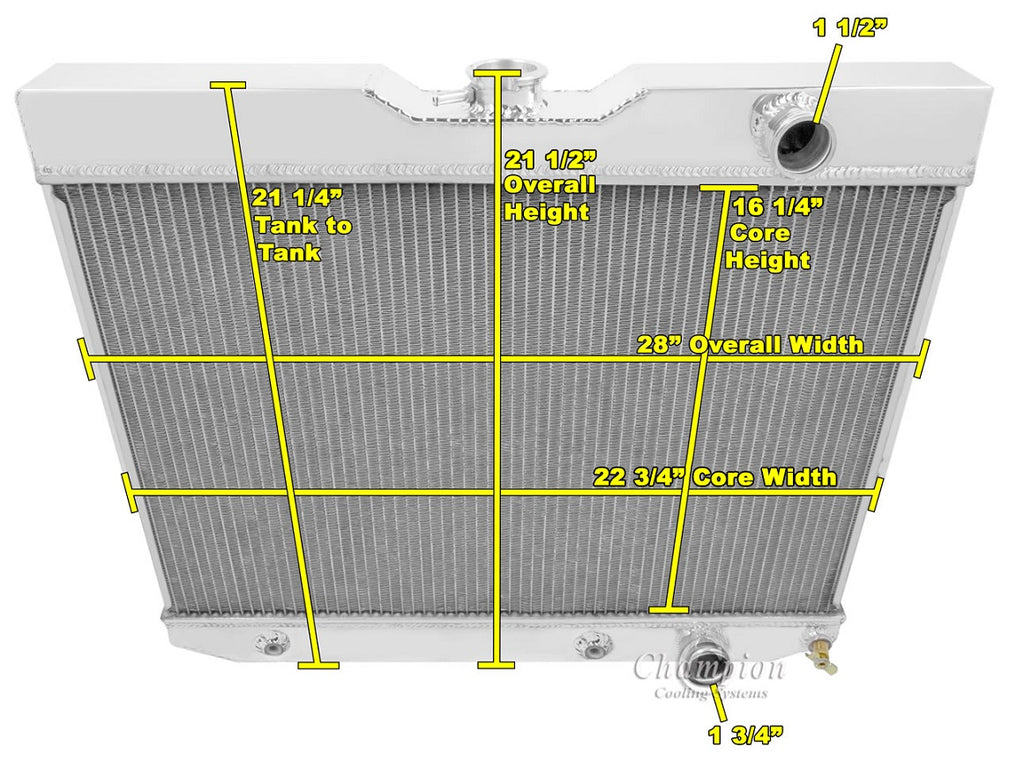

Radiator Dimensions:
Total: 21.25" tall (21.75" with cap) x 27" wide (28" including brackets)
Core: 16" tall x 24.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.63" to back of fans, 4.5" between fans

Bracket Mounted

Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
13 lb. Radiator Cap included
