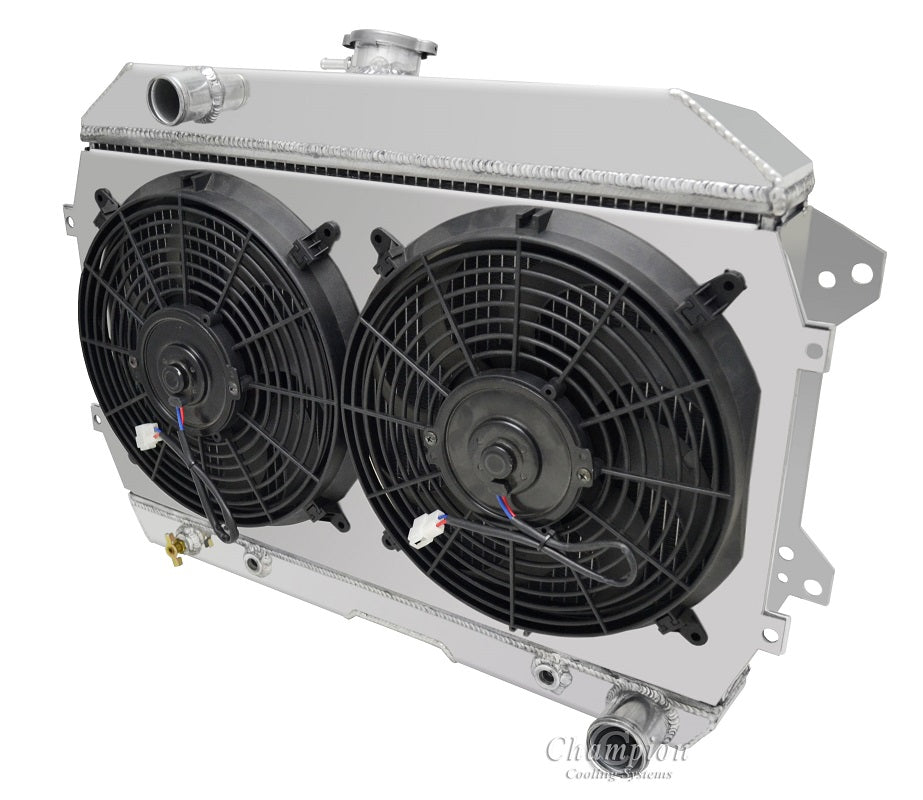

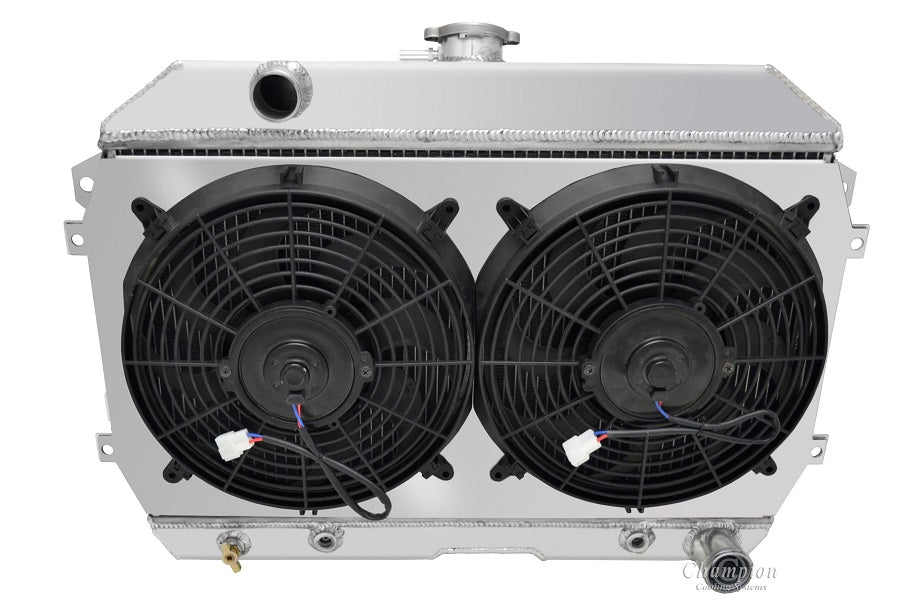

CC110CH-110FS11SP 3 Row Chevy Engine

All Aluminum Champion Radiator
Plus Ledfoot Racing Shroud and 2-11" SPAL-1500 Fans
3-Row Core | 550hp Rating
For a Chevy Conversion

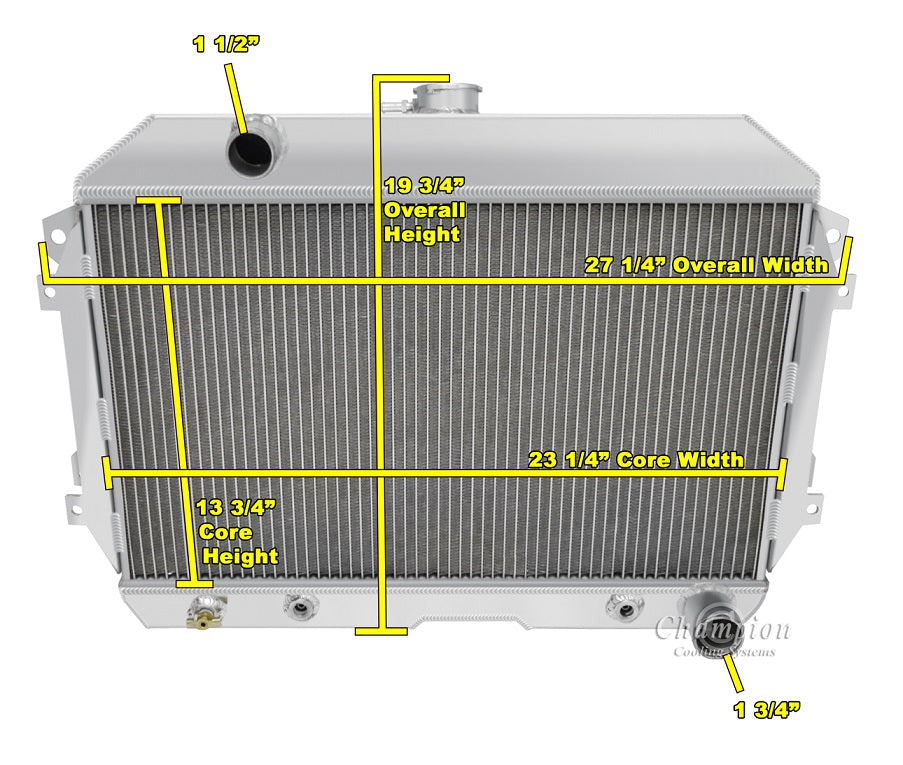

Radiator Dimensions:
Total: 18.5" (19.75" with cap) x 27.5" (including brackets)
Core: 13.75" tall x 23" wide x 2" thick
Tanks: 2.75" thick
Inlet: 1.5" drivers side
Outlet: 1.75" passenger side
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.44

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
