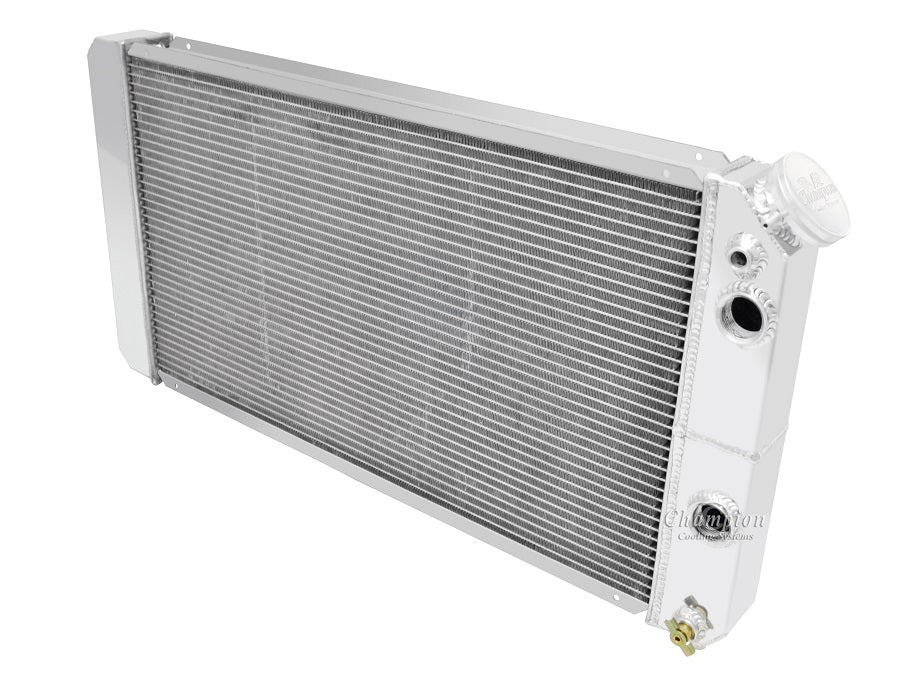

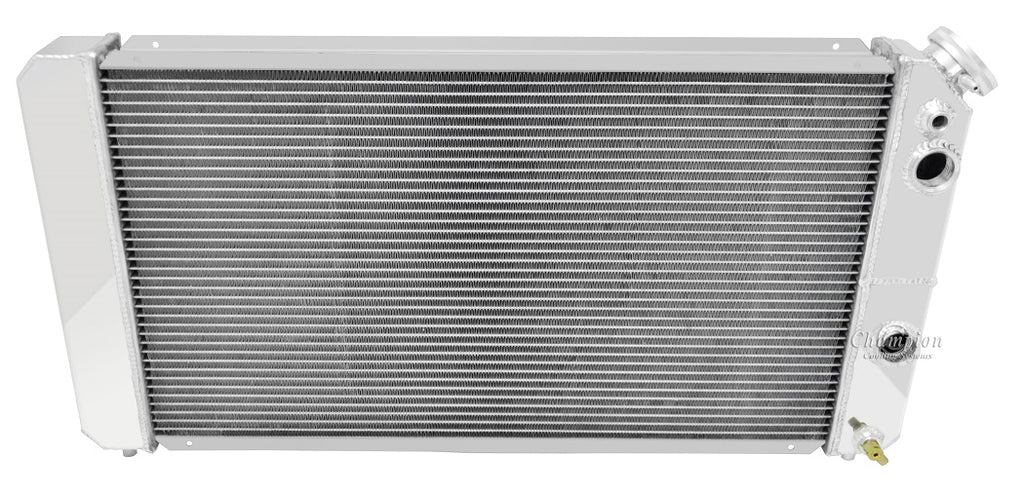

CC1826DP 3 Row Dual Pass

Champion All Aluminum Radiator
Dual Pass / LS Conversions
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core | Cools up to 800hp
If you remove the lower pins this radiator is only 16.25" tall

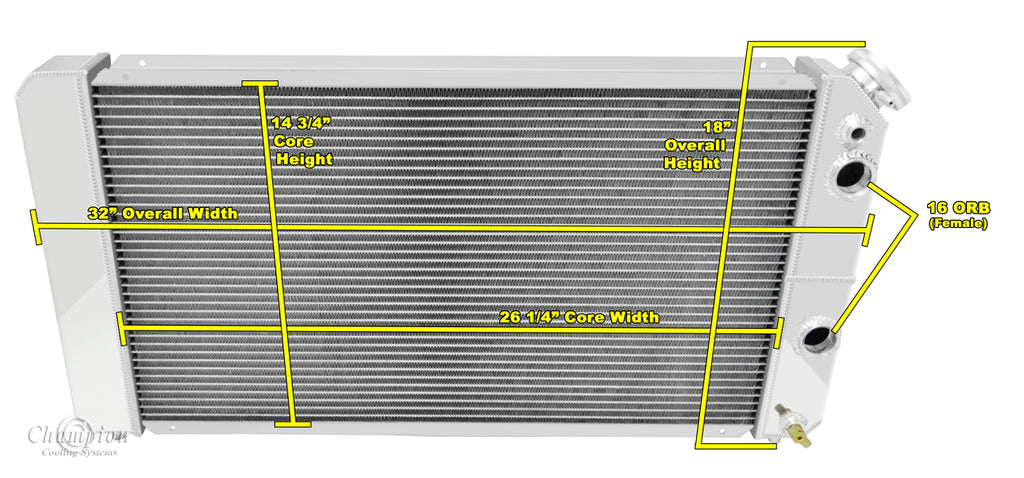

Radiator Dimensions:
Total: 16.25"(18" incl pins) tall x 32" wide
Core: 14.75" tall x 26.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included

When using electric fans (sold separately):
Two 12" Electric fans recommended for this core size
