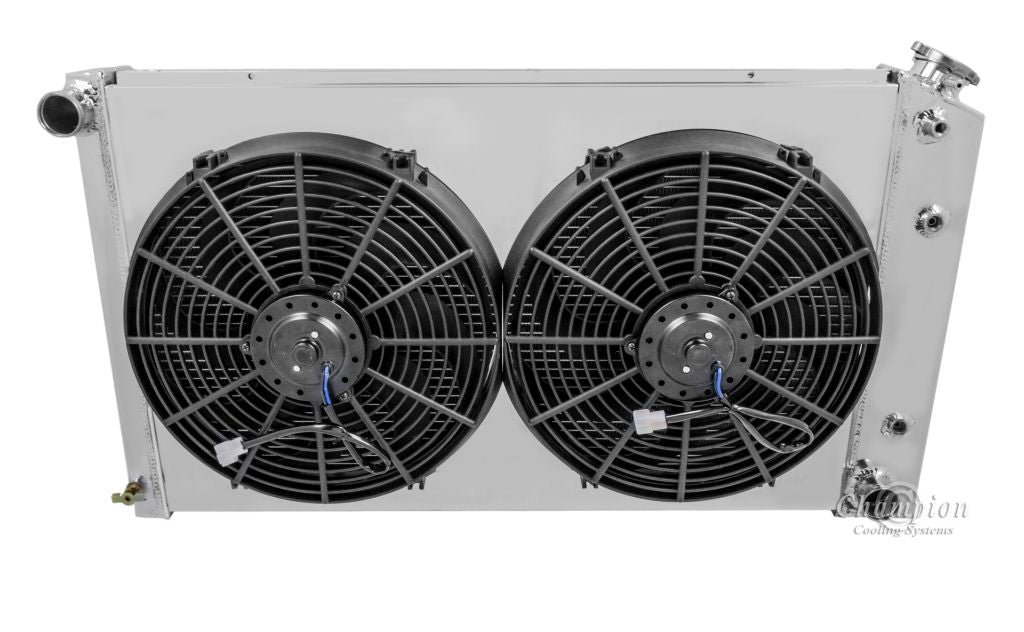

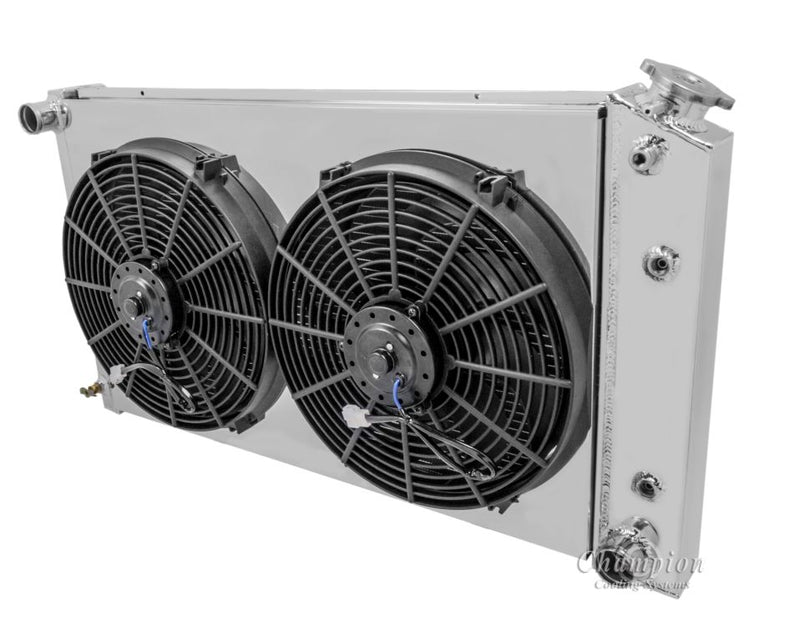

EC161-161FS14 2 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & Two 14" Fans
Verify clearance for electric fan
2 Row Core | Cools 575hp

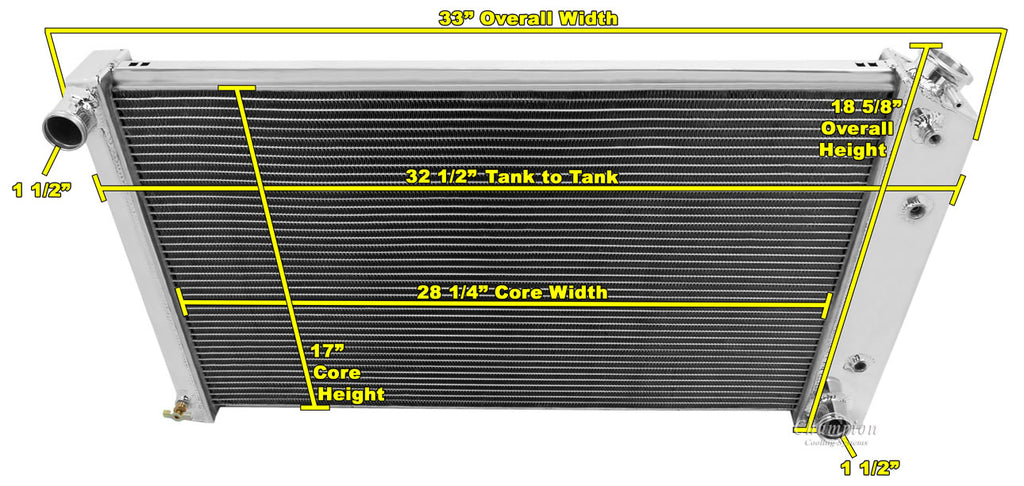

Radiator Dimensions:
Total: 18.63" tall (19” with cap) x 33" wide
Core: 17" tall x 28.25" wide x 1.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick
Total Thickness: 5.5" (4.5" between fan motors)

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
