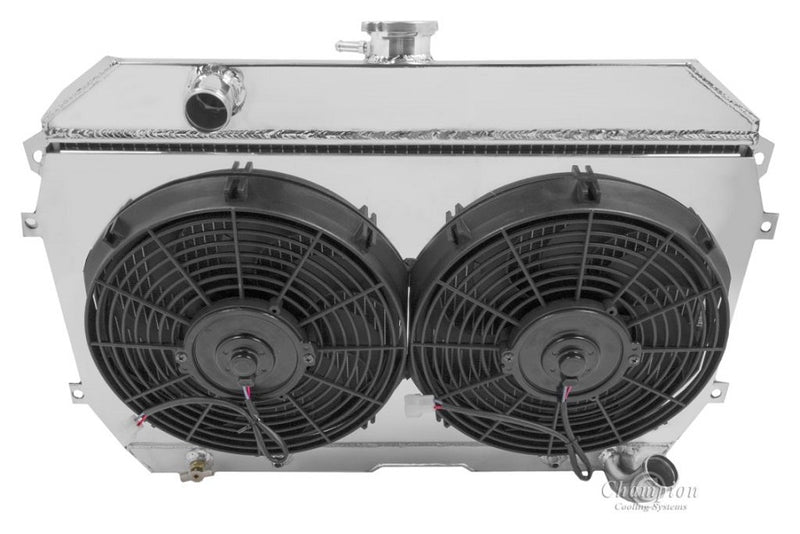

CC110-110FS11SP 3 Row Combo

All Aluminum Champion Radiator

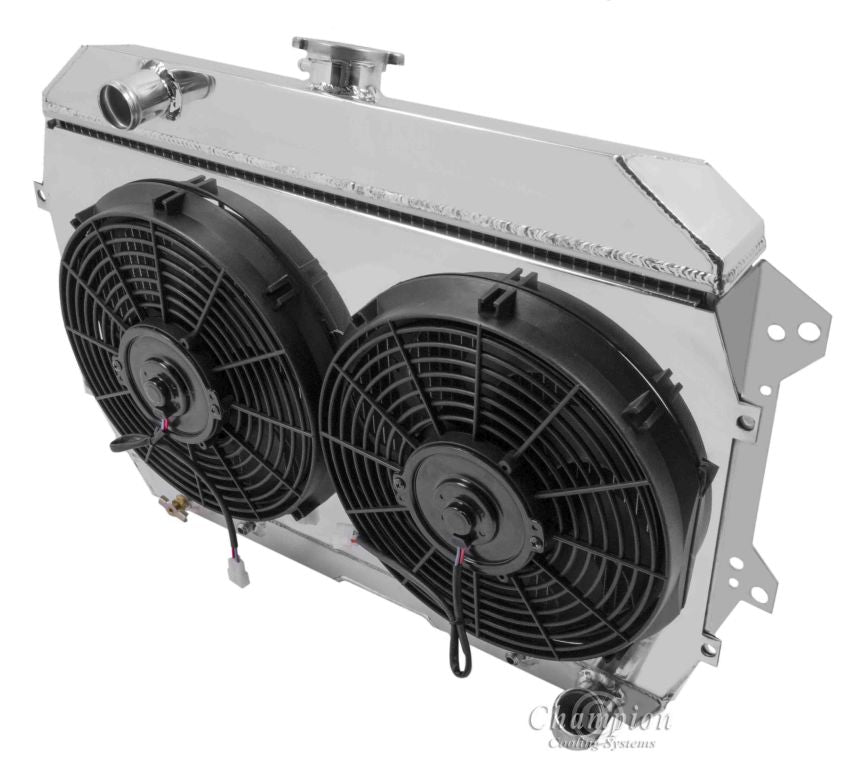

Plus Ledfoot Racing Shroud and 2-11" SPAL Medium Profile fans
3-Row Core | 550hp Rating

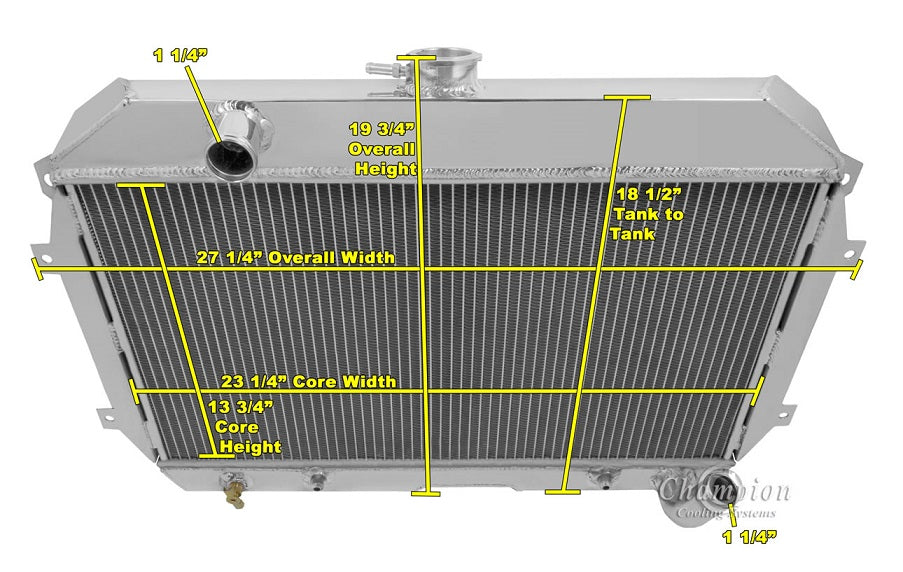

Radiator Dimensions:
Total: 18.5" (19.75" with cap) x 27.5" (including brackets)
Core: 13.75" tall x 23" wide x 2" thick
Tanks: 2.75" thick
Inlet: 1.25" drivers side
Outlet: 1.25" passenger side (angled upward)
Tubes: 0.63" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.44
Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (metric 14-1.5)
