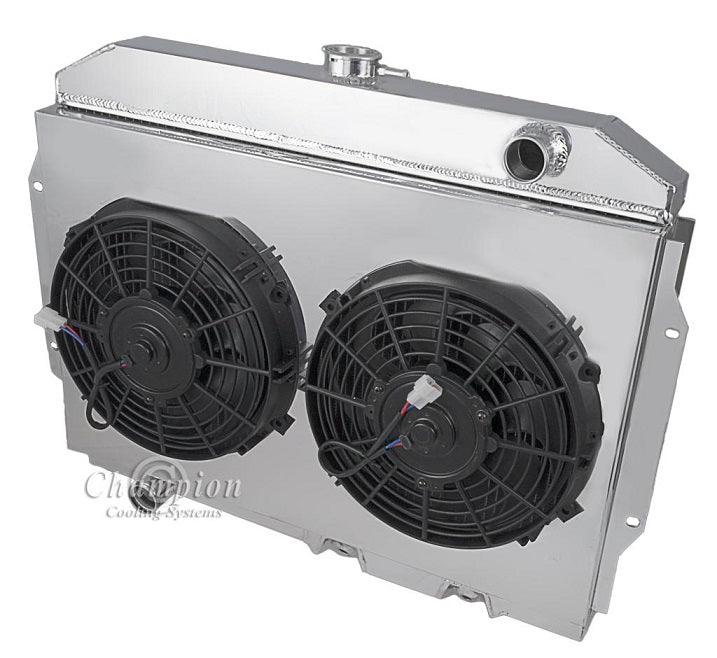

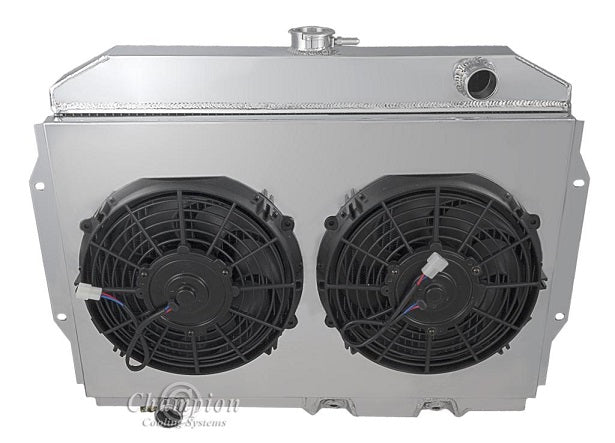

MC407-407FS11SP 4 Row Combo

Champion All Aluminum Radiator PLUS
Shroud and (2) SPAL-1500 11" Fans
4-Row Core | Cools up to 800hp
NOTE: The bracket is on the engine face of the radiator,
please confirm, the CC403 has grill side brackets.

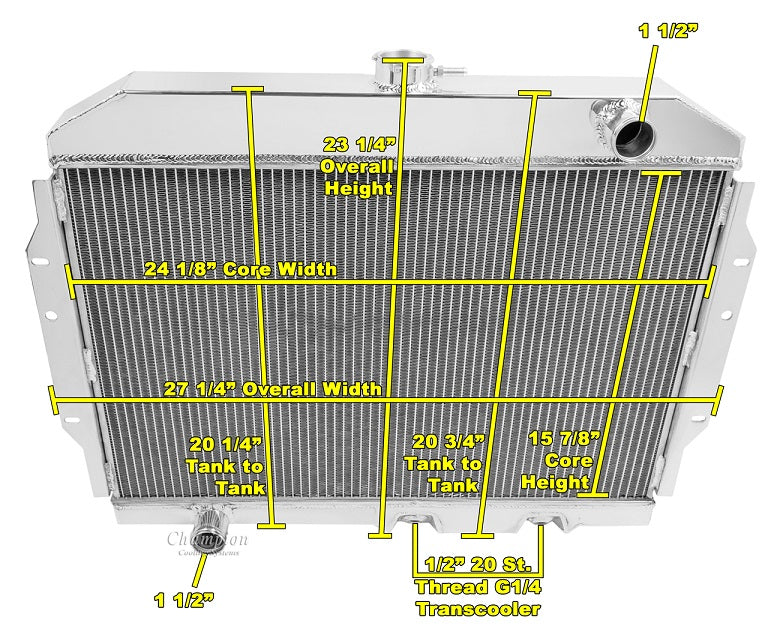

Radiator Dimensions:
Total: 22" (23.13" w/fill neck) tall x 27.25" wide
Core: 15.88" tall x 24.13" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
