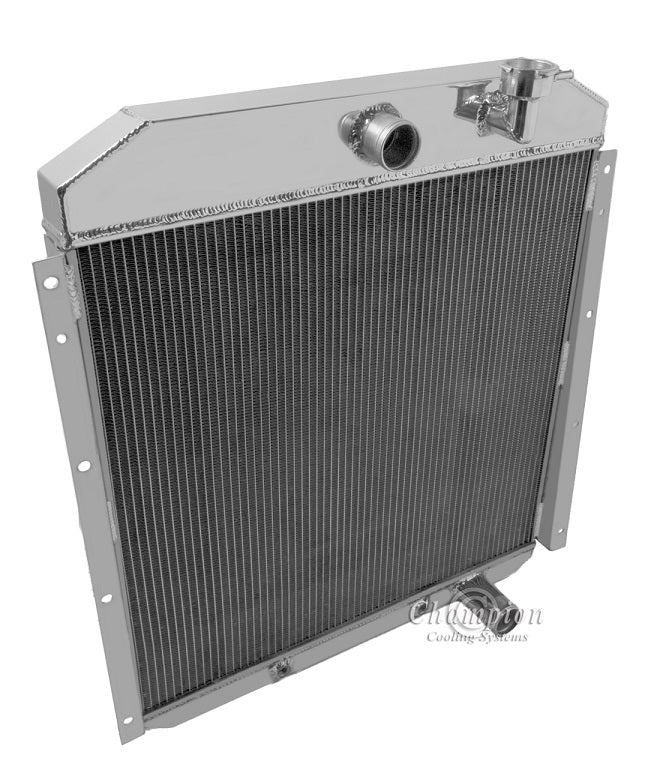

CC8559-8559FS16 3 Row Combo

Champion All Aluminum Radiator PLUS

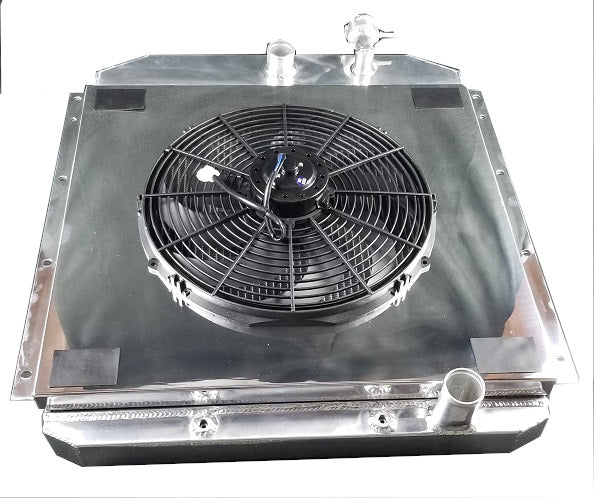

Ledfoot Racing Shroud and 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
3-Row Core | Cools up to 650hp

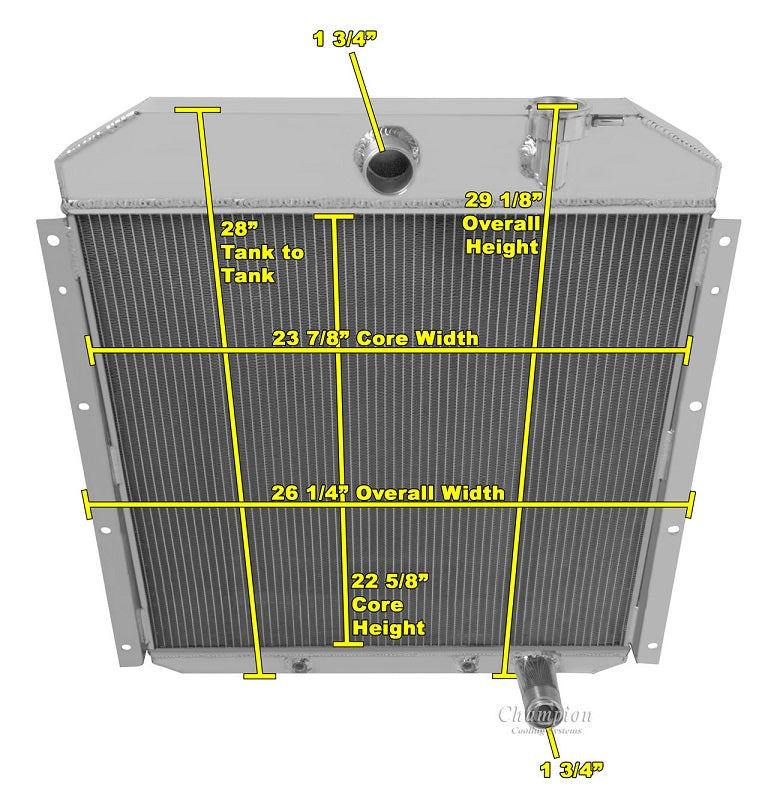

Radiator Dimensions:
Total: 29.13" tall (with cap) x 26.25" wide (including brackets)
Core: 22.63" tall x 23.88" wide
Inlet: 1.75" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2"-20straight thread)
