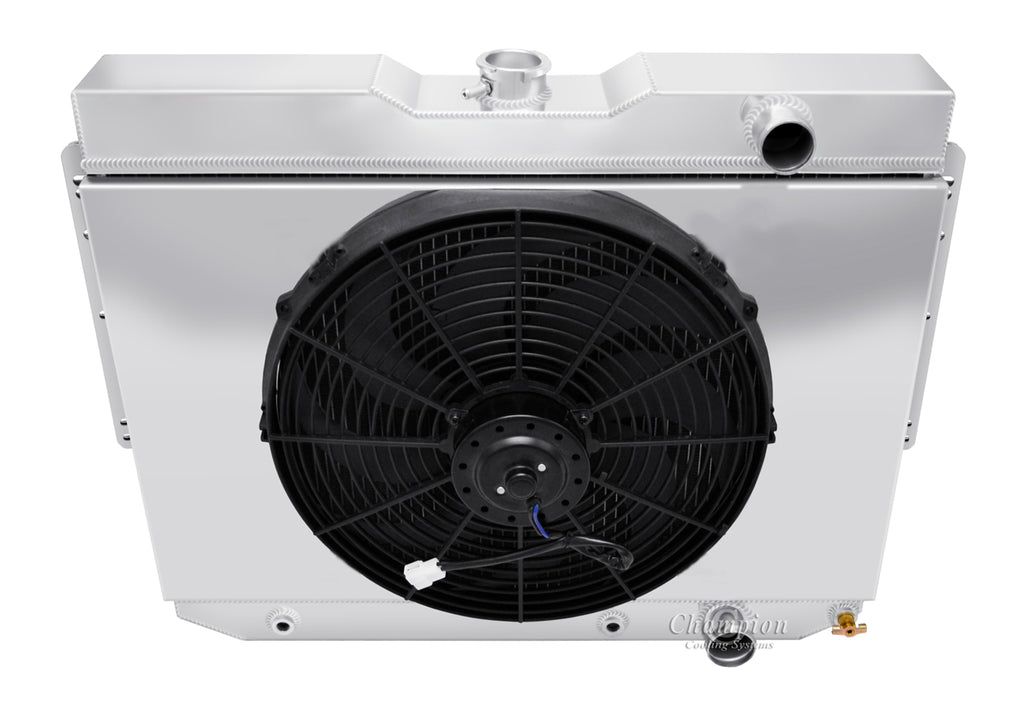

MC281-281FS16C 4 Row Combo

Champion All Aluminum Radiator Plus
Ledfoot Racing Shroud & Pro-Series 16" Fan
4-Row Core | Cools up to 700hp | Polished Tanks

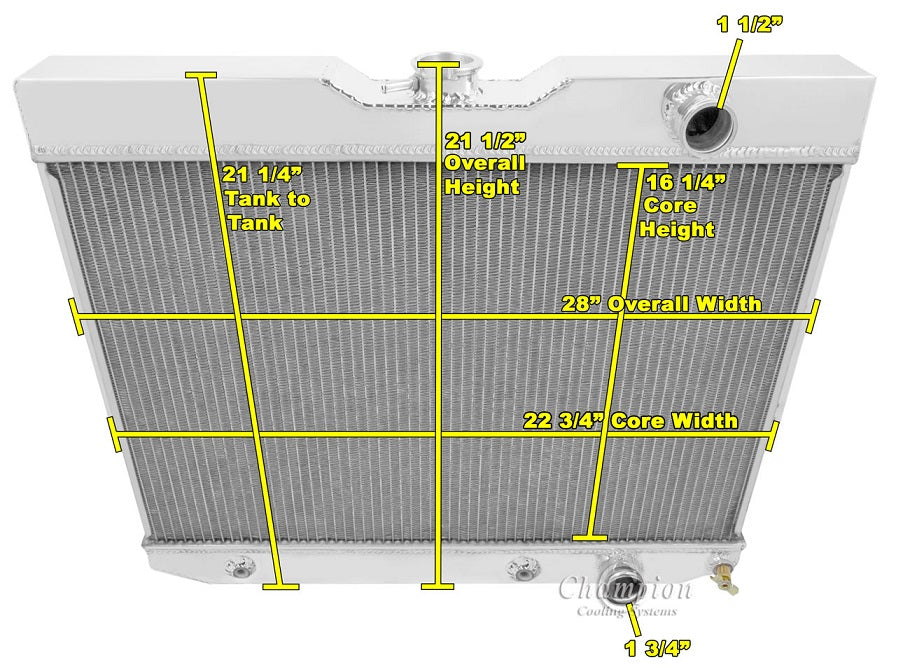

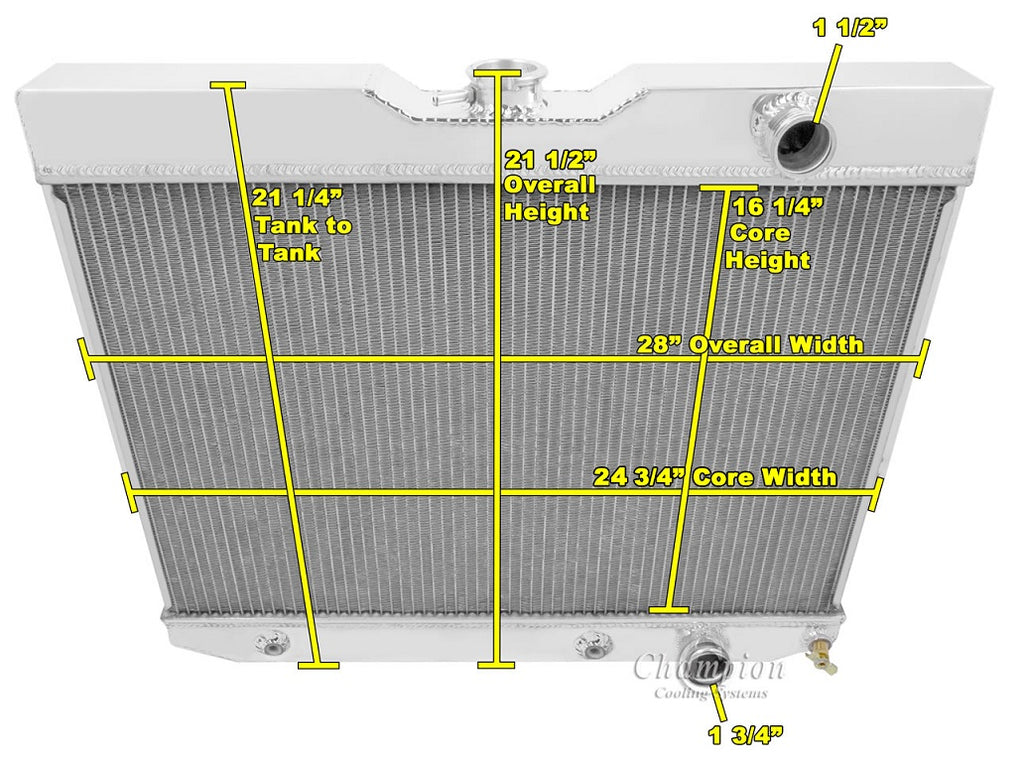

MC281 Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16.5" tall x 24.5" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6.25" to back of fan

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
