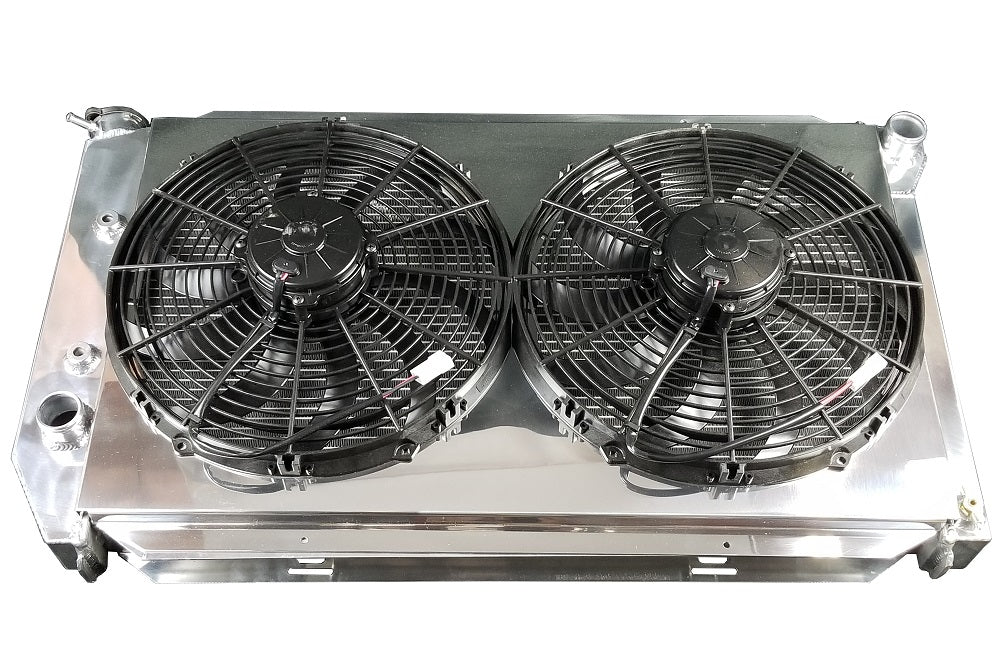

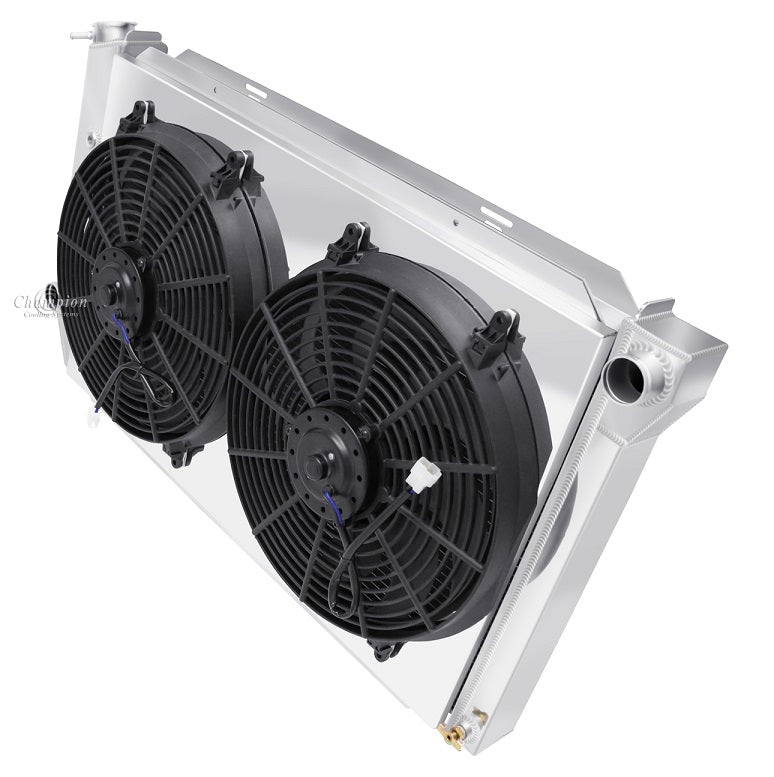

CC390-390FS14 3 Row Combo

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans
Verify clearance for electric fan
Total thickness: 5.75" to fan motor
3-Row Core | Cools up to 700hp

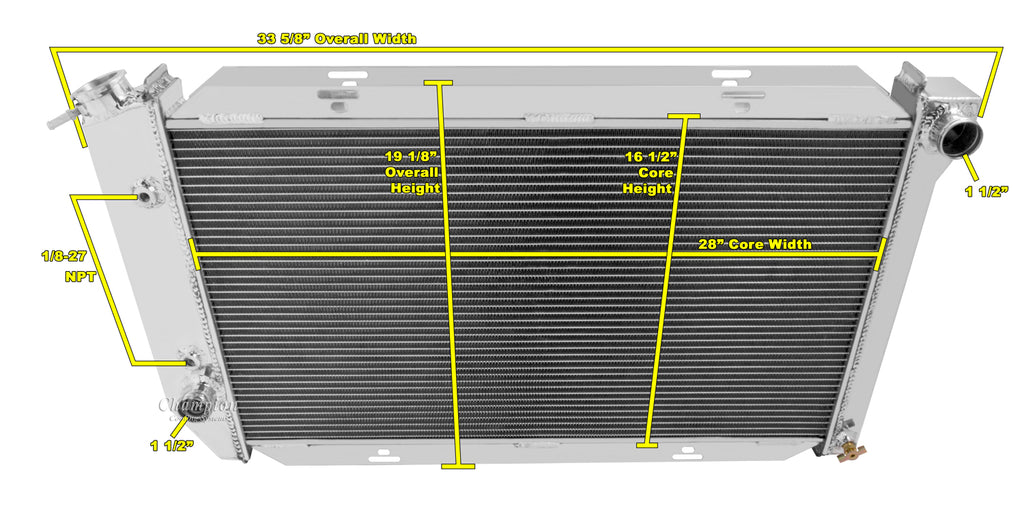

Radiator Dimensions:
Total: 19.5" tall (with cap) x 34" wide
Core: 16.5" tall x 28" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
