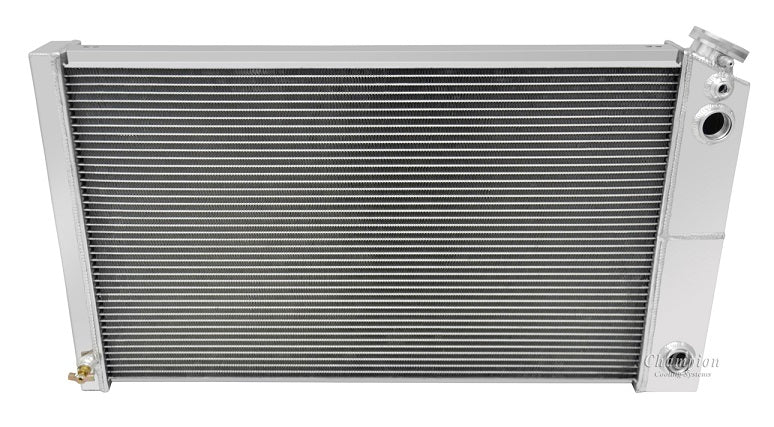

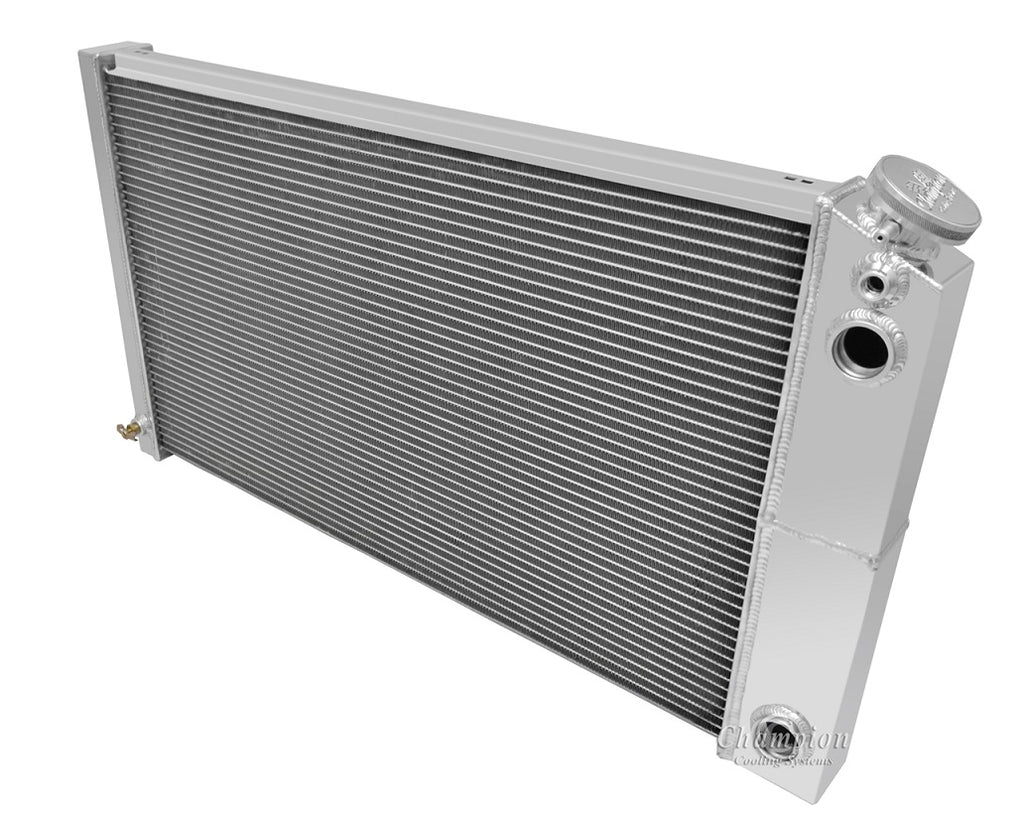

CC161DP 3 Row LS Dual Pass

Champion All Aluminum Radiator
Dual Pass / LS Conversions
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core | Cools up to 1000hp

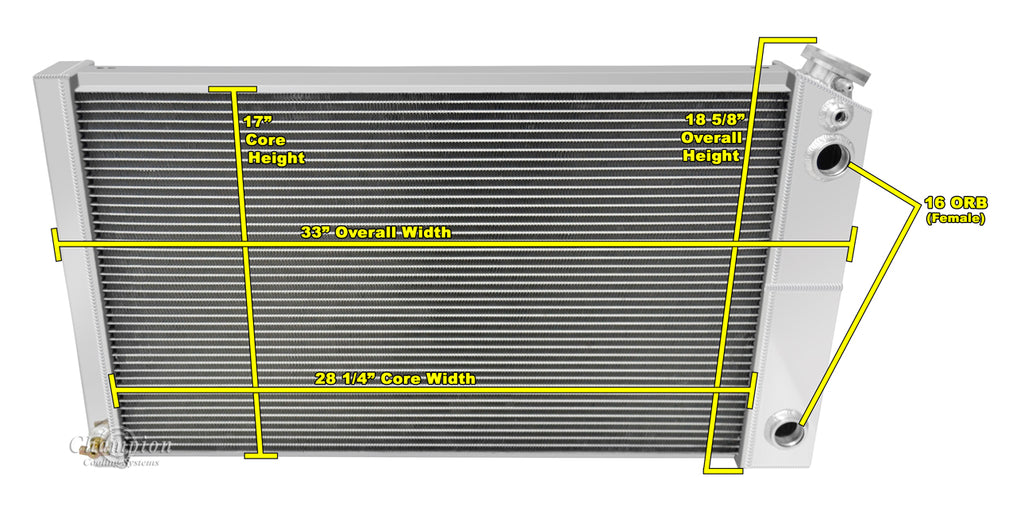

Radiator Dimensions:
Total: 18.63" tall (19" with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included

Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
Two 14" Electric fans recommended for this core size
