UN20-FD 3 Row Ford Configuration

Universal Ford Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp

NOTE: Typical to all Universal Radiators, drain petcocks are not included.

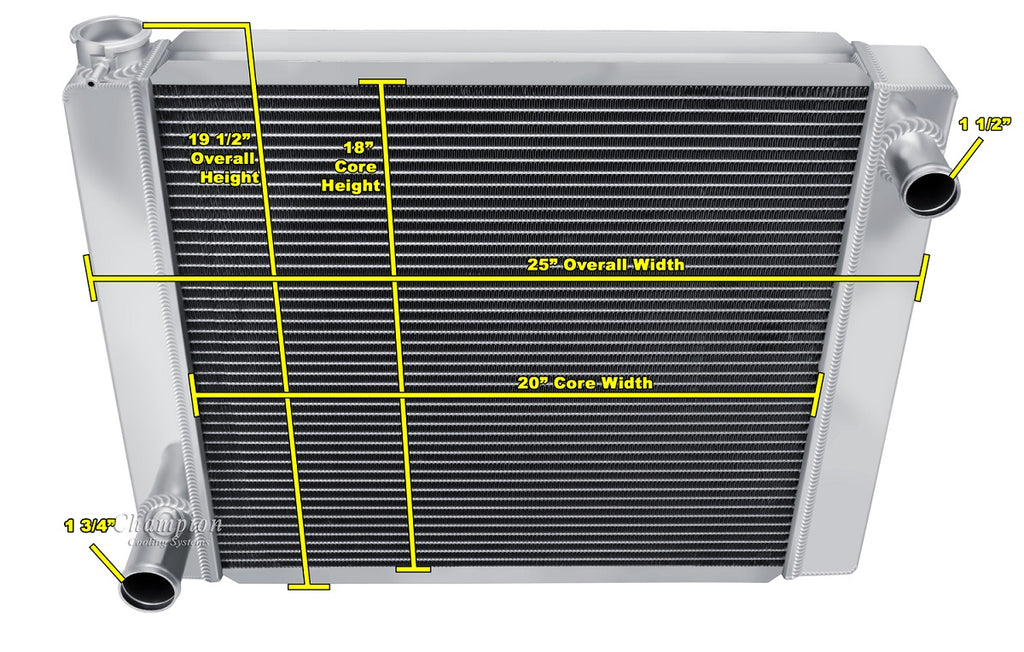

Radiator Dimensions:
Total: 19.5" tall x 25" wide
Core: 18" tall x 20" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
NO Transmission Cooler Included

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
Shroud for electric fan available
