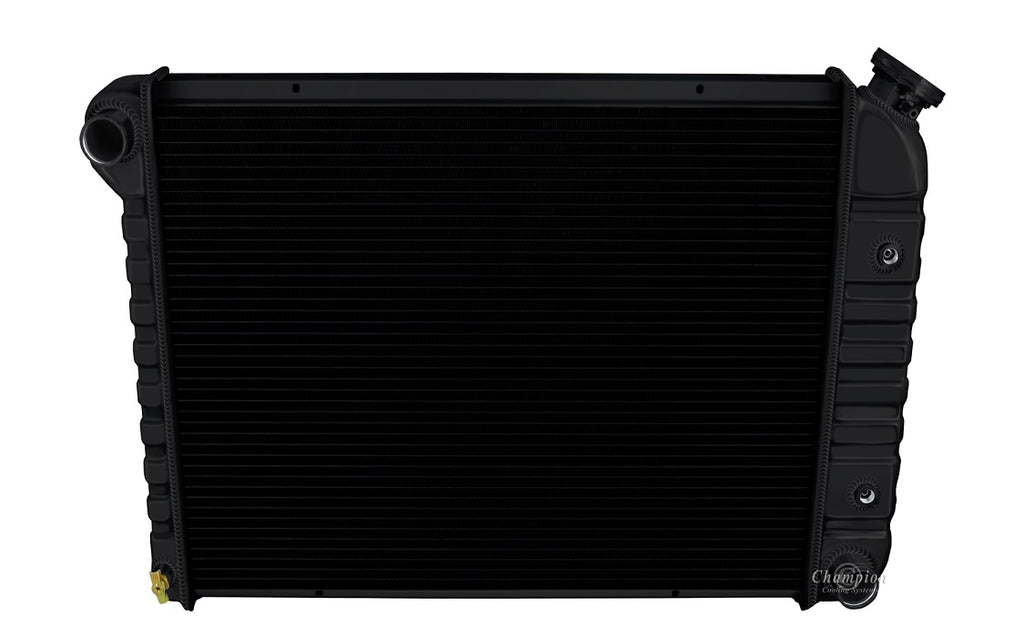

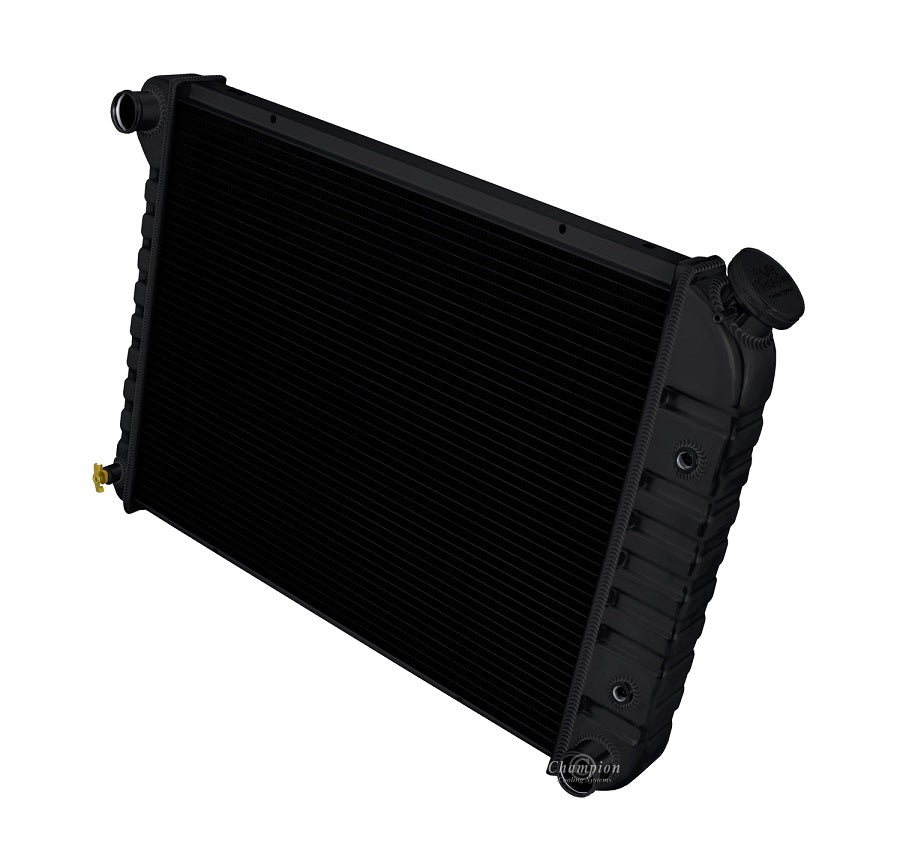

ST571-CC-BLK 3 Row Stamped Tanks

Champion All Aluminum Radiator
Stamped Tanks (Black)
3-Row Core | Cools up to 500hp

Radiator Dimensions:
Total: 18.5" tall (19" with cap) x 27" wide
Core: 17" tall x 20.75" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
