ST162-CC 3 Row Stamped Tanks

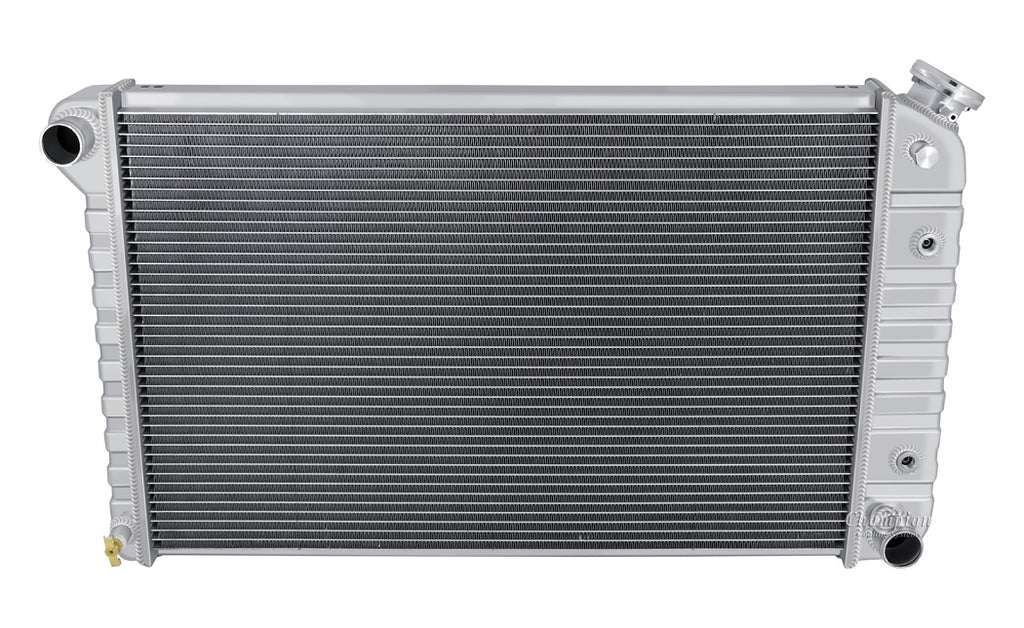

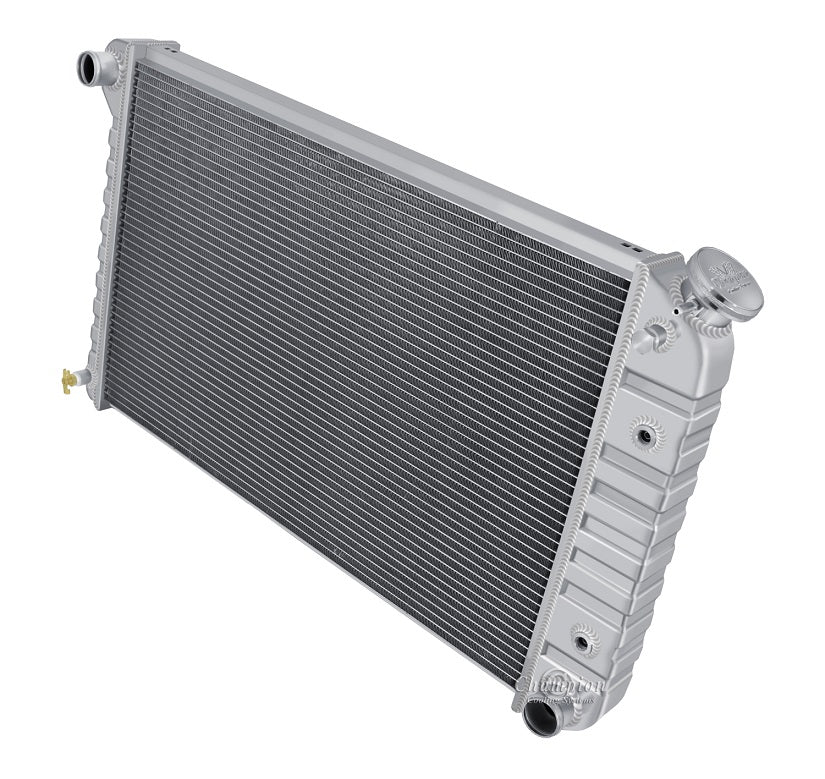

Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp

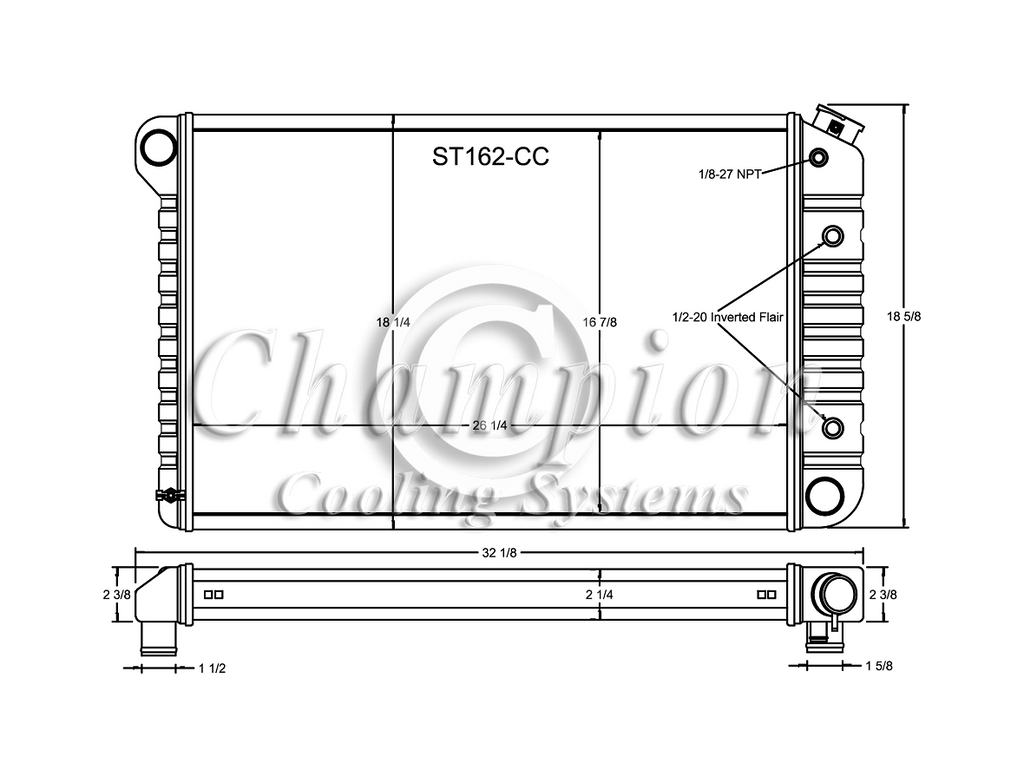

Radiator Dimensions
Total: 18.25" tall (19" with cap) x 31.63" wide x 2.5" deep
Core: 17" tall x 26.25" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Fan Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
Fan shipping is FREE when purchased with a radiator
