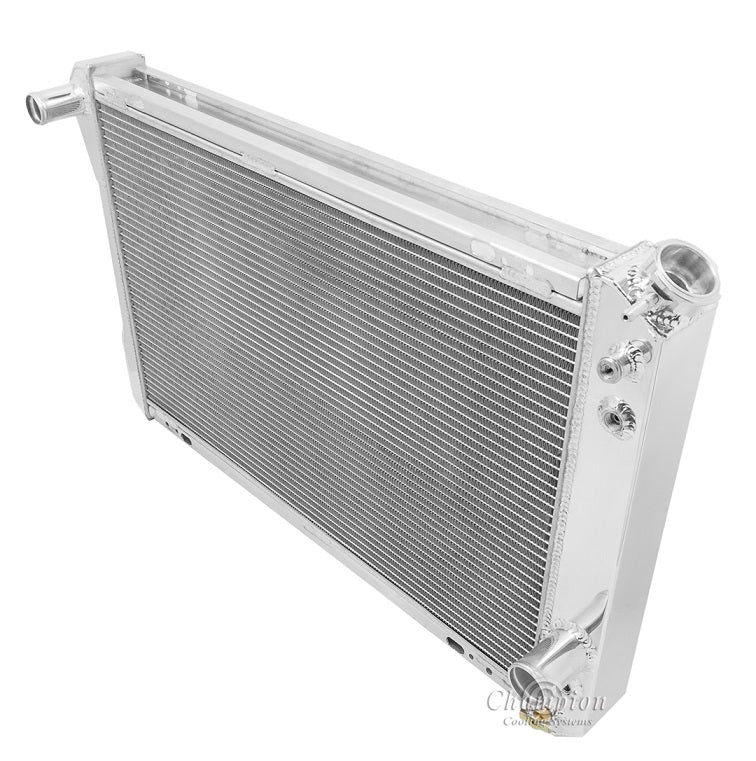

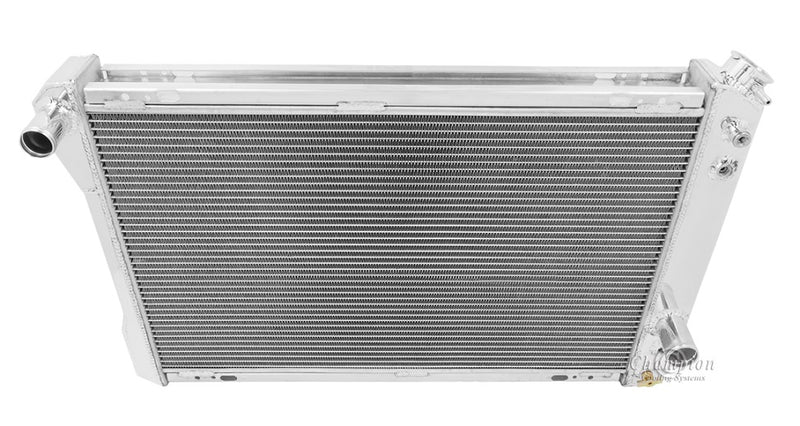

MC951 4 Row

Champion All Aluminum Radiator
4-Row Core (2.8" thick) Polished Tanks | Cools up to 850hp

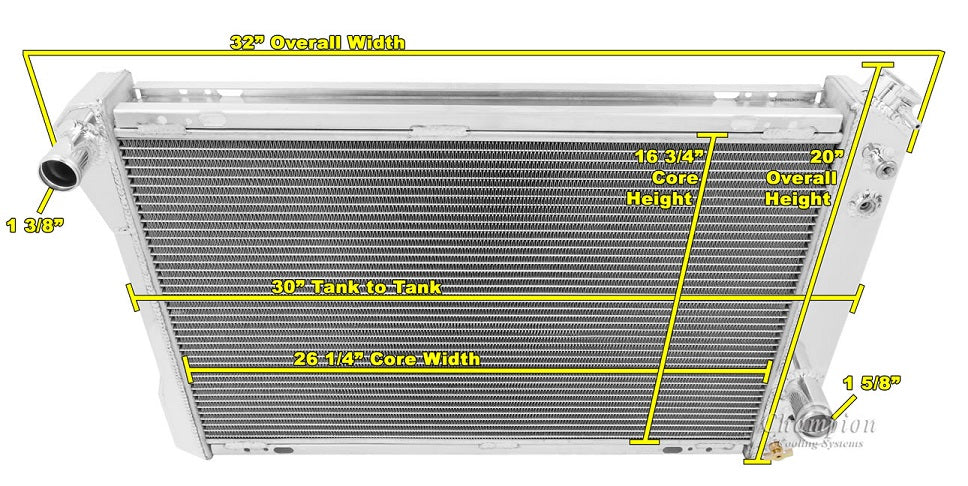

MC951 Radiator Dimensions:
Total: 20" tall x 32" wide
Core: 17.25" tall x 26.25" wide x 2.75" thick
Inlet: 1.38" driver side
Outlet: 1.63" pass side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud for a 16" fan is also Available (sold separately)

When using electric fans:
One 16" or Two 12" Electric fans recommended for this core size (sold separately)
