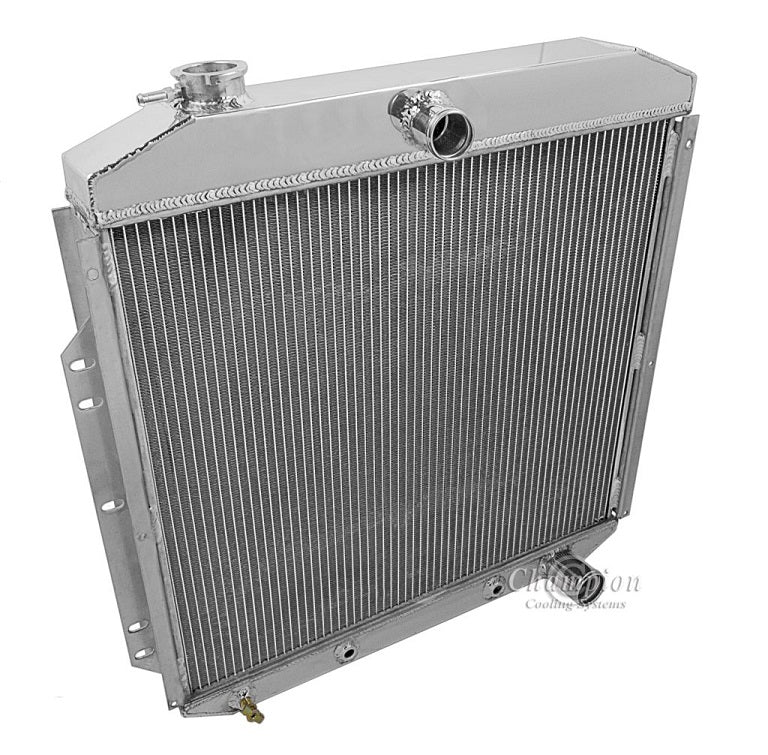

MC8356-8356FS16 4 Row Combo

All Aluminum Champion Radiator PLUS

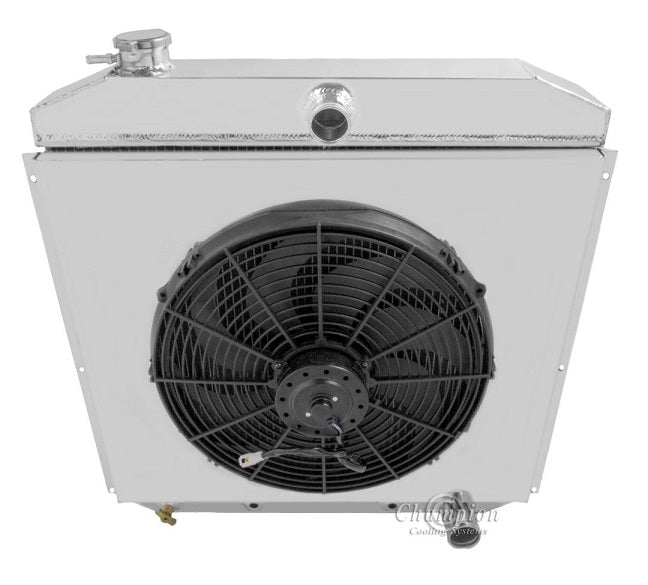

Ledfoot Racing Aluminum Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor
4-Row Core | Cools up to 750hp

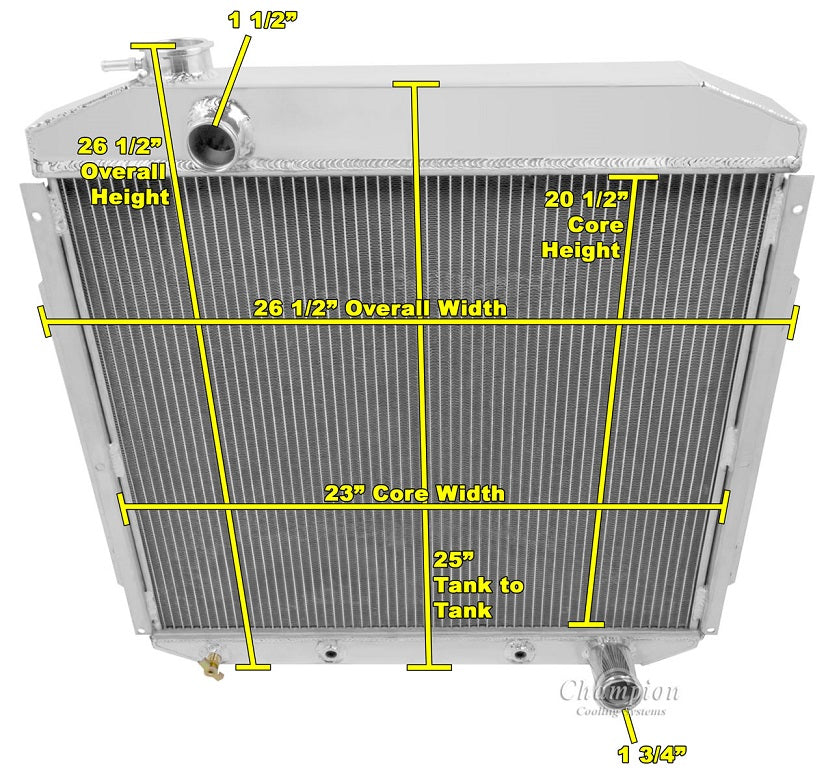

Radiator Dimensions:
Total: 26.5" tall (with cap) x 26.5" wide (including brackets)
Core: 20.25" tall x 23" wide x 2.75" thick
Tanks: 3.25" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap included
Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
