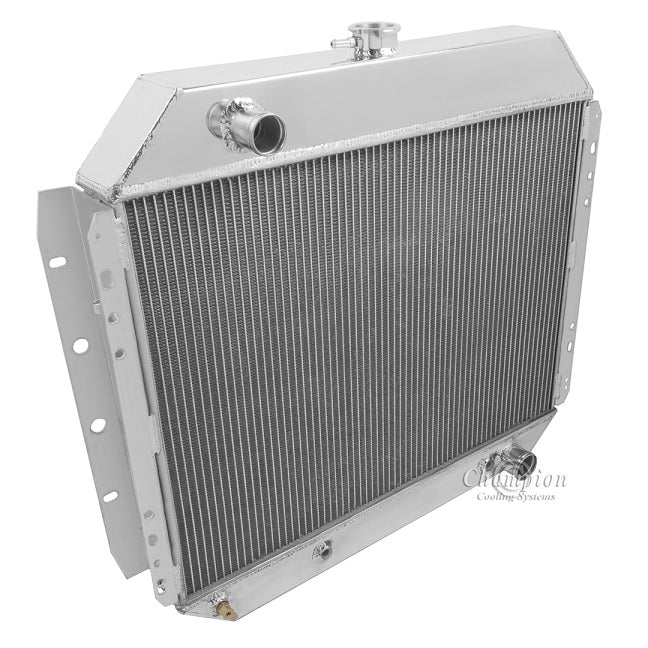

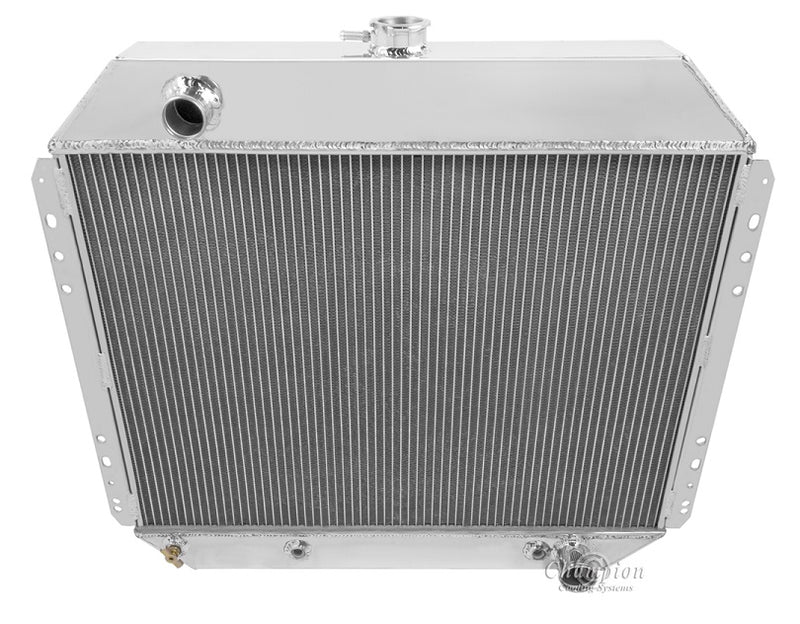

MC833 4 Row

Champion All Aluminum Radiator
Chevy V8 Conversions
4-Row Core | Cools up to 750hp

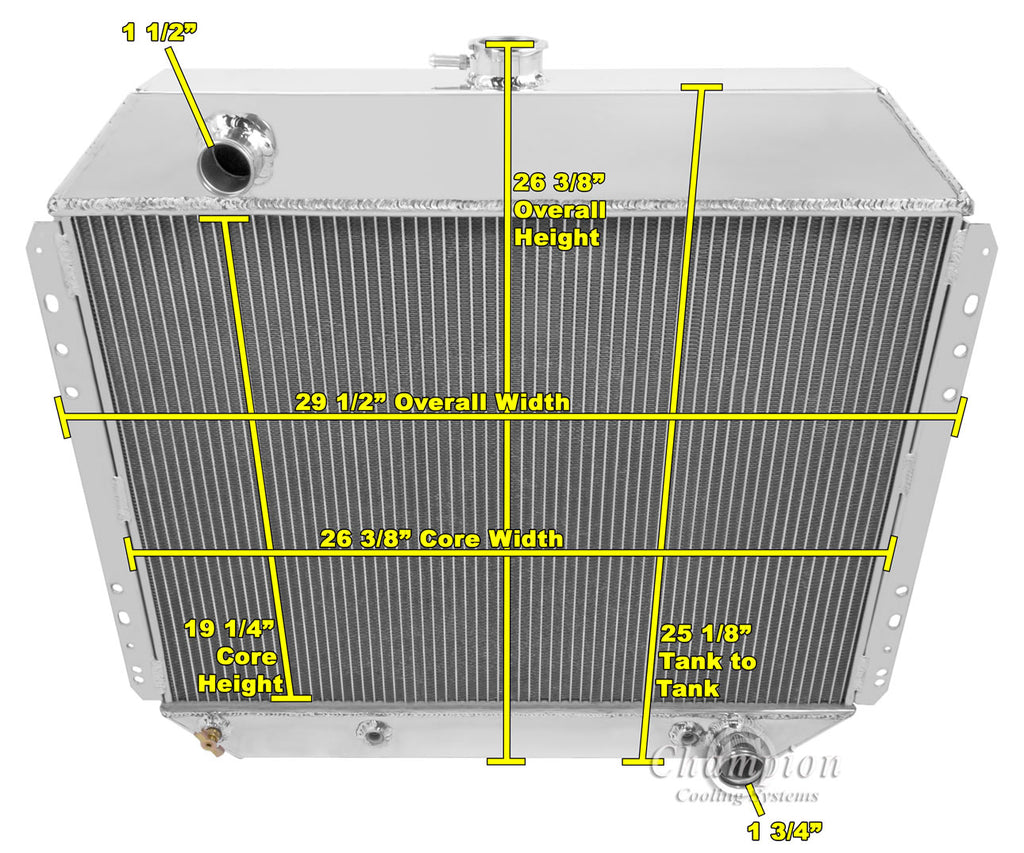

Radiator Dimensions:
Total: 25" tall (26.38" with cap) x 29" wide (including brackets)
Core: 18.75" tall x 26" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler Included (1/2" 20 STRAIGHT THREAD)
Aluminum Shroud is also available (sold separately)

When using electric fans:
Two 12" Electric fans recommended for this core size (sold separately)
