MC8102 4 Row

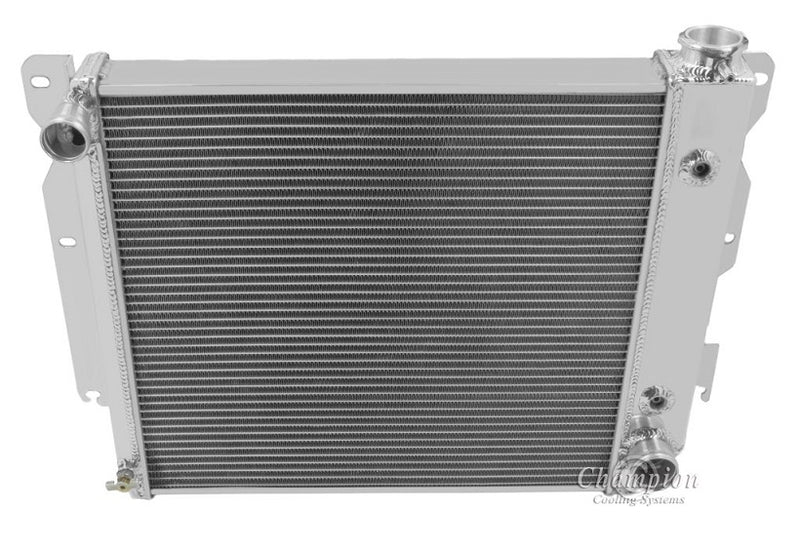

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

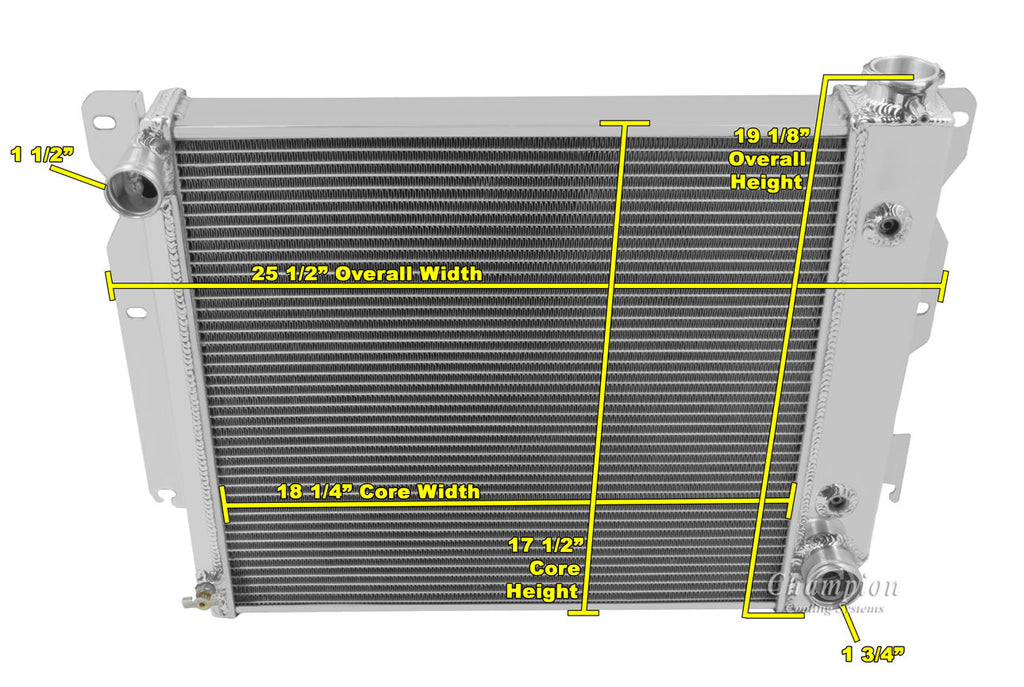

Radiator Dimensions:
Total: 19.1" tall (with cap) x 25.5" wide (with brackets) x 3" thick
Core: 17.5" tall x 18.25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/2"-20 straight thread)
