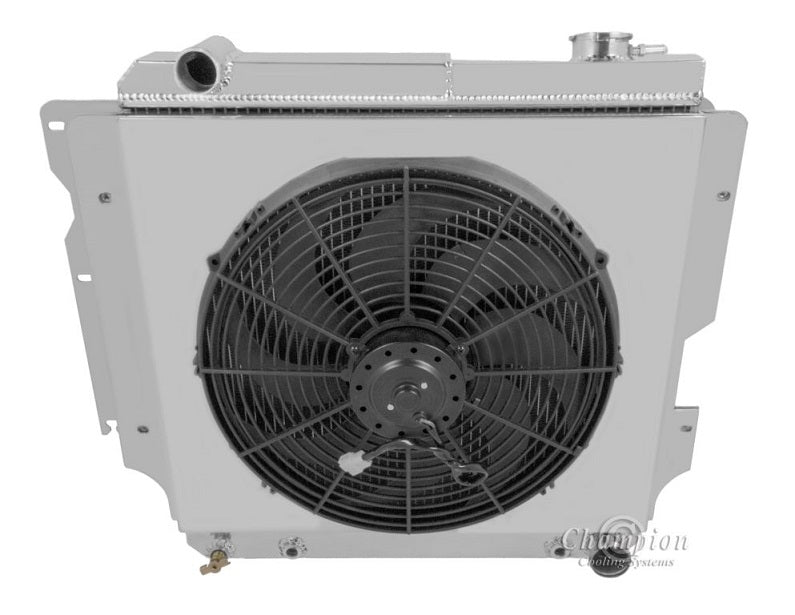

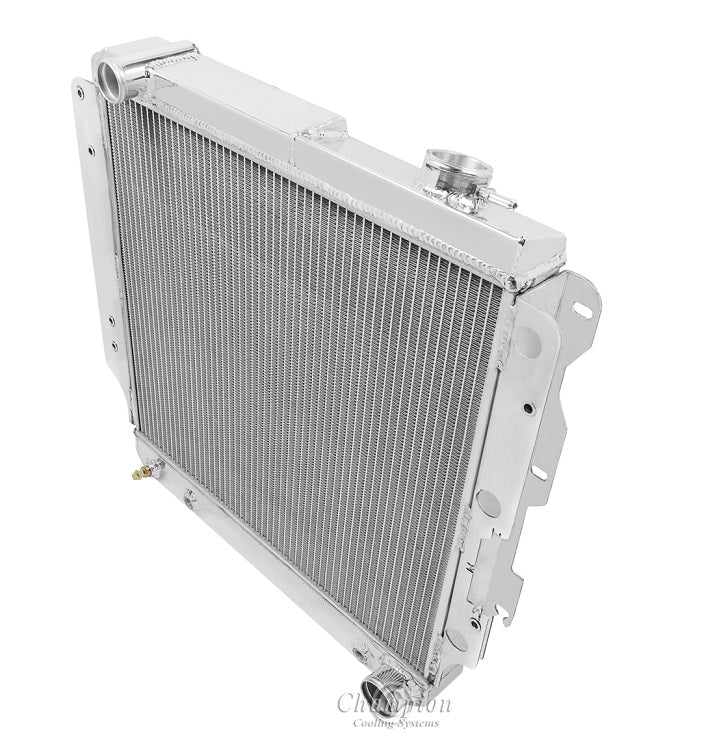

MC8101-8101FS16 4 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor
4-Row Core | Cools up to 650hp
(For Chevy and Mopar V8 Conversions)

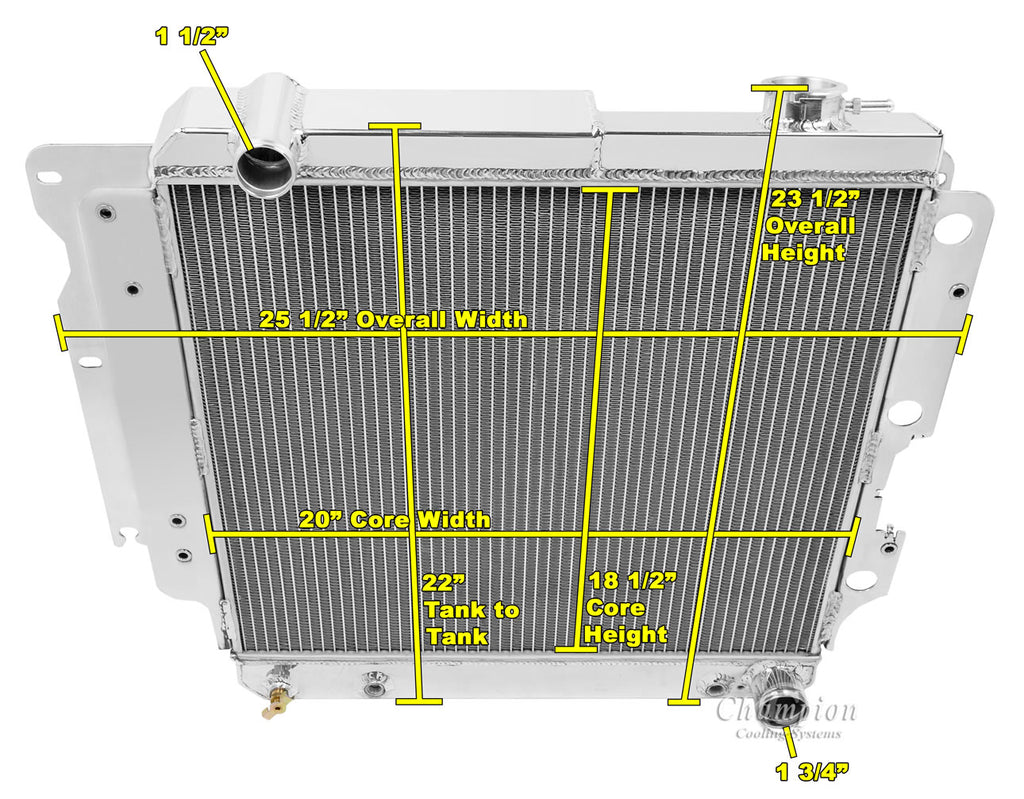

Radiator Dimensions:
Total: 23.38" tall x 25.75" wide (with brackets)
Core: 20" wide x 18.5" tall x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

13 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
