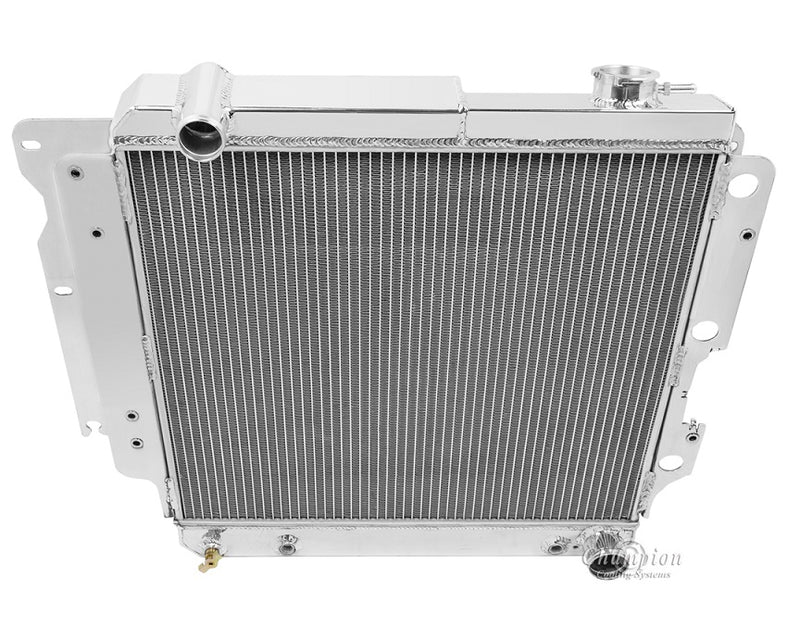

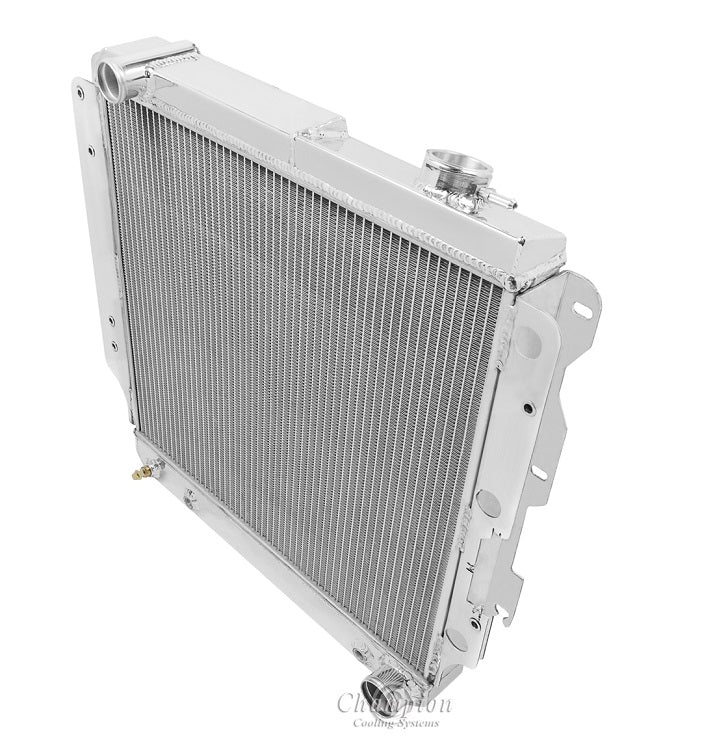

MC8101 4 Row

Champion Aluminum Radiator
4-Row Core | Cools up to 650hp
(For Chevy and Mopar V8 Conversions)

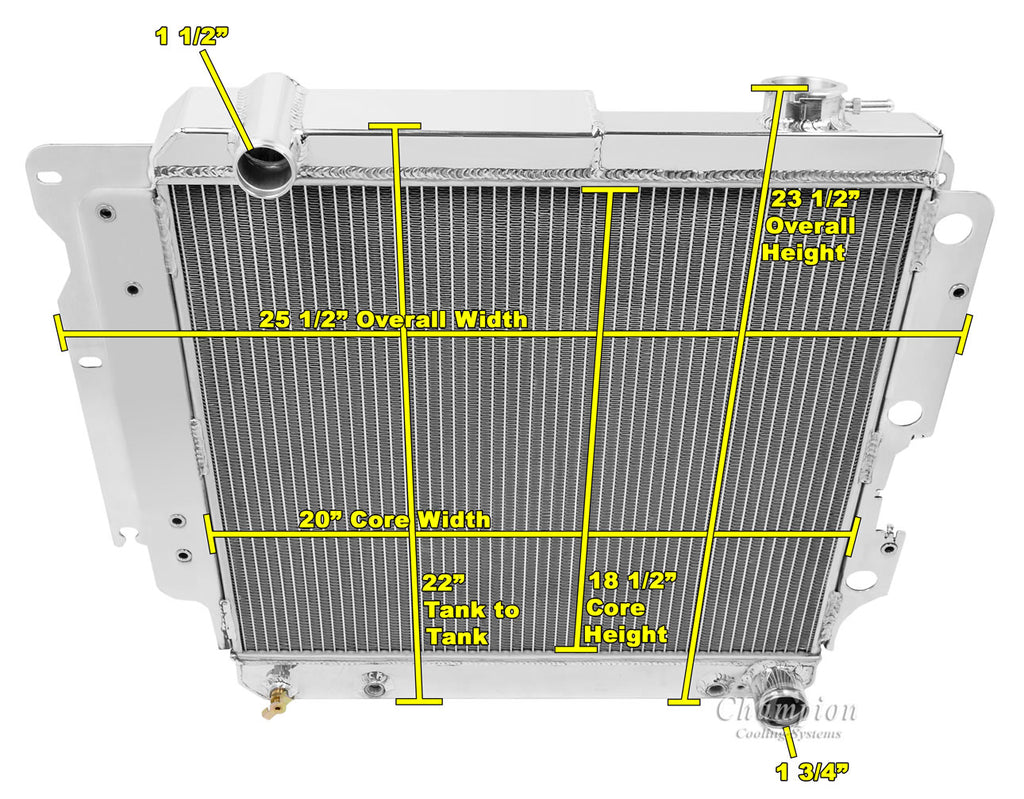

Radiator Dimensions:
Total: 25.75" wide (including brackets) x 23.38" tall
Core: 20" wide x 18.5" tall x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75” passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

13lb Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
