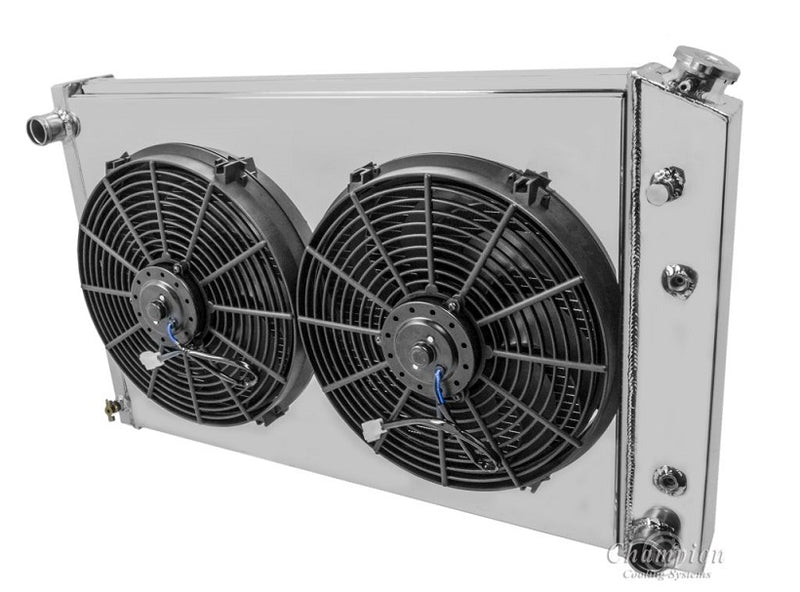

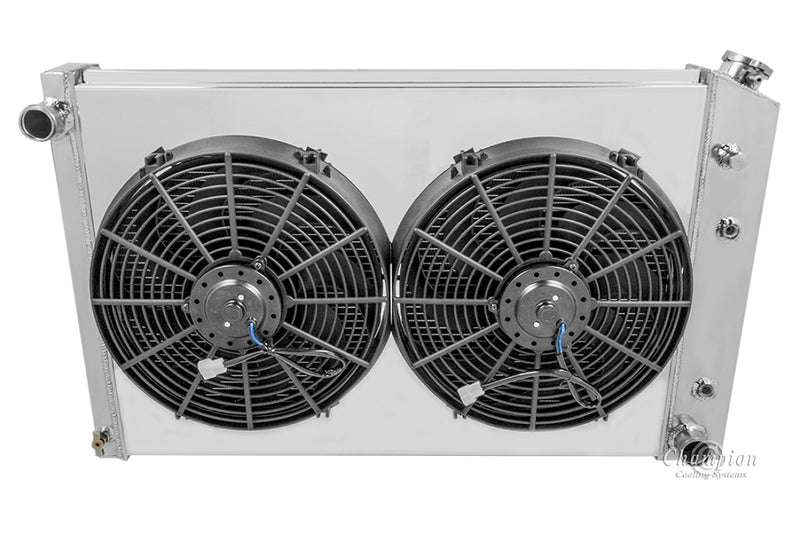

MC716-716FS14 4 Row Combo 19" Tall Core

Champion All Aluminum Radiator PLUS
Aluminum Shroud & Two 14" Pro-Series Fans
Verify clearance for electric fan
Total thickness: 7" to fan motor
4 Row Core: Polished Tanks | Cools 1000hp

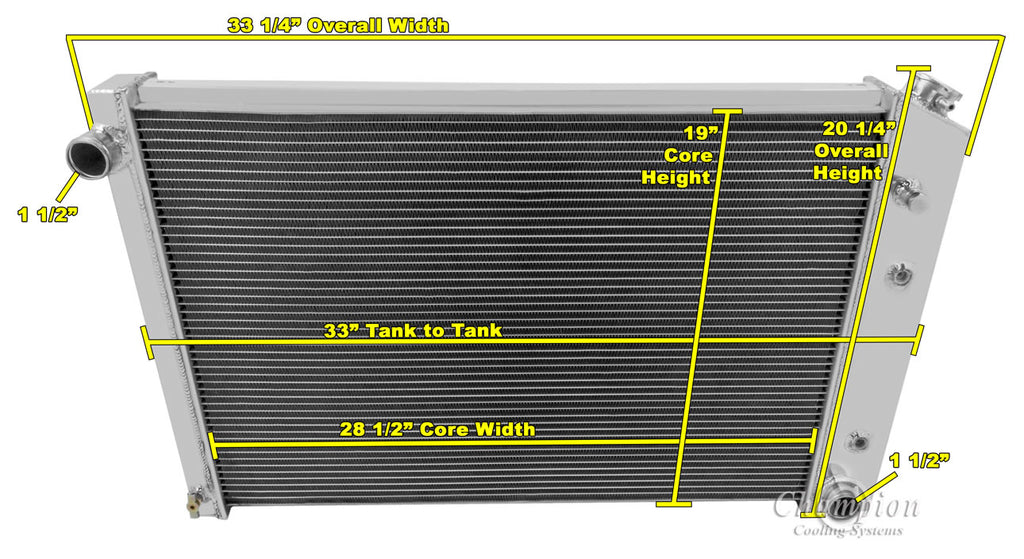

MC716 Radiator Dimensions:
Total: 20.5" tall (21.13 with cap) x 33.25" wide
Core: 19" tall x 28.25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)

5.25" thick in the center around the edge of the fans.
