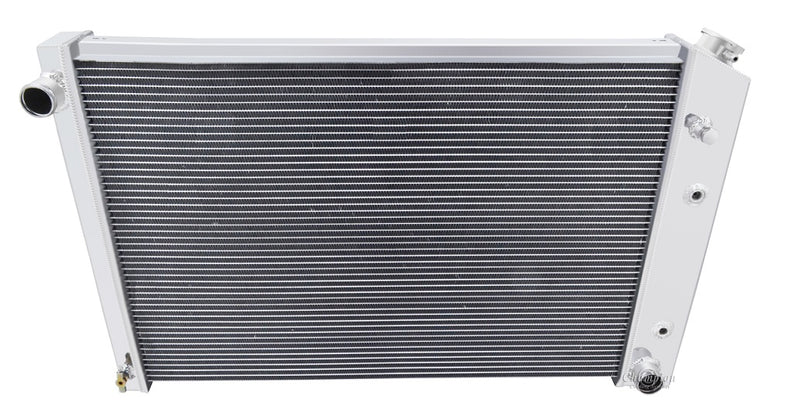

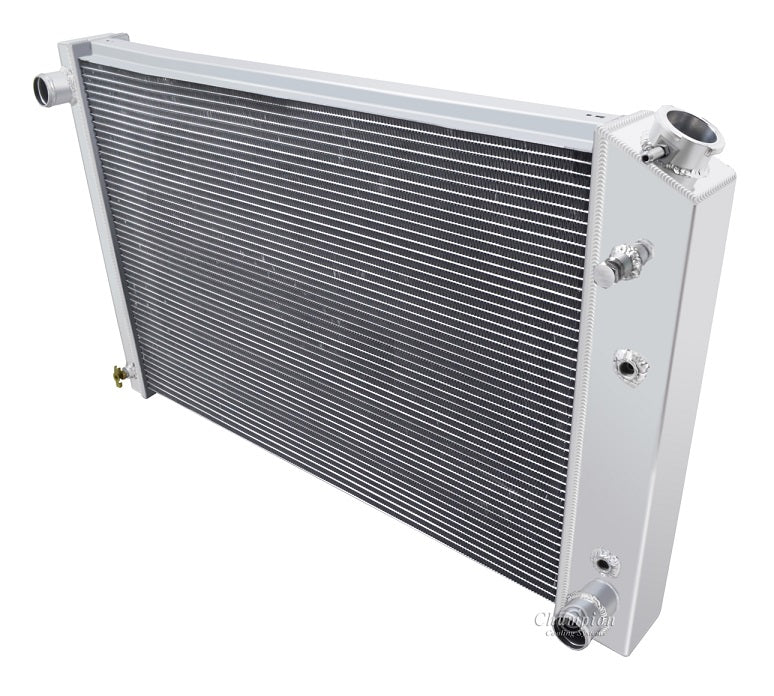

MC716 4 Row 19" Tall Core

Champion All Aluminum Radiator
4-Row Core | Cools up to 1000hp

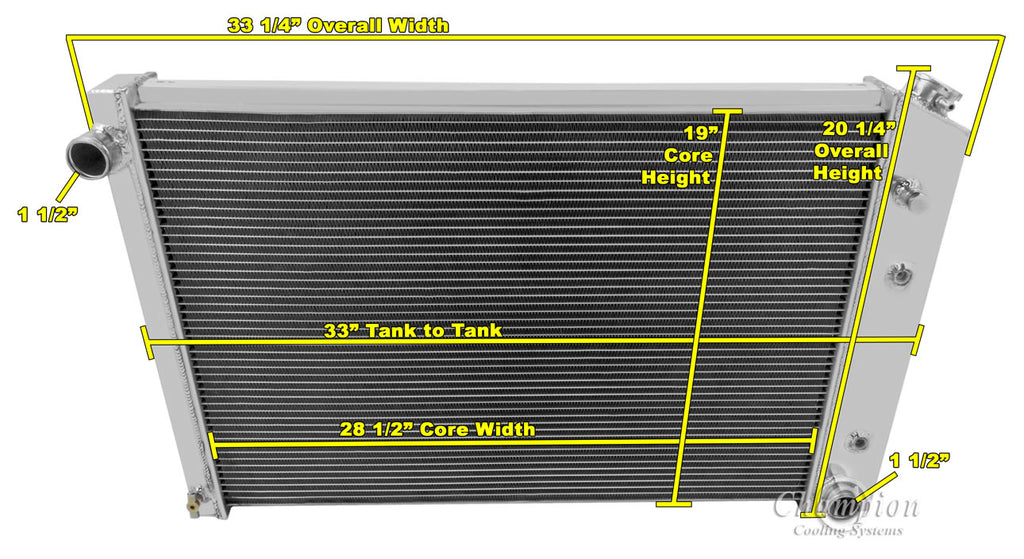

MC716 Radiator Dimensions:
Total: 20.5" tall (21.13 with cap) x 33.25" wide
Core: 19" tall x 28.25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2"- 20 STRAIGHT THREAD)
Aluminum shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 14" Electric fans recommended for this core size
