MC7072-7072FS10SP 4 Row Combo

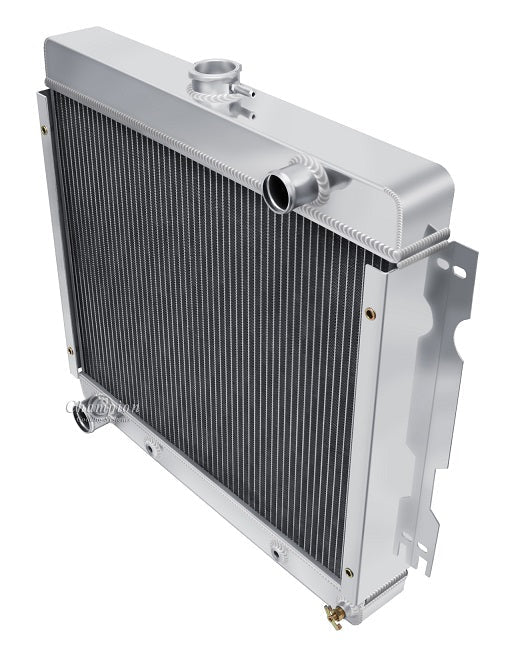

Champion All Aluminum Radiator

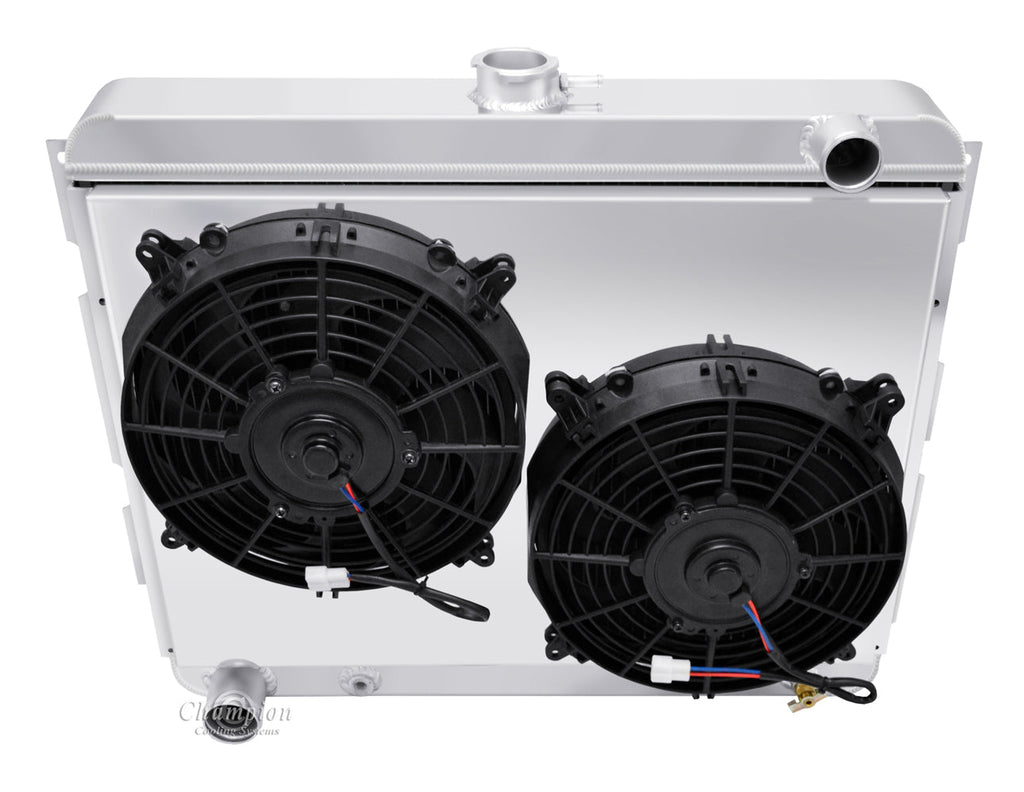

Plus Ledfoot Racing Aluminum Shroud & 2-10" SPAL Fans
4-Row Core | Cools up to 600hp

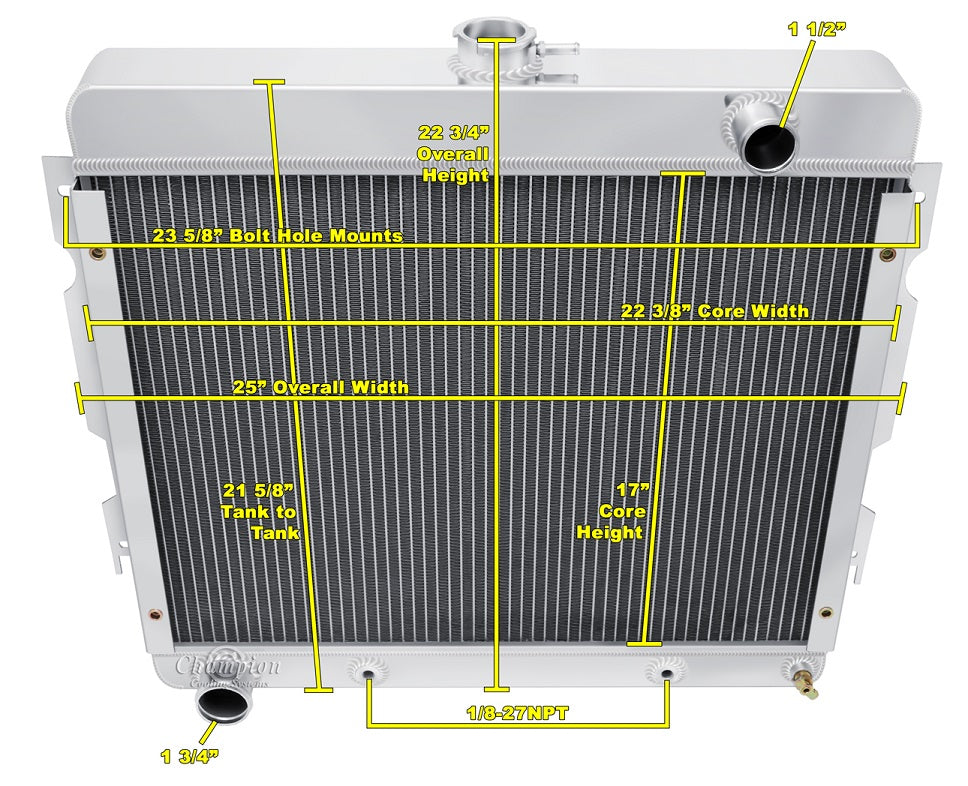

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 5.5" Between Fans, 6.25" to back of fans

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included: (1/8-27NPT)
