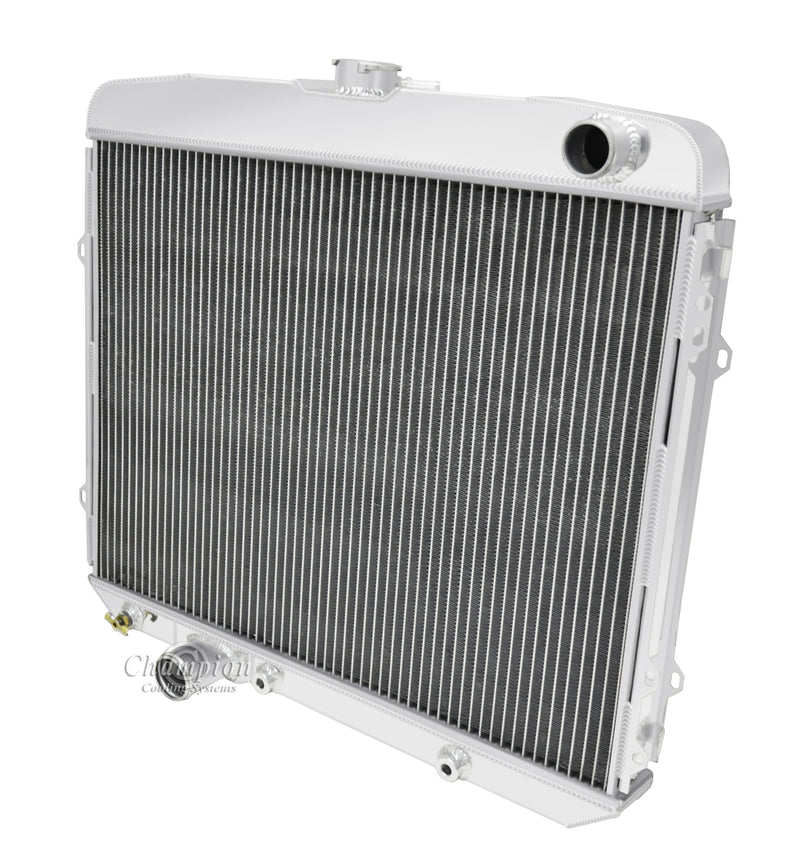

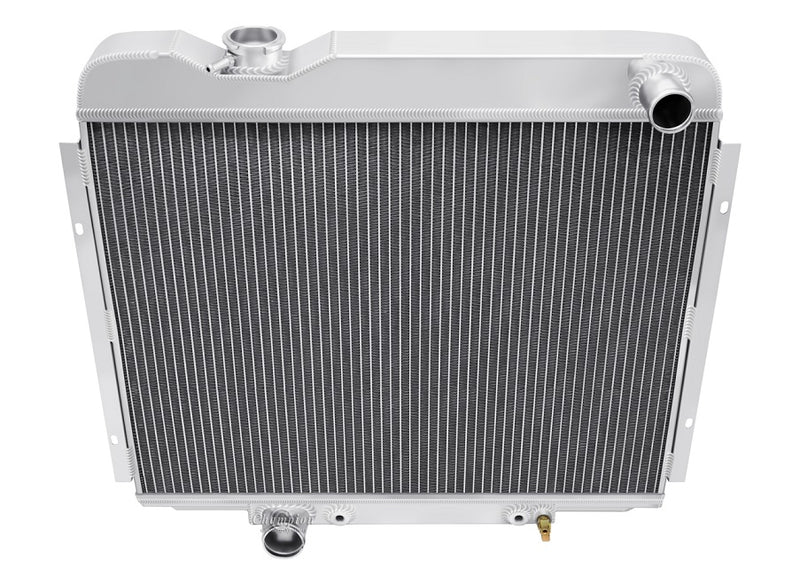

MC65GL 4 Row

Champion All Aluminum Radiator
4-Row Core | Cools up to 750hp

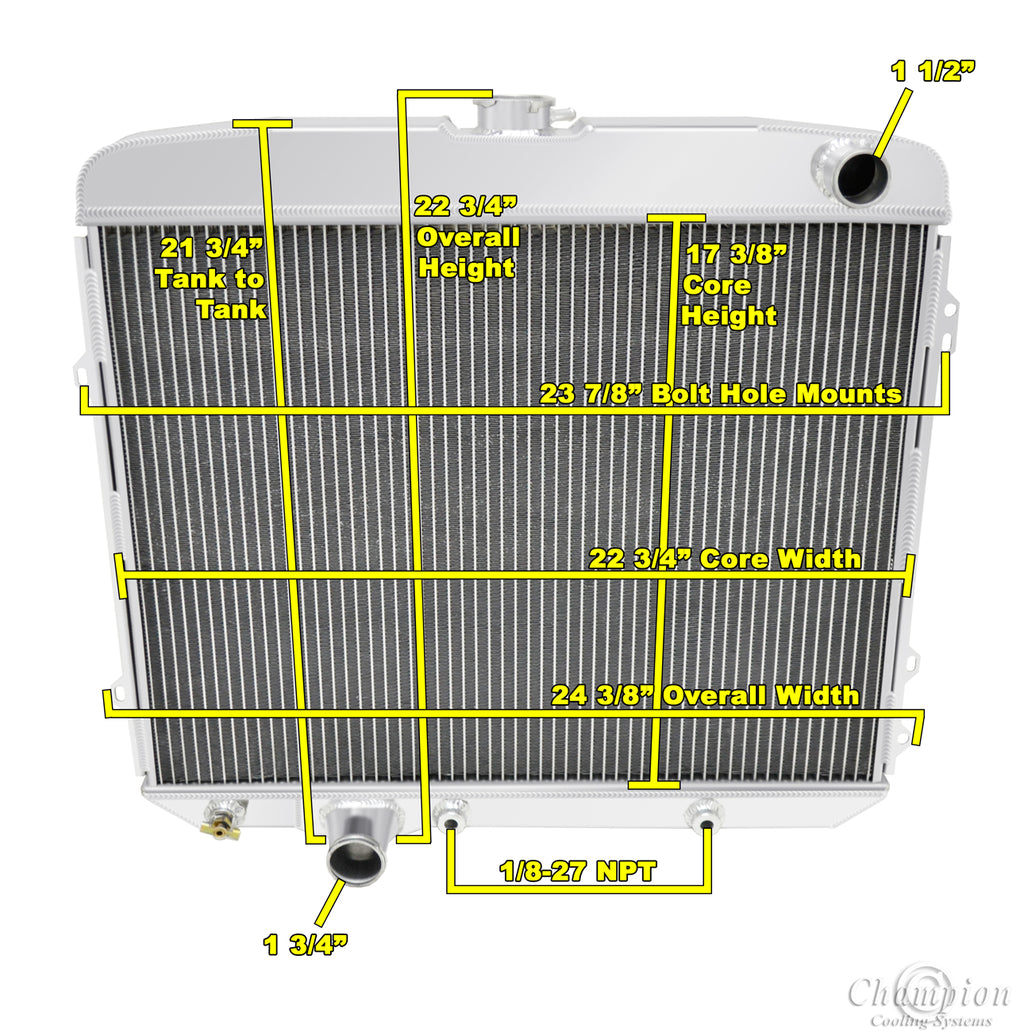

Radiator Dimensions:
Total: 22.13" x 24.25" wide
Core: 17.375" tall x 22.75" wide x 2.75" thick
Inlet: 1.5" passenger
Outlet: 1.75" driver
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
