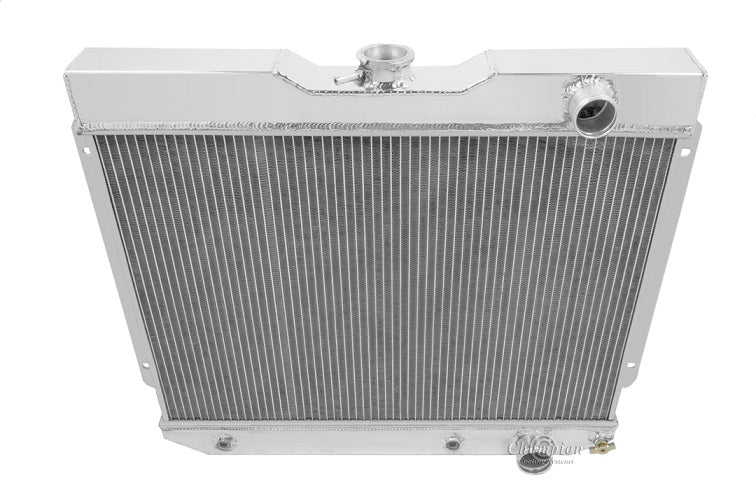

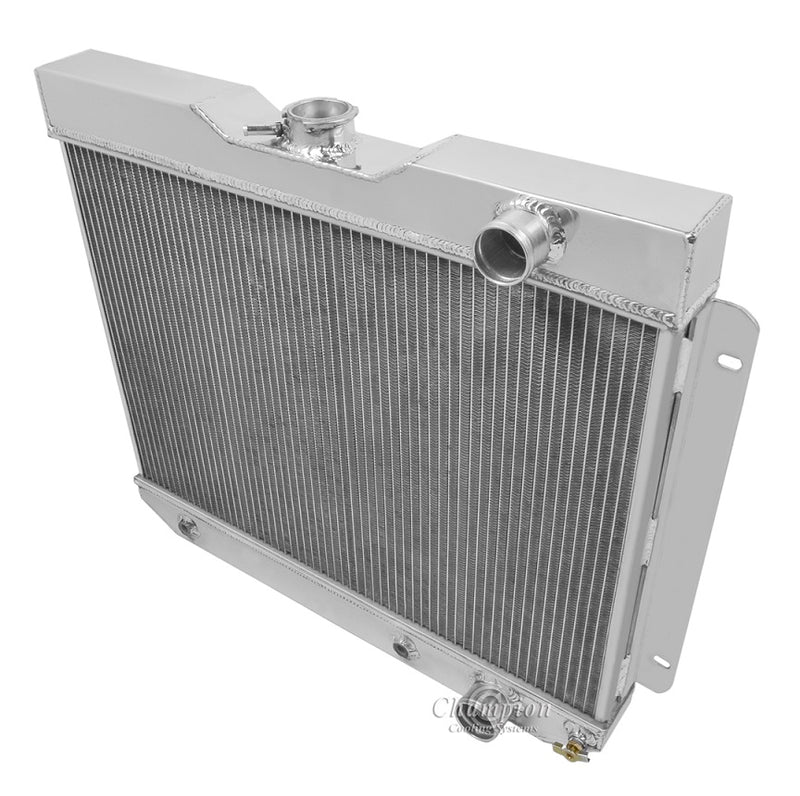

MC65BA 4 Row 23" Wide Core

Champion All Aluminum Radiator
4-Row Core | Cools up to 650hp

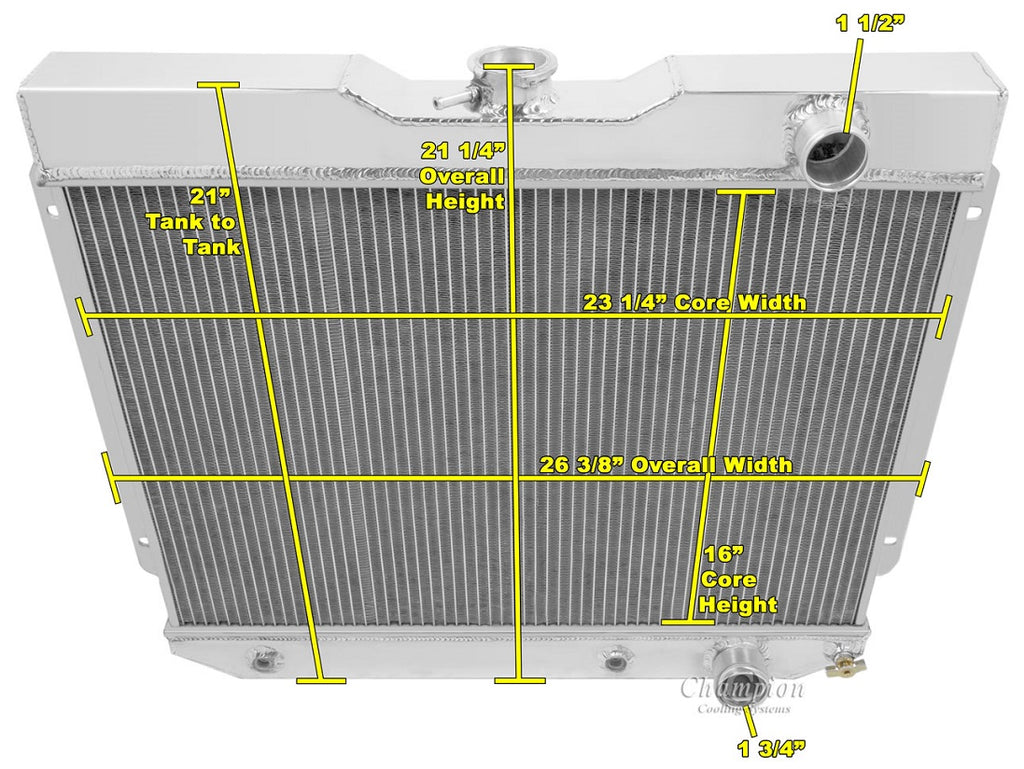

Radiator Dimensions:
Total: 21.5" tall (with cap) x 26.25" (including brackets)
Core: 16.25" tall x 23.25" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.75" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare )

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
