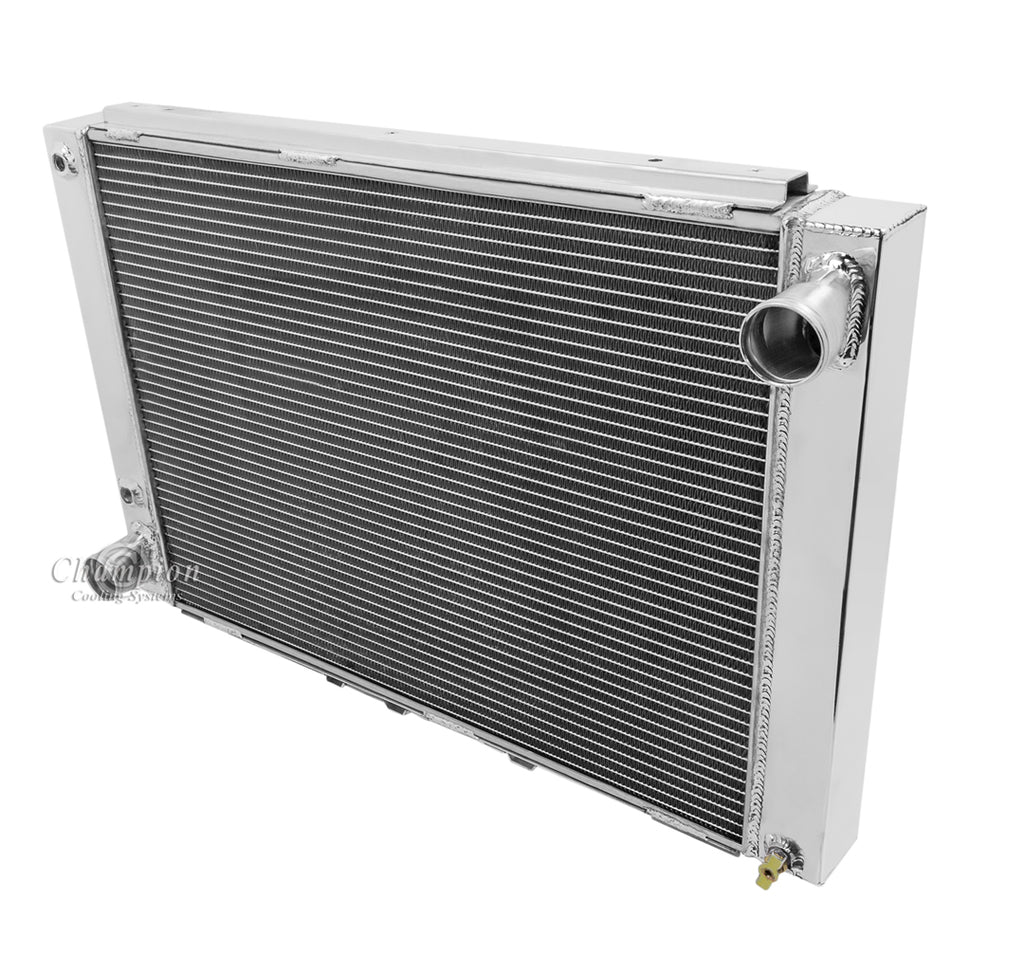

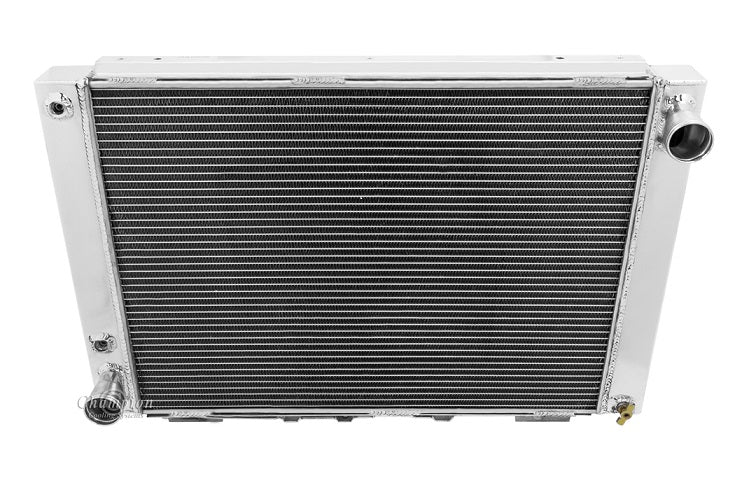

MC64TB 4 Row

Champion All Aluminum Radiator
4-Row Core; For the FE Engines | Cools up to 700hp
Note: There were two radiators for the 1966 T-Bird
please check your core size and top plate

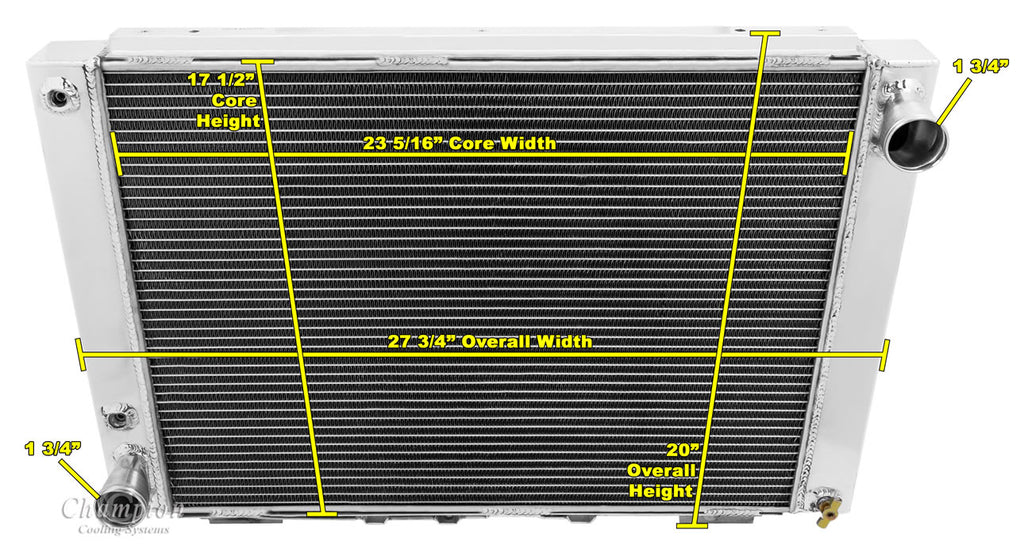

Radiator Dimensions:
Total: 21" x 27.75" wide
Core: 17.5" tall x 23.25" wide x 2.75" thick
Inlet: 1.75" passenger
Outlet: 1.75" driver
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler included (1/4" npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
