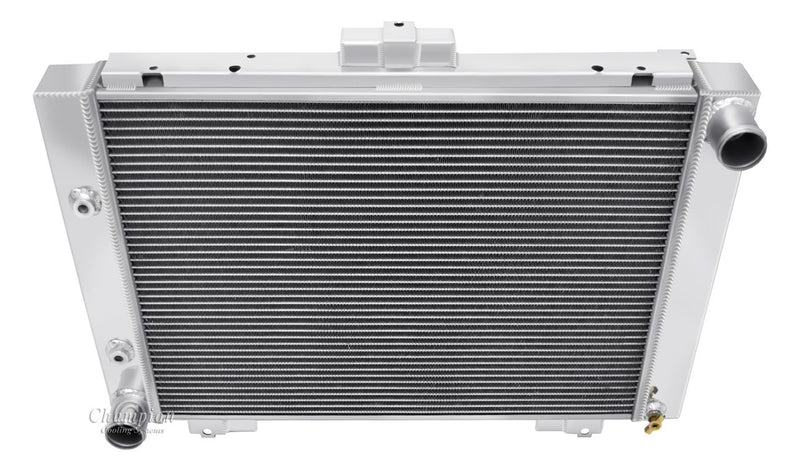

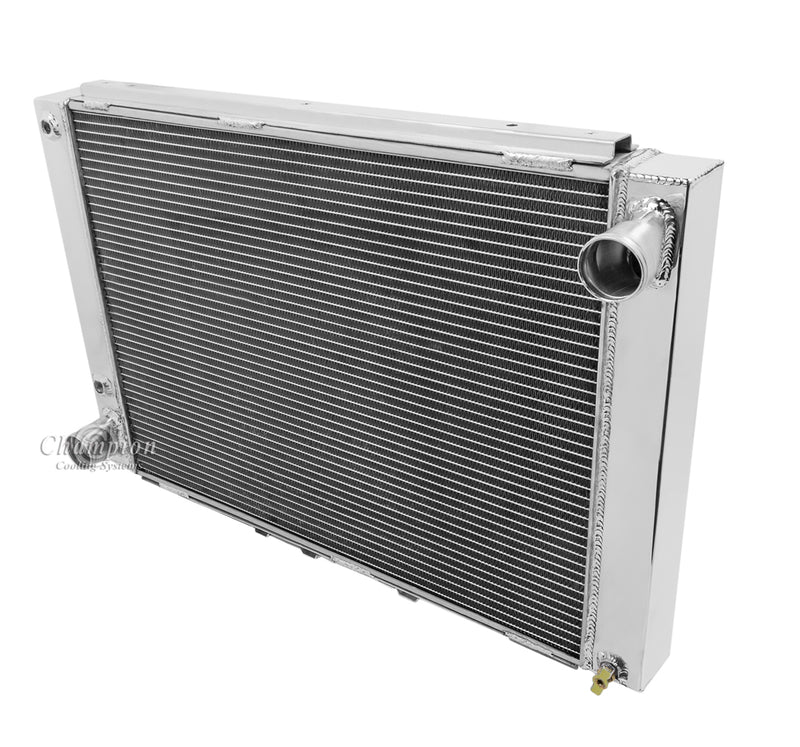

MC64GL 4 Row

Champion All Aluminum Radiator
4-Row Core; For the 390FE | Cools up to 800hp

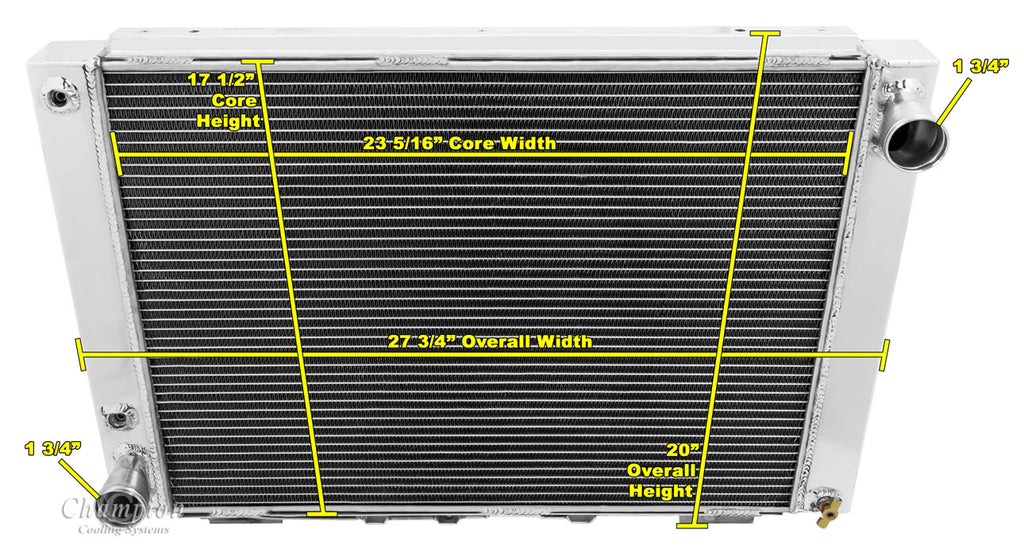

Radiator Dimensions:
Total: 21" x 27" wide
Core: 17.25" tall x 22.5" wide x 2.75" thick
Inlet: 1.75" passenger
Outlet: 1.75" driver
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler included (1/8" 27npt)

When using electric fans:
One 16" fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
