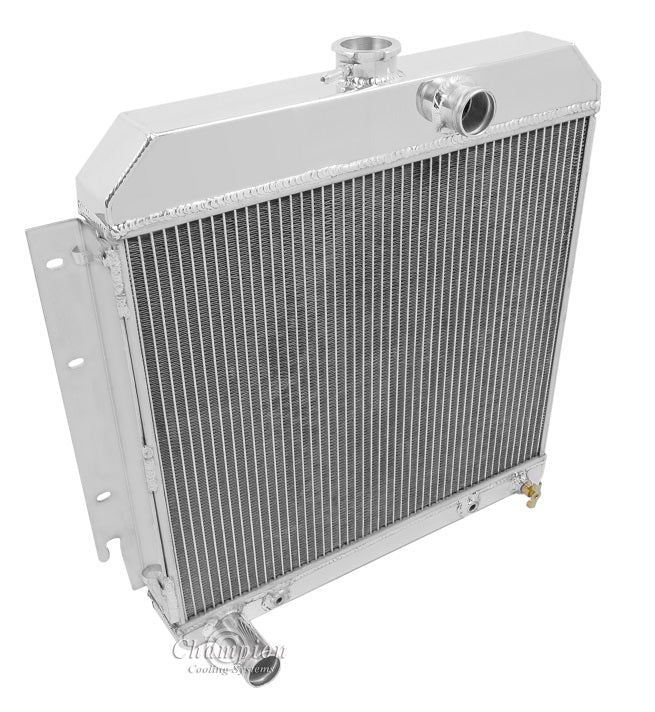

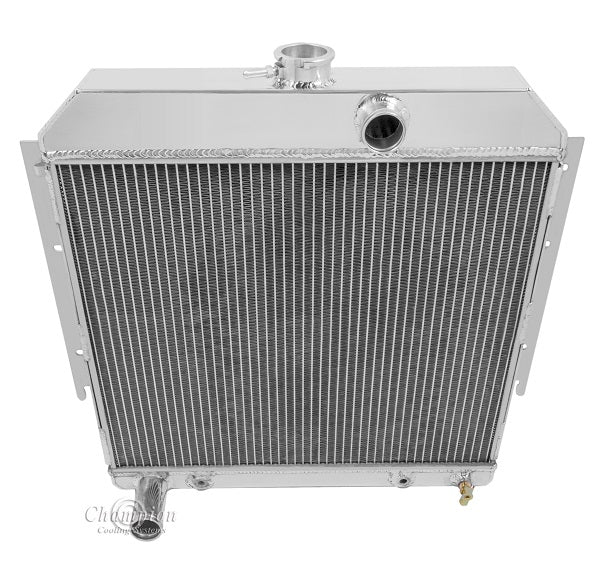

MC64DT 4 Row

All Aluminum Champion Radiator
4-Row Core | Cools up to 650hp

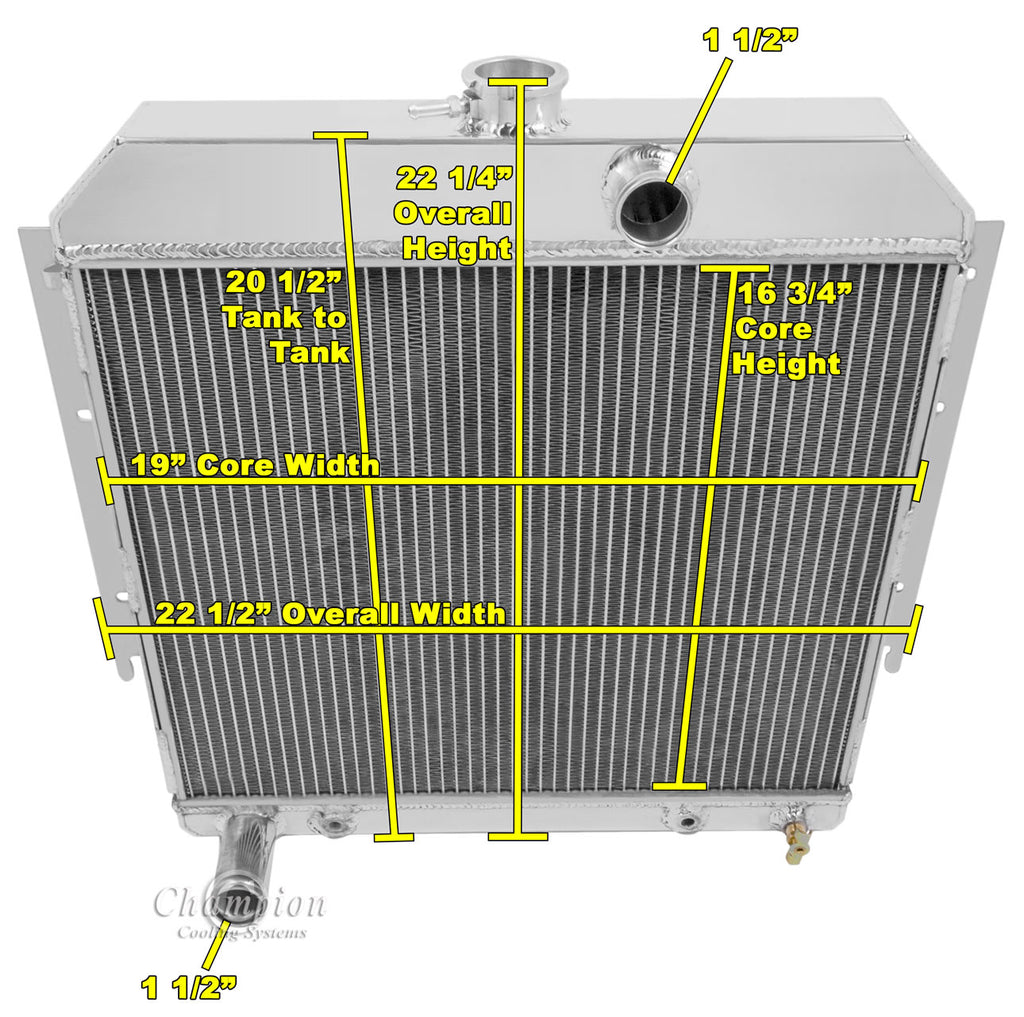

CC64DT Radiator Dimensions:
Total: 22.25" tall (with cap) x 22.5" wide (with brackets)
Core: 18.25" tall x 19" wide x 2.75" thick
Inlet: 1.5" passenger side off-center
Outlet: 1.5" driver
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8" 27npt)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
