Description

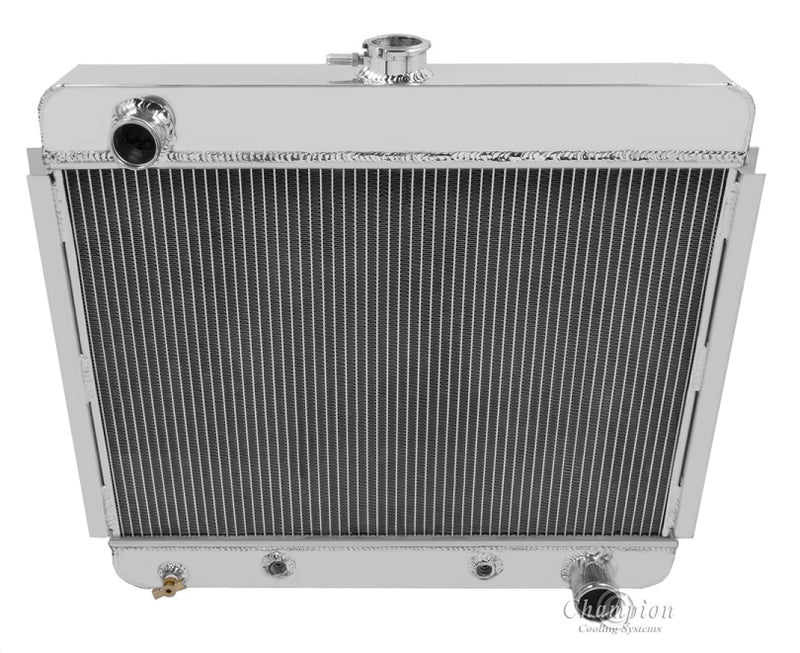

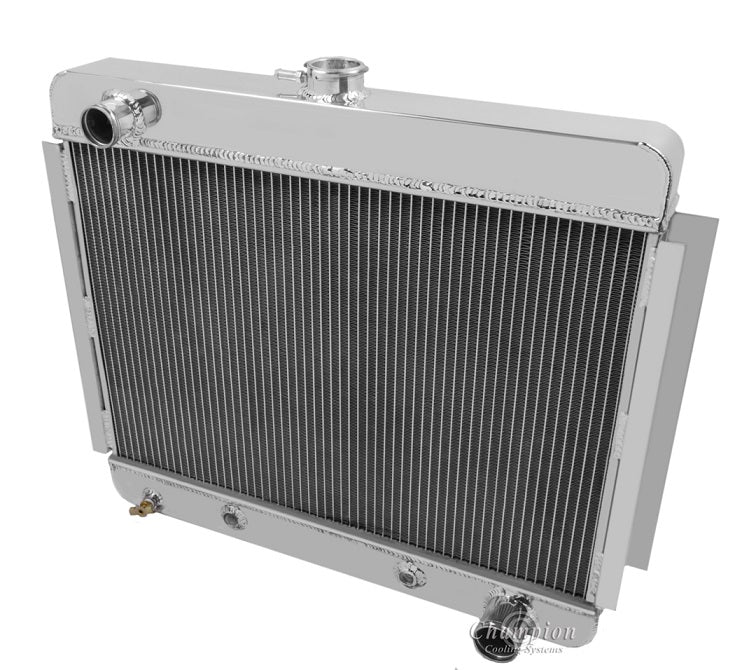

Champion All Aluminum Radiator
4-Row Core | Cools up to 650hp

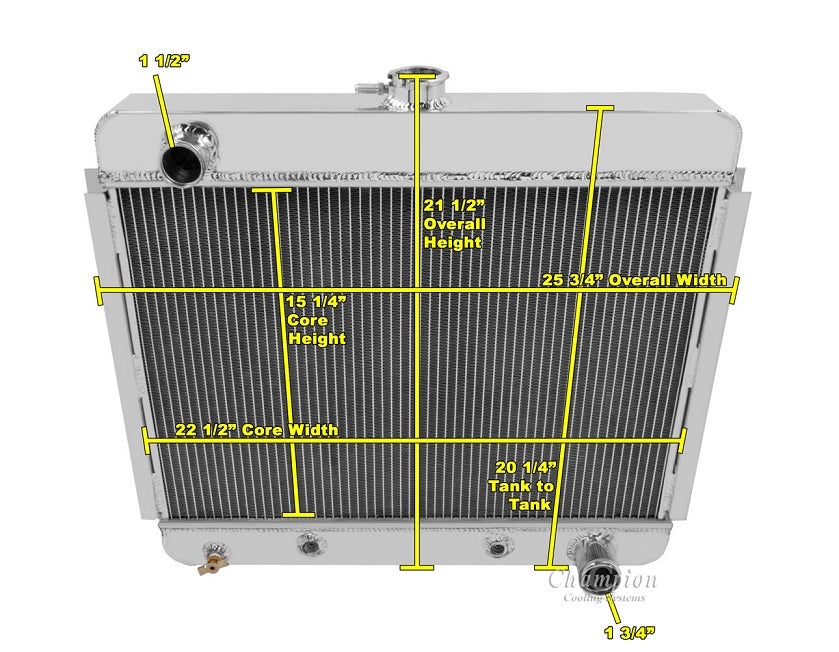

MC6267 Radiator Dimensions:
Total: 21.25" tall (with cap) x 25.5" wide (including brackets)
Core: 15.25" tall x 22" wide x 2.75" thick
Inlet: : 1.5" Driver side
Outlet: 1.75” Passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Bracket Mounted
13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
4-Row Core | Cools up to 650hp
MC6267 Radiator Dimensions:
Total: 21.25" tall (with cap) x 25.5" wide (including brackets)
Core: 15.25" tall x 22" wide x 2.75" thick
Inlet: : 1.5" Driver side
Outlet: 1.75” Passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Bracket Mounted
13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Custom shroud for electric fan(s) available upon request:
LIFETIME WARRANTY
