MC6164 4 Row

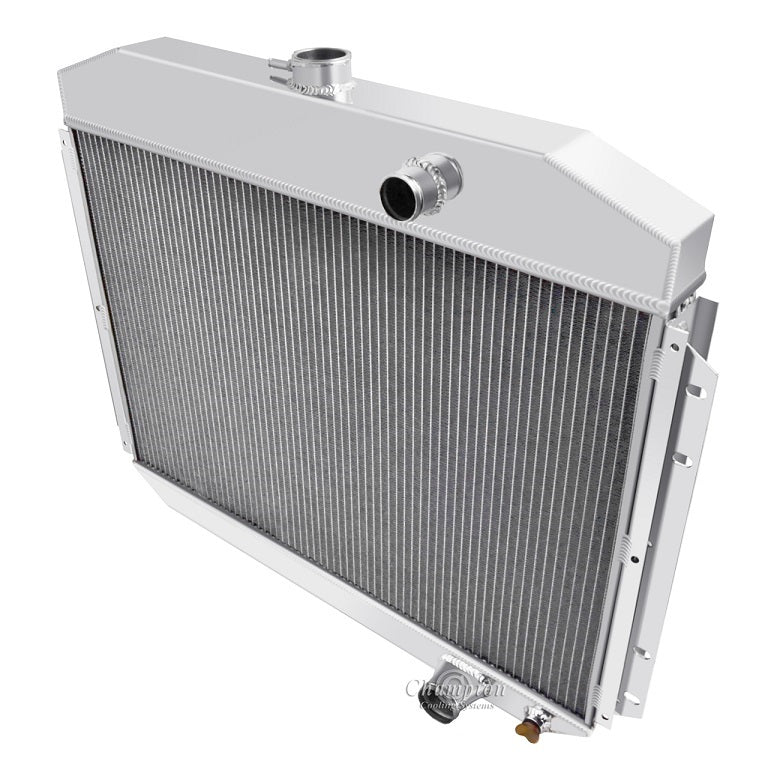

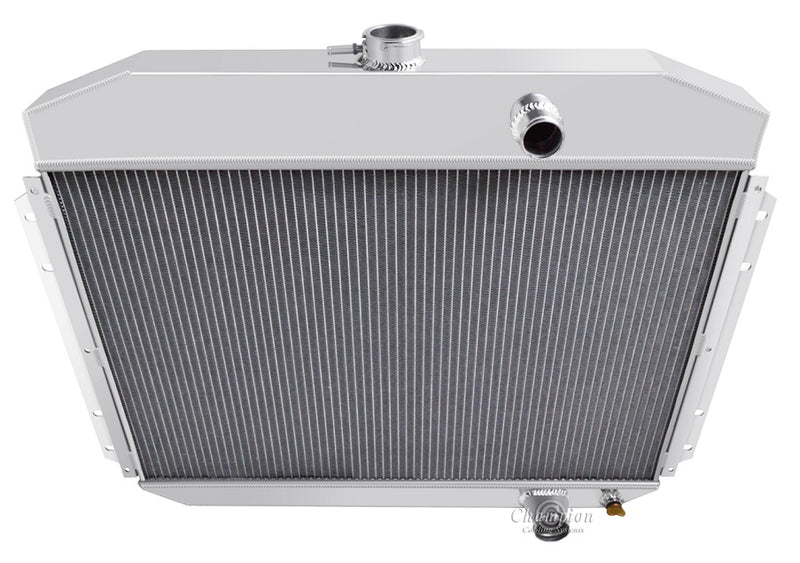

Champion All Aluminum Radiator
For 6cyl, will cool a V8 (Check your hose positions)
4-Row Core | Cools up to 700hp

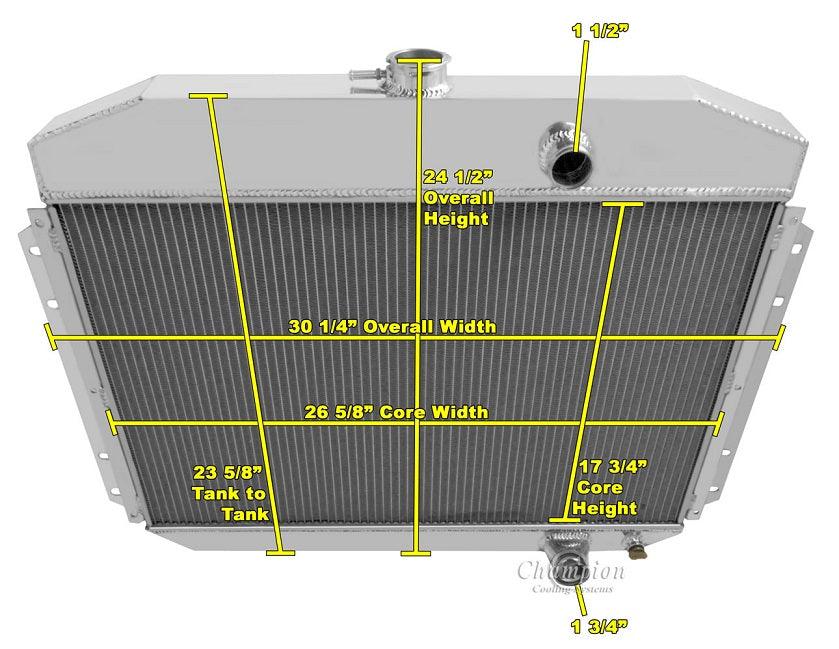

Radiator Dimensions:
Total: 24.5" tall (with cap) x 30.25" (including brackets)
Core: 17.75" tall x 26.63" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 3” thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler NOT Included

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size (sold separately)
