Description

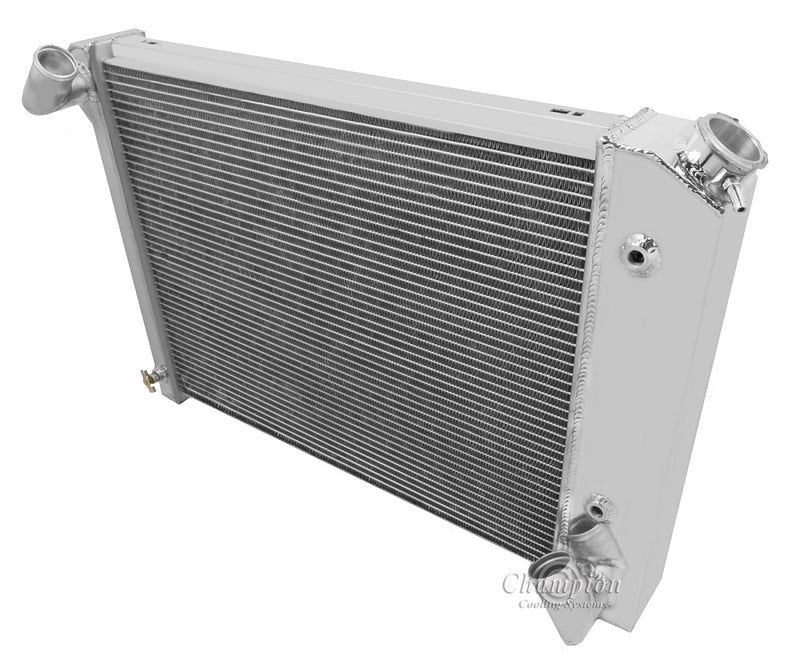

Champion All Aluminum Radiator
4-Row Core | Cools up to 650hp
Only fits the 4-Row saddle mounts
Automatic Transmissions ONLY
Radiator Dimensions:
Total: 19.25" tall (with cap) x 29" wide
Core: 17" tall x 22.5" wide x 2.8" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick
Saddle Mounted
13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
4-Row Core | Cools up to 650hp
Only fits the 4-Row saddle mounts
Automatic Transmissions ONLY
Radiator Dimensions:
Total: 19.25" tall (with cap) x 29" wide
Core: 17" tall x 22.5" wide x 2.8" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick
Saddle Mounted
13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Custom shroud for electric fan(s) available upon request:
One 16" Electric fan recommended for this core size (sold separately)
