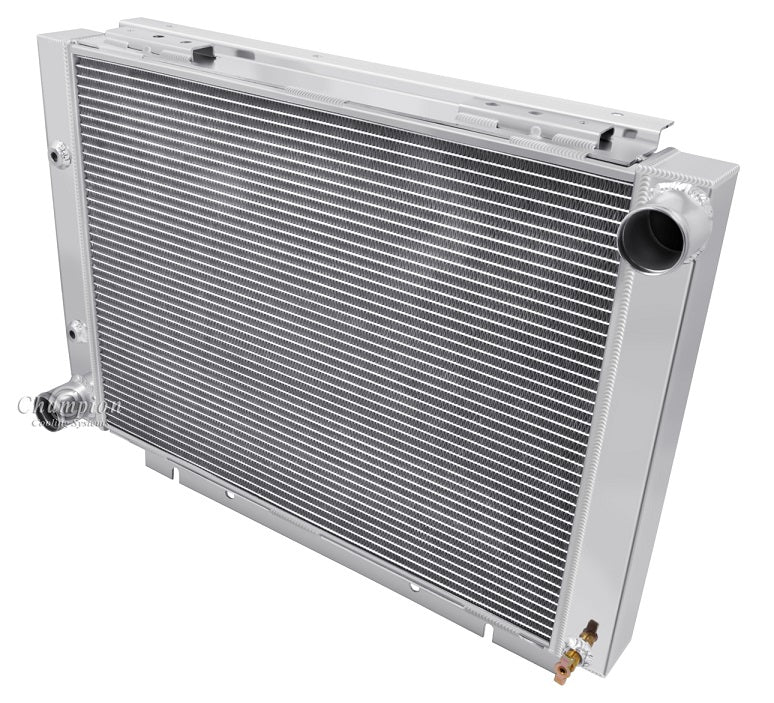

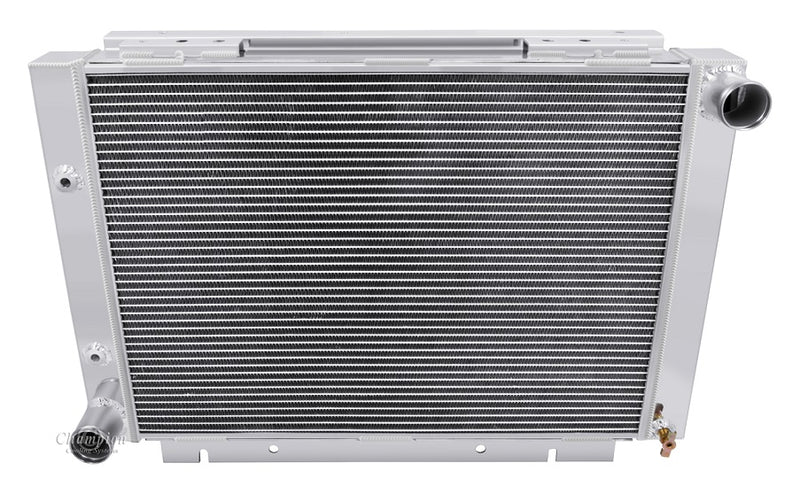

MC6063 4 Row

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp

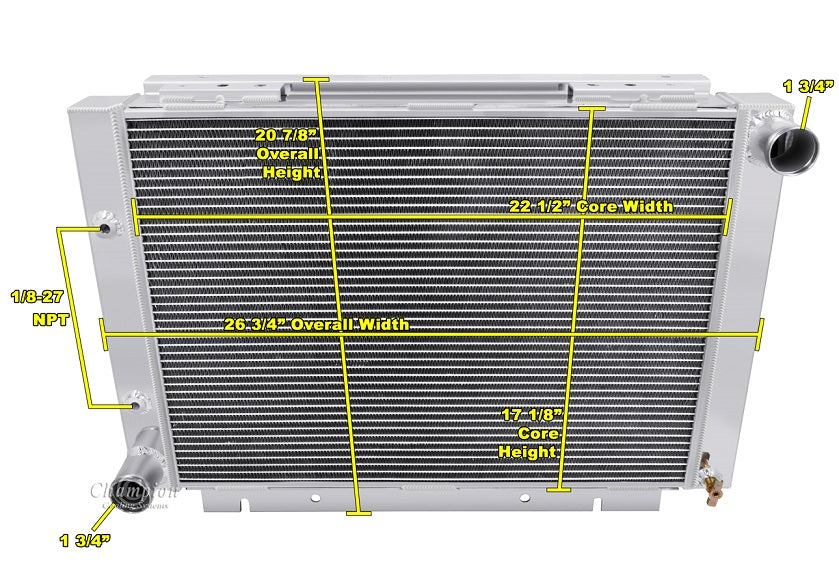

Radiator Dimensions:
Total: 20.88" tall x 26.75" wide
Core: 17.125" tall x 22.5" wide x 2.75" thick
Inlet: 1.75" passenger side
Outlet: 1.75" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Top Flange Mounted
Lower Bracket Mounted

Transmission Cooler included (1/8-27npt)
