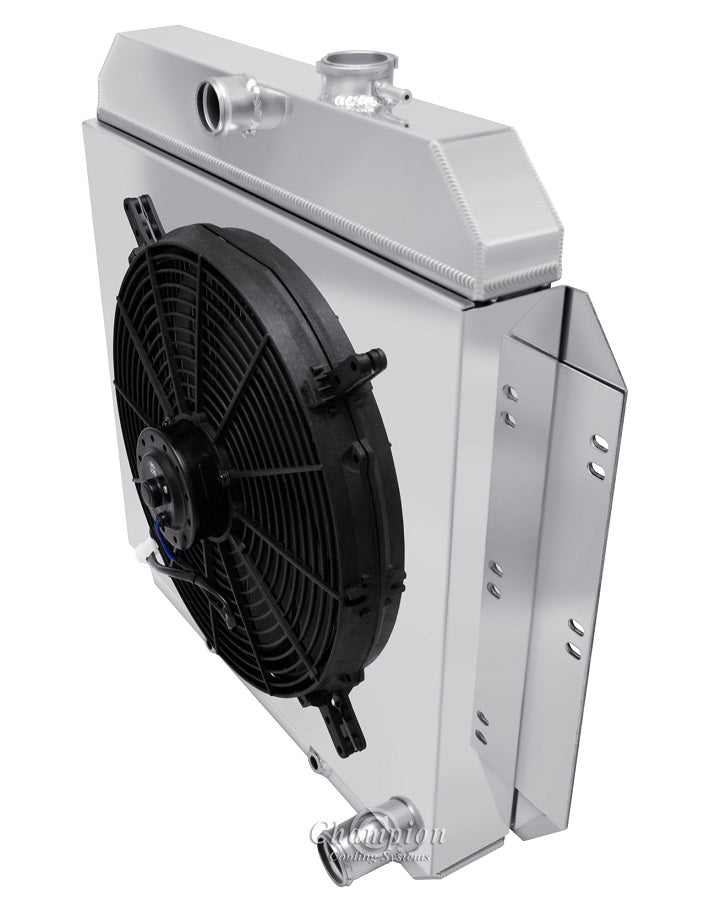

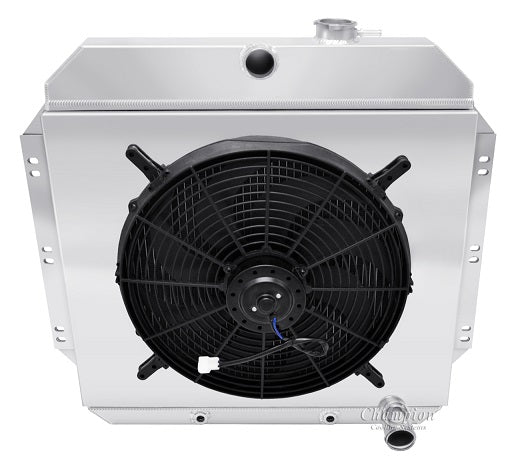

MC6062-6062FS16C 4 Row Combo

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp
Verify clearance for electric fan
Total thickness: 7" to fan motor

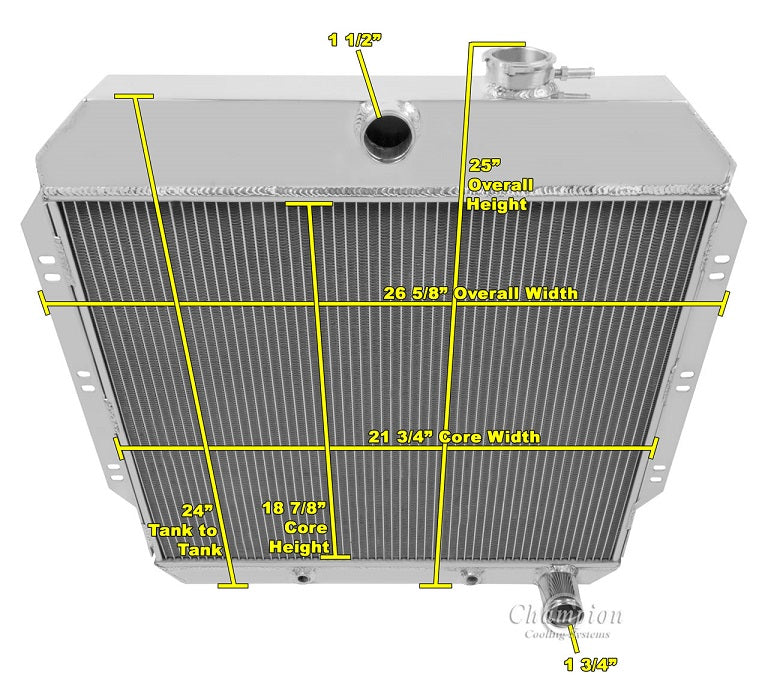

Radiators Dimensions:
Total: 25” tall (with cap) x 26.6" wide (including brackets)
Core: 18.88" tall x 21.75" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
