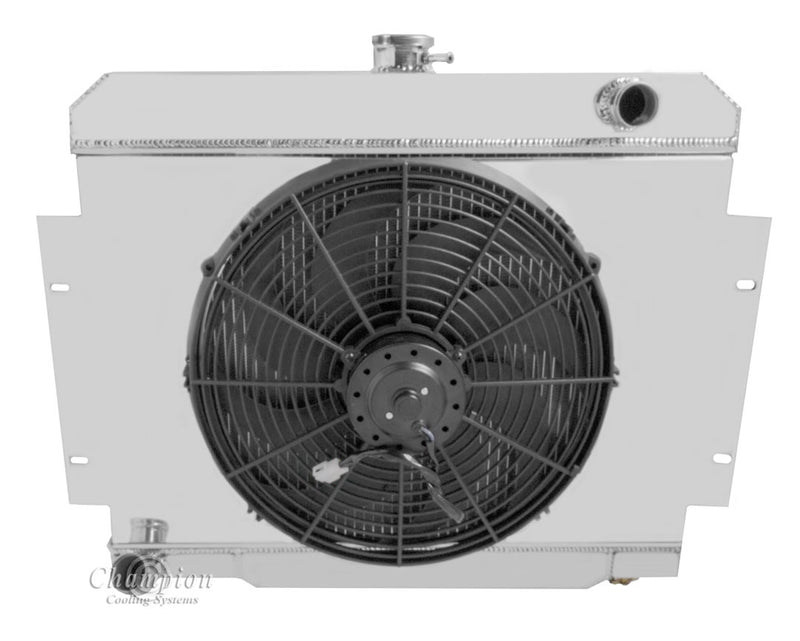

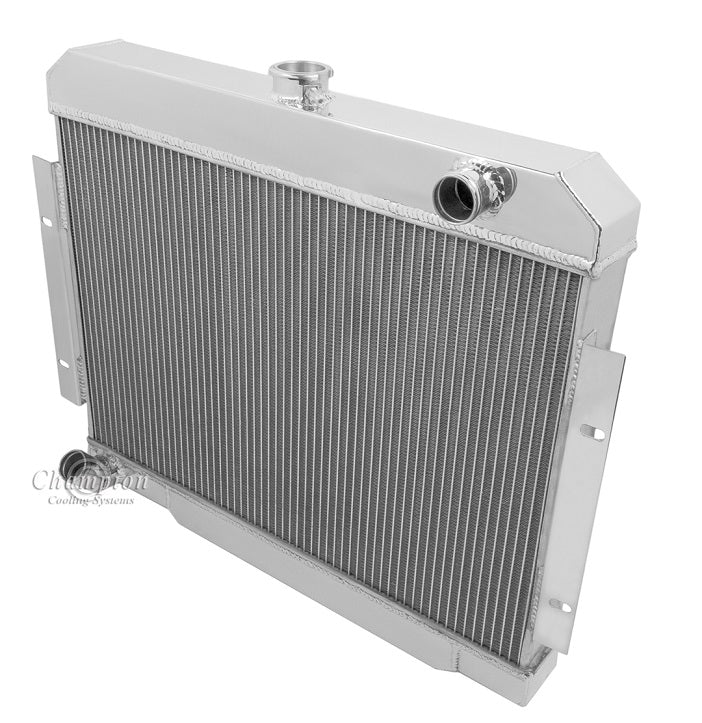

MC583-583FS16 4 Row Combo

All-Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor
4-Row Core; Polished Tanks | 700hp Rating

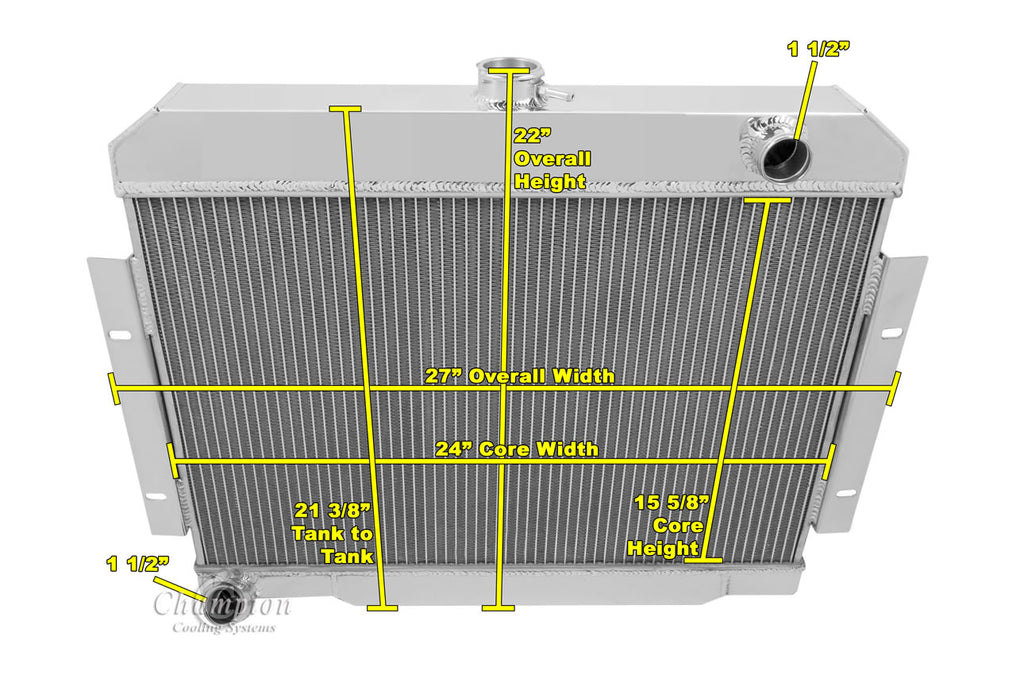

MC583 Radiator Dimensions:
Total: 22" tall x 27" wide
Core: 16" tall x 24" wide x x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler included (1/8"-27npt)
