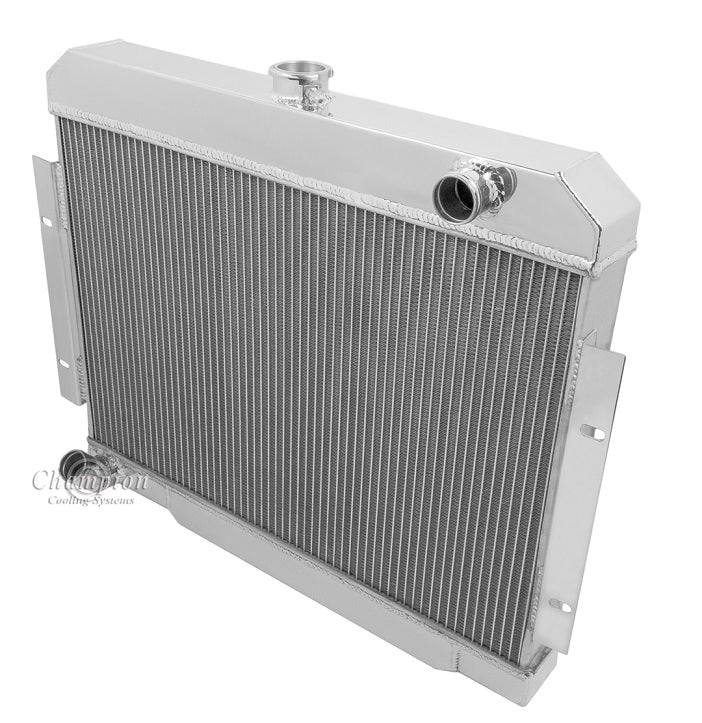

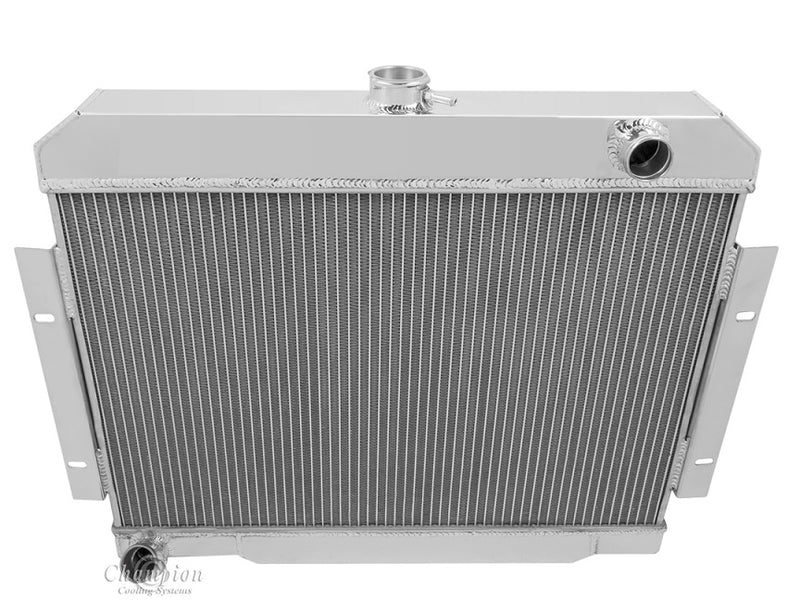

MC583 4 Row

All-Aluminum Champion Radiator
4-Row Core: Polished Tanks | Cools up to 700hp

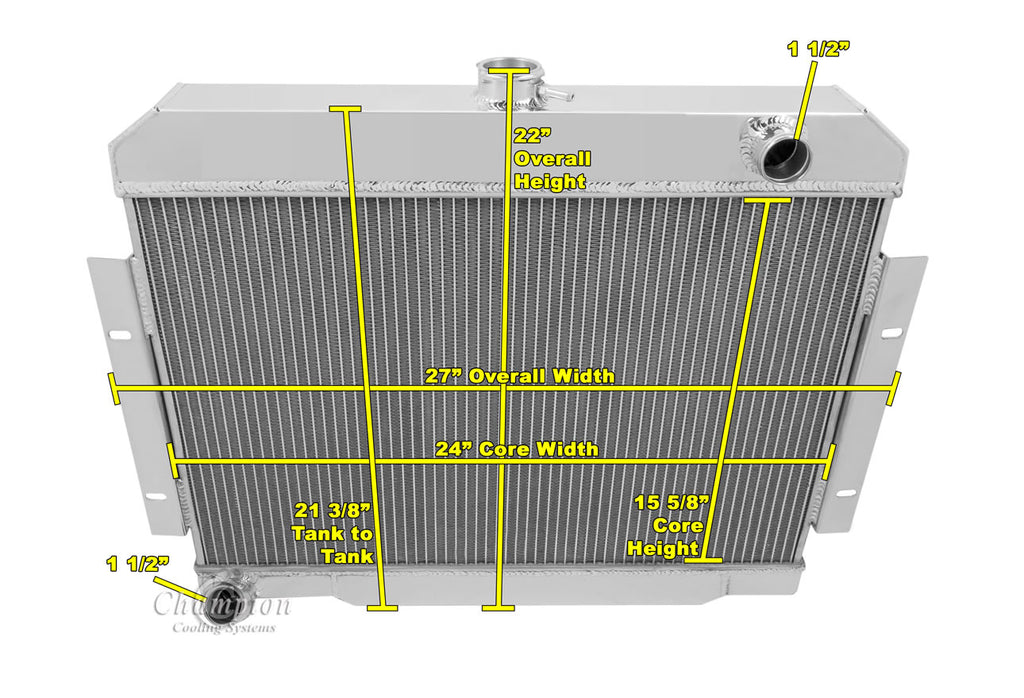

MC583 Radiator Dimensions:
Total: 22" tall x 27" wide
Core: 16" tall x 24" wide x x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler included (1/8"-27npt)
Aluminum Shroud also available (sold separately)

When using electric fans (sold separately):
One 16" Electric fan is recommended for this core size
