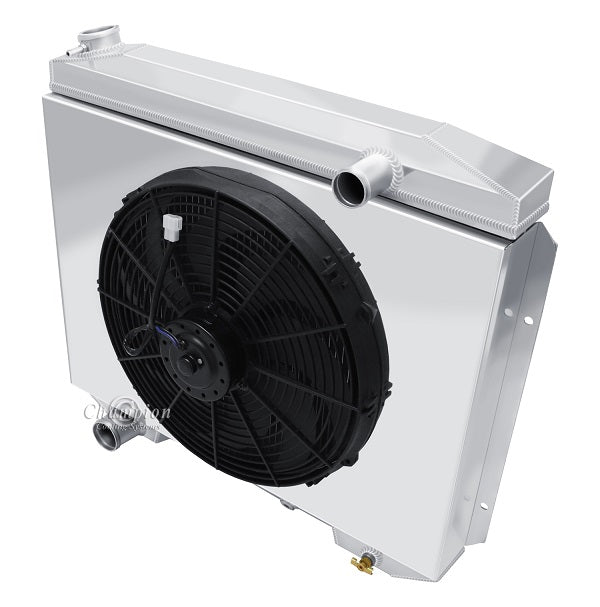

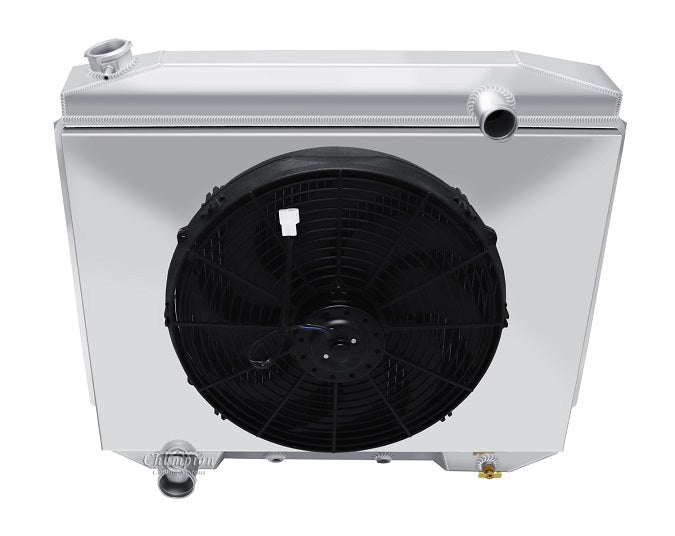

MC5759-5759FS16C 4 Row Combo

Champion All Aluminum Radiator PLUS
Aluminum Shroud and 16" Pro-Series Fan
3-Row Core | Cools up to 700hp

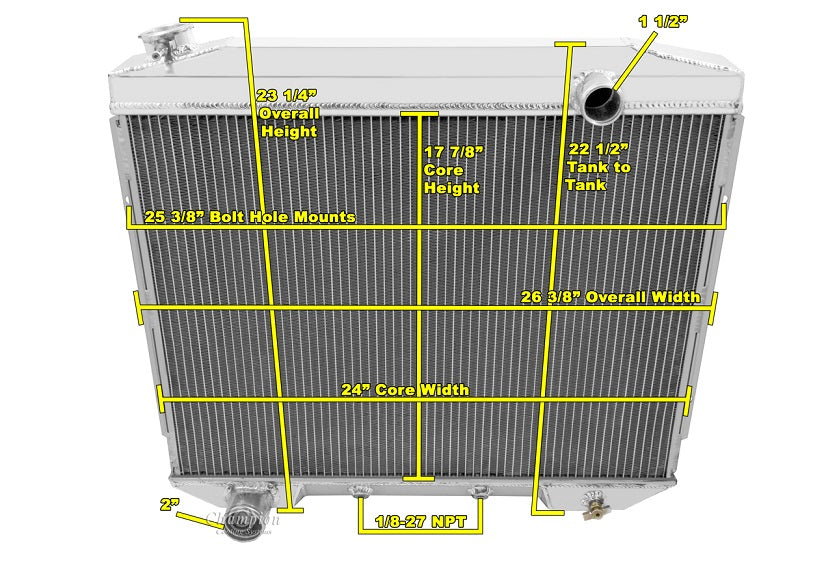

Radiator Dimensions:
Total: 22.25" tall (23.375" with cap) x 26.375" wide (with brackets)
Core: 18" tall x 24.25" wide x 2.75" thick
Inlet: 1.5" passenger
Outlet: 2" driver
Tanks: 3.13" thick
Tubes: 0.63" thick

13 lb. Radiator Cap included
Transmission Cooler included

Bracket Mounted
