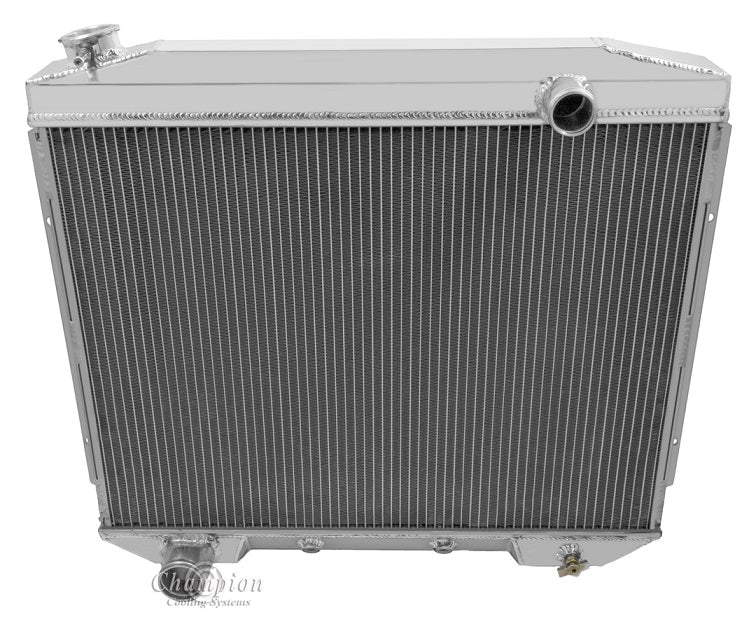

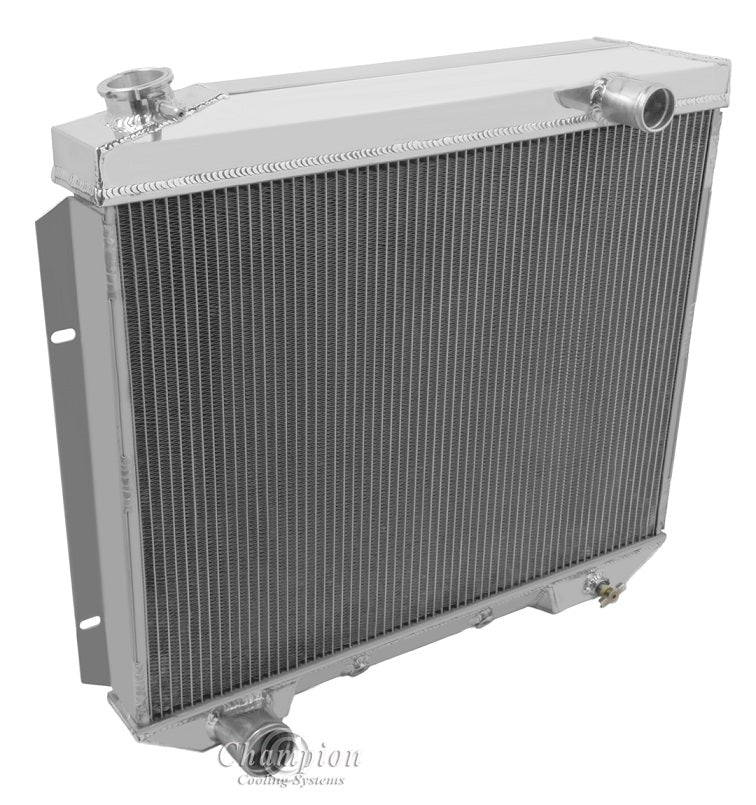

MC5759 4 Row

Champion All Aluminum Radiator
4-Row Core | Cools up to 750hp

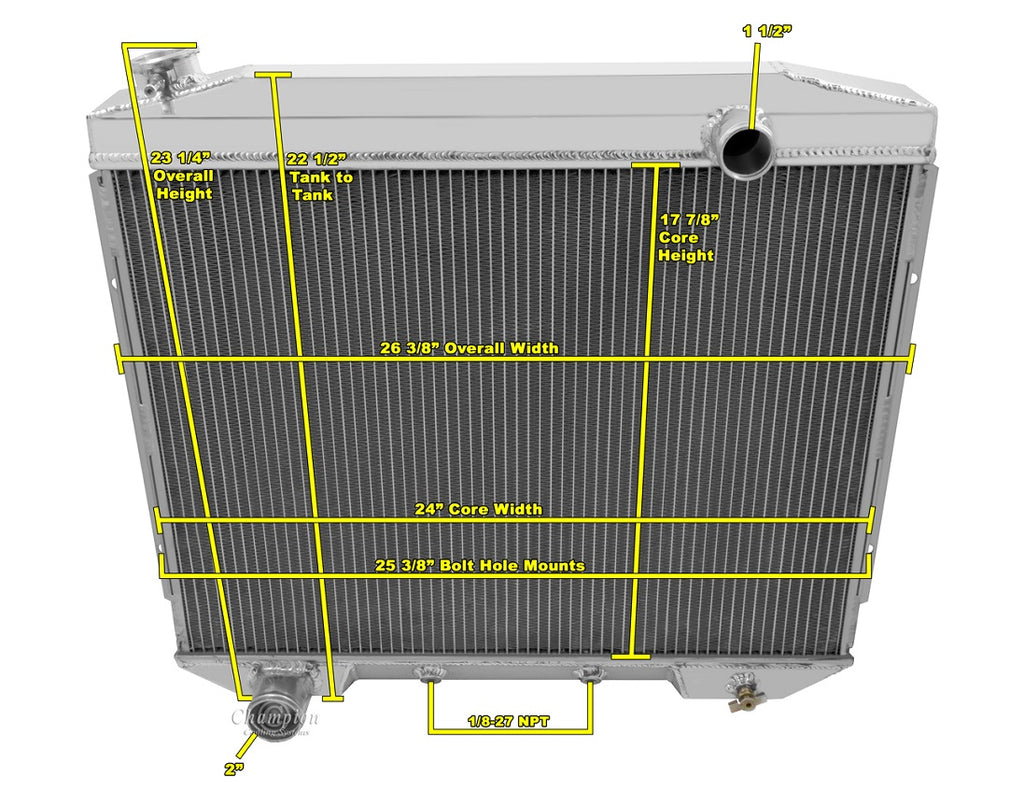

Radiator Dimensions:
Total: 22.25" tall (23.375" with cap) x 26.375" wide (with brackets)
Core: 18" tall x 24.25" wide x 2.75" thick
Inlet: 1.5" passenger
Outlet: 2" driver
Tanks: 2.5" thick
Tubes: 0.63" thick

13 lb. Radiator Cap Included
Transmission Cooler included (1/8-27 npt)

Bracket Mounted

When using electric fans:
One 16" or two 12" Electric fans recommended for this core size
