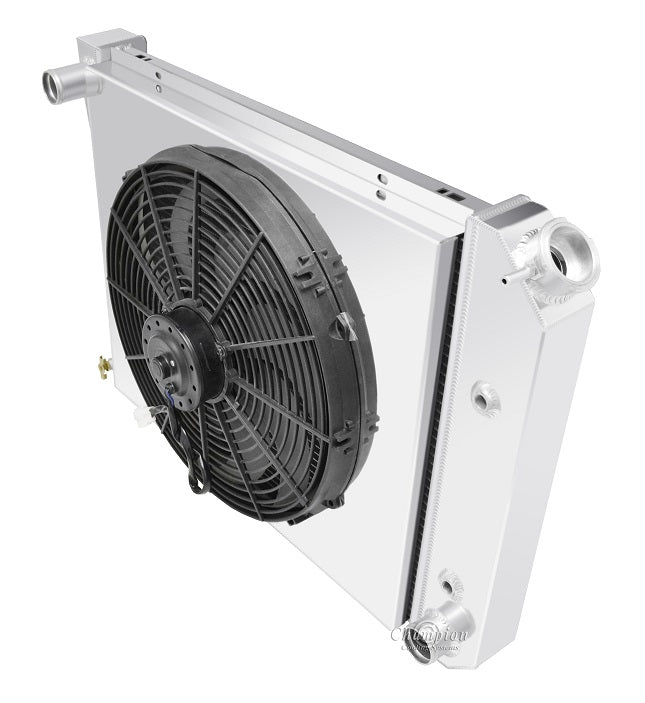

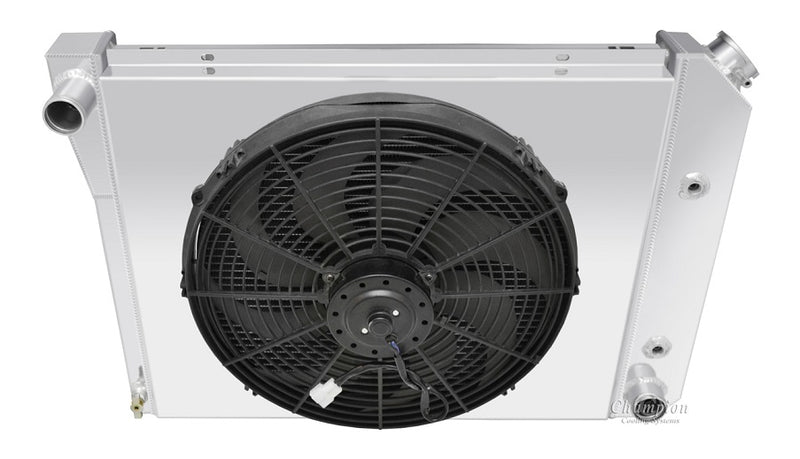

MC571-571FS16 4 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
4-Row Core: Polished Tanks | 650hp Rating
Verify clearance for electric fan
Total thickness: 7" to fan motor

Radiator Dimensions:
Total: 18.5" tall (18.75" with cap) x 27" wide
Core: 17" tall x 21.25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
