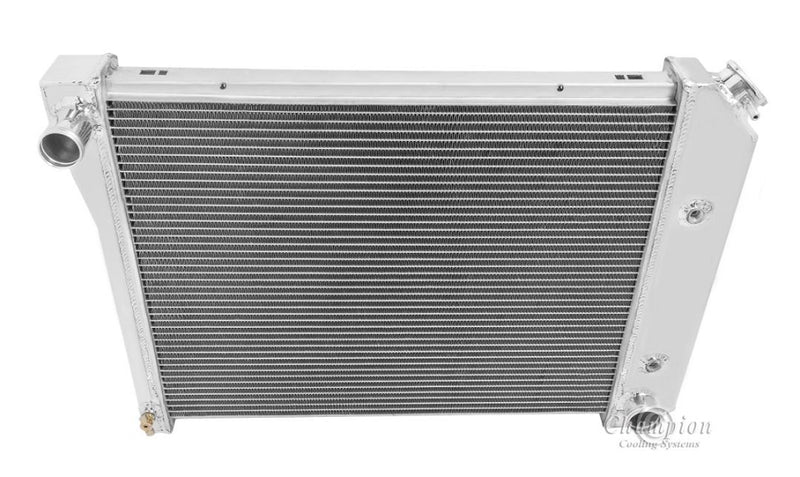

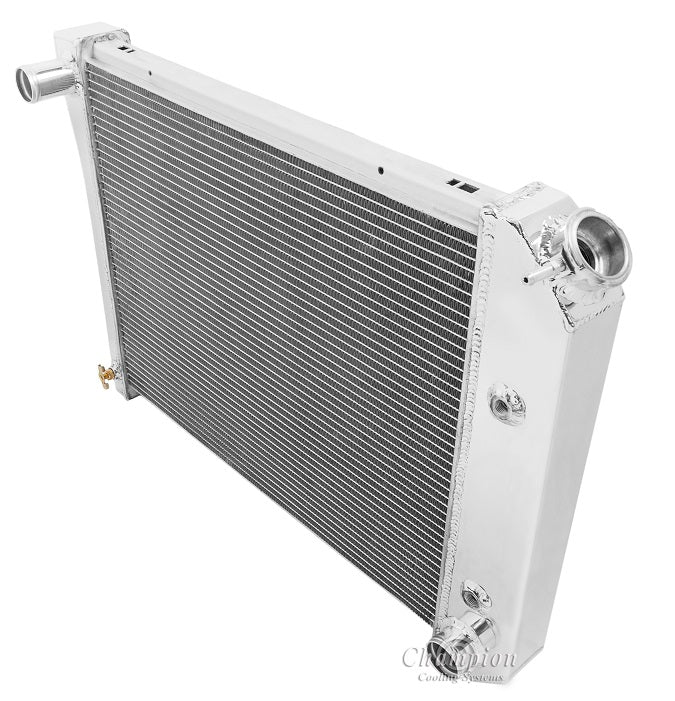

MC571 4 Row

Champion All Aluminum Radiator
4-Row Core; Polished Tanks | Cools up to 600hp

Radiator Dimensions:
Total: 18.5" tall (18.75" with cap) x 27" wide
Core: 17" tall x 21.25" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 3.13” thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
