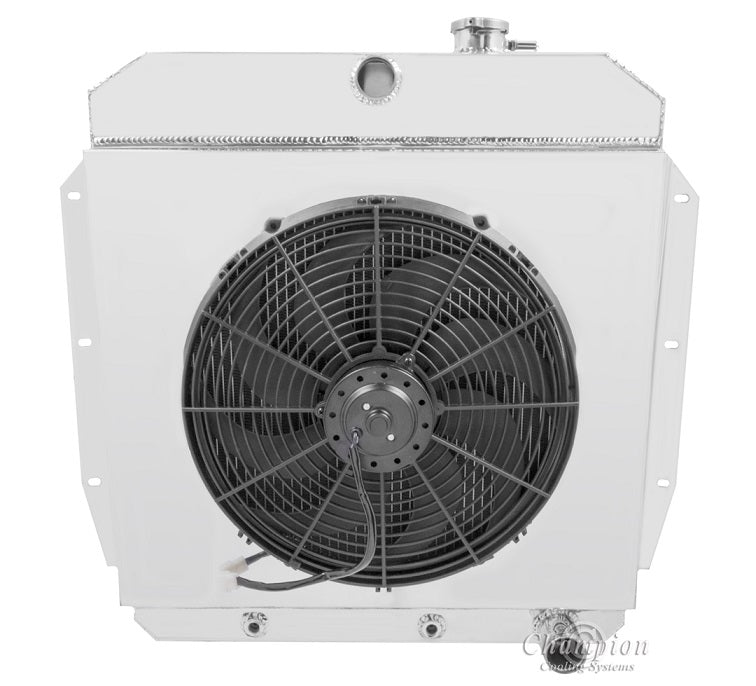

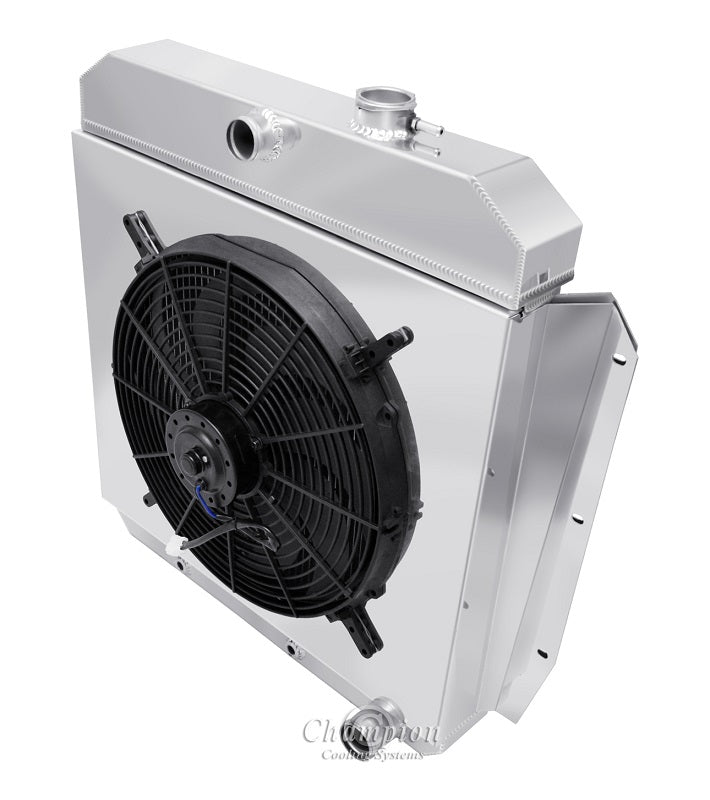

MC5559-5559MCFS16C 4 Row

Champion All Aluminum Radiator
4-Row Core | Cools up to 750hp
Verify clearance for electric fan
Total thickness: 7" to fan motor

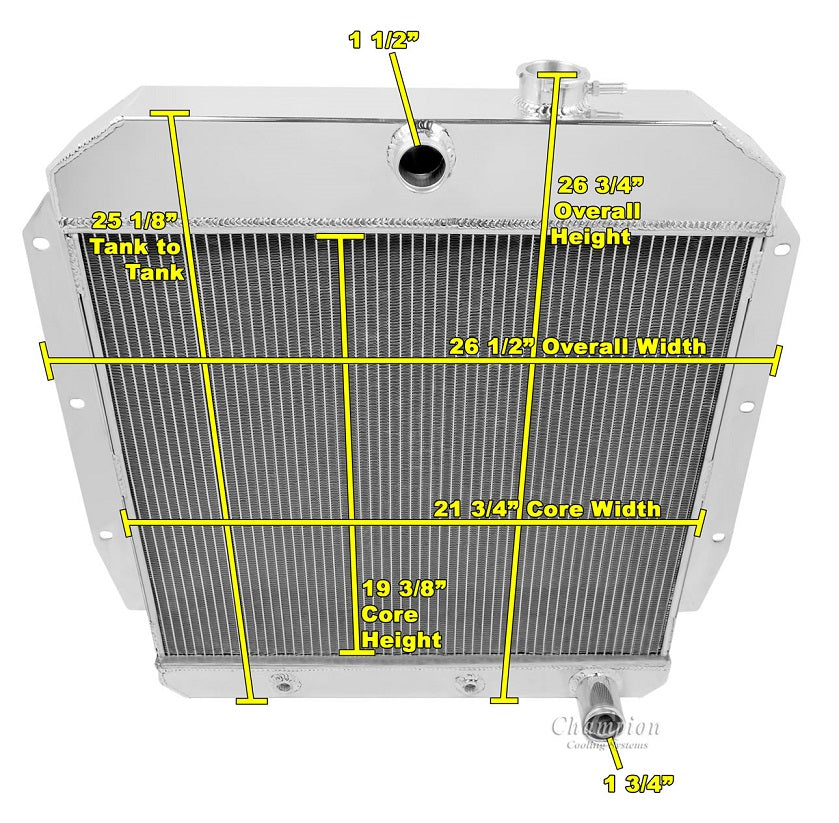

Radiator Dimensions:
Total: 26.75" tall (with cap) x 26.5" wide (with brackets)
Core: 19.38" tall x 21.75" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" Passenger side
Tanks 3.13" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
