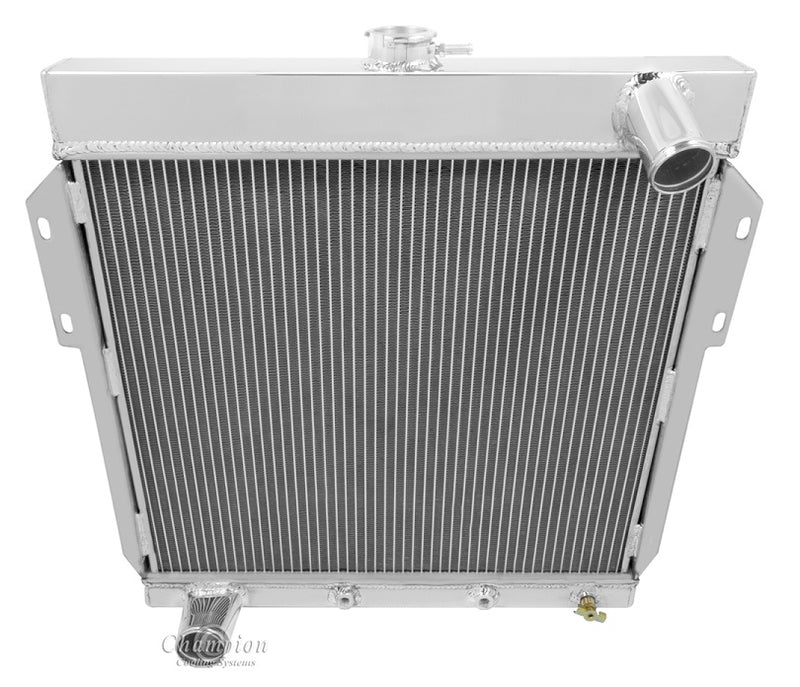

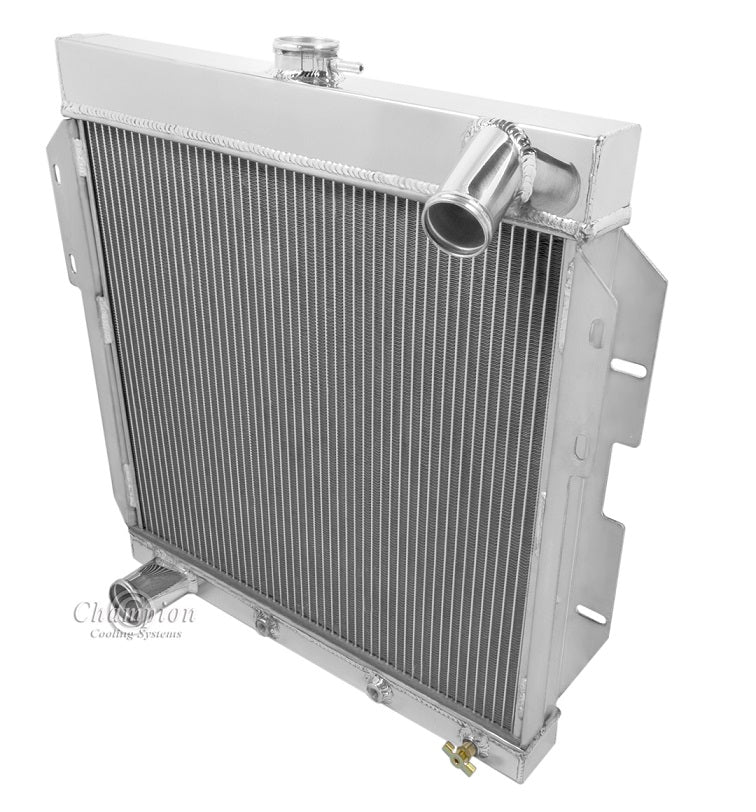

MC5557 4 Row

All Aluminum Champion Radiator
4-Row Core

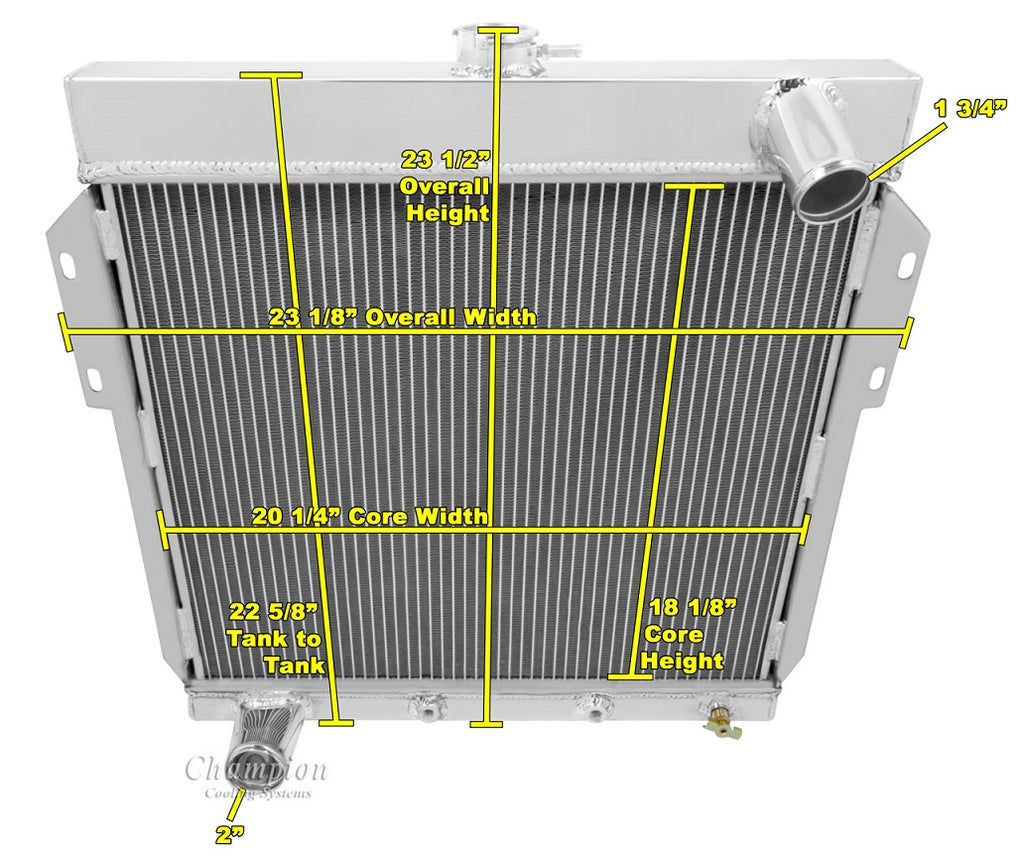

Radiator Dimensions:
Total: 23.5" tall (with cap) x 23.13" wide
Core: 18.13" tall x 20.25" wide x 2.75" thick
Inlet: 1.75" Passenger side
Outlet: 2" Drivers side
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler included (1/8-27npt)

When using electric fans:
16" Electric fan recommended for this core size (sold separately)

Custom shroud for electric fan(s) available upon request:
