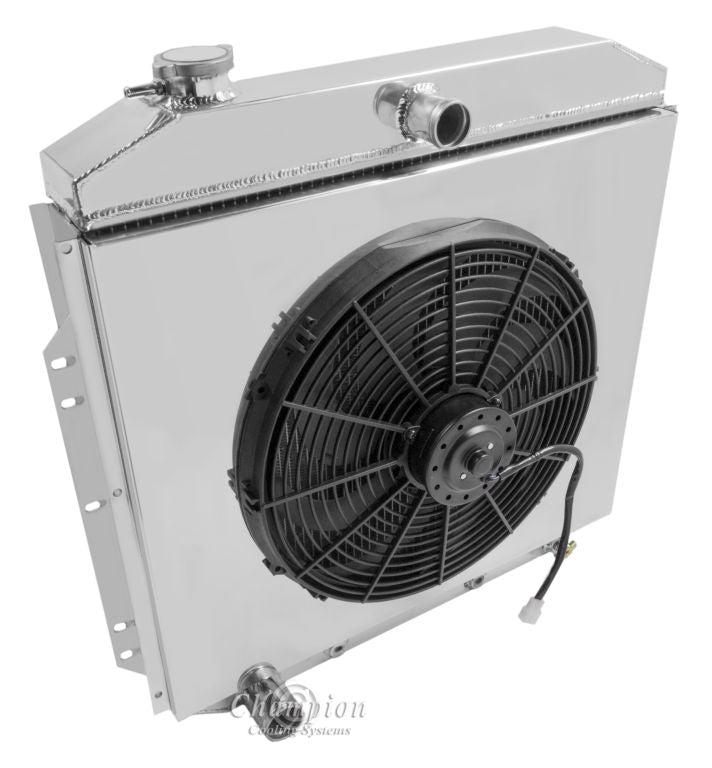

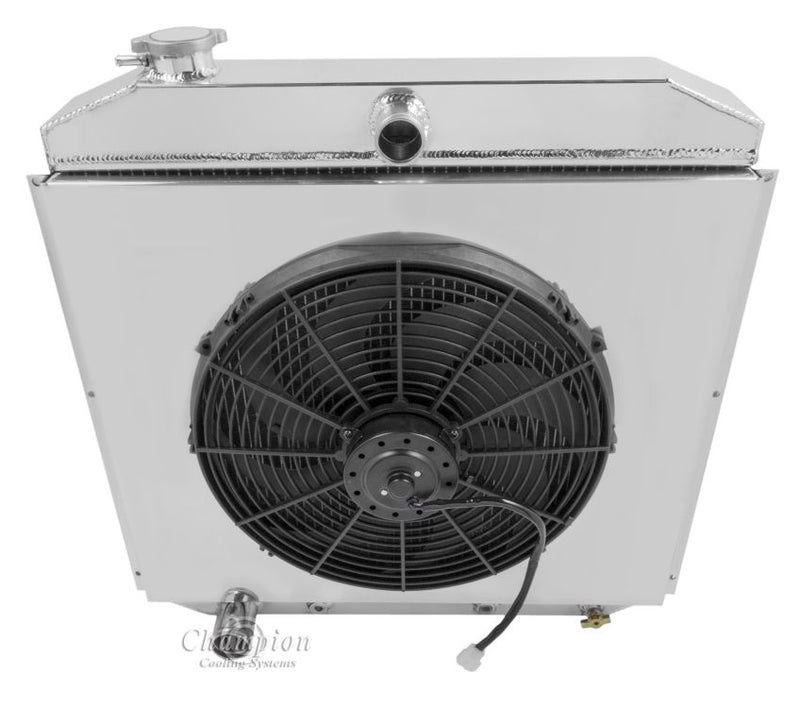

MC5356-5356FS16 4 Row Combo

All Aluminum Champion Radiator PLUS
Ledfoot Racing Aluminum Shroud & 16" Pro-Series Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor
4-Row Core | 750hp Rating

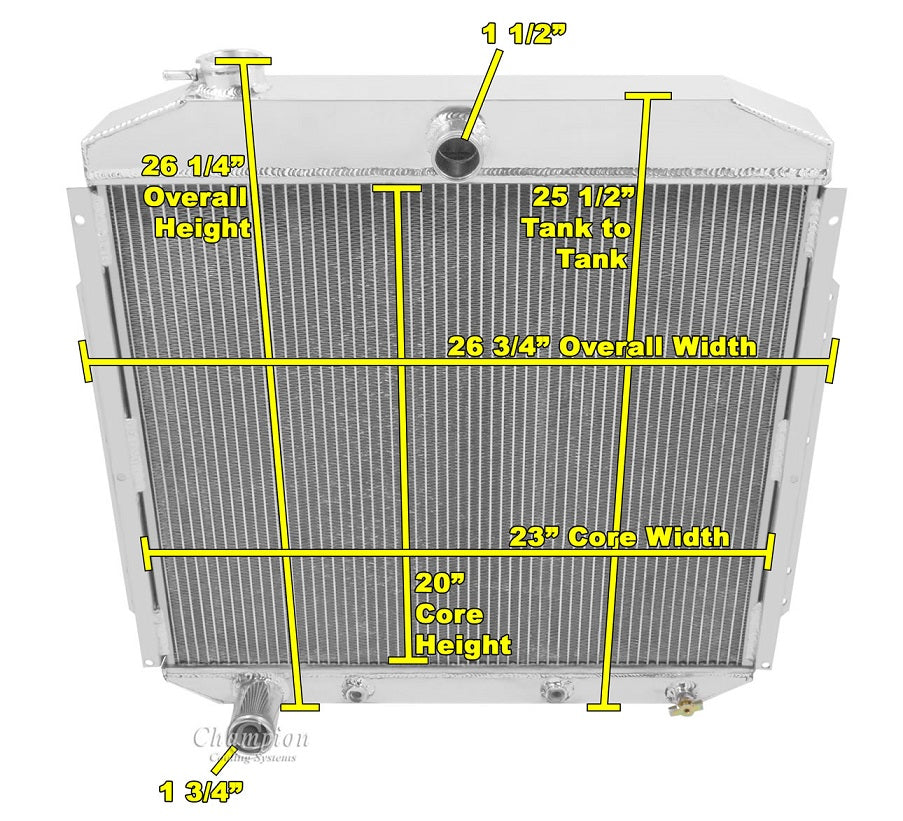

Radiator Dimensions:
Total: 26.25" tall (with cap) x 26.75" wide (including brackets)
Core: 20" tall x 23" wide x 2.75" thick
Inlet: 1.5"
Outlet: 1.75"
Tanks: 2.75" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27 NPT)
