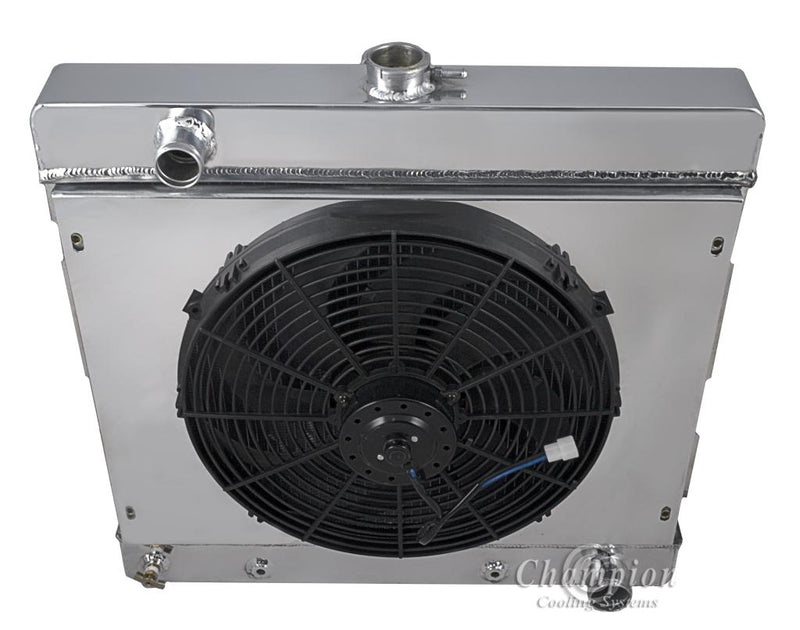

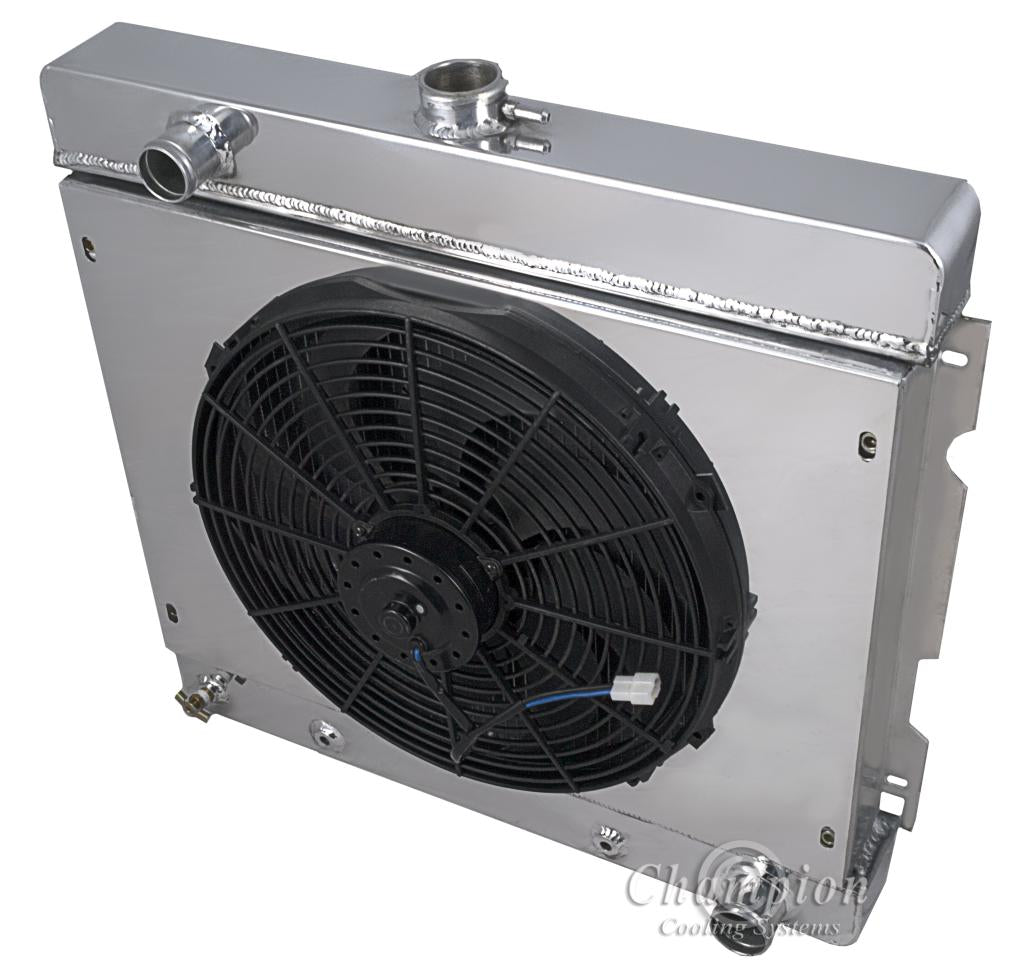

MC526-526FS16CSP 4 Row Combo

Champion All Aluminum Radiator
Ledfoot Racing Shroud and SPAL 16" Medium Profile Fan
Please confirm you have room for the overall thickness
4-Row Core | Cools up to 650hp

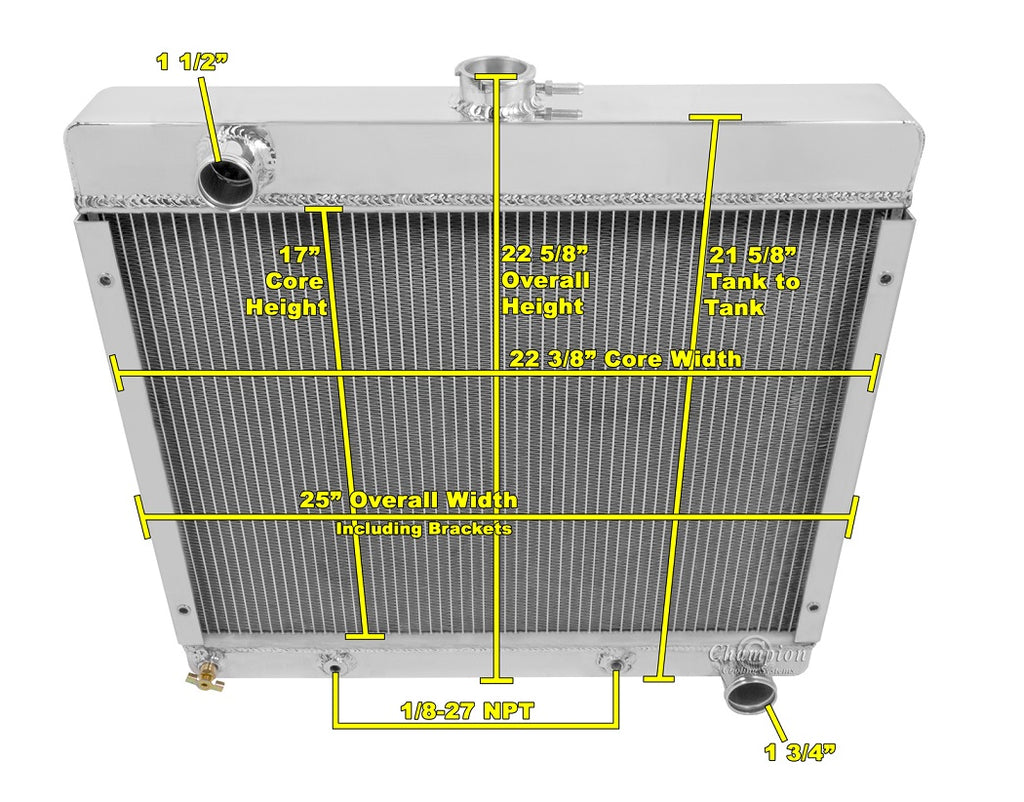

Radiator Dimensions:
Total: 22.88" tall x 25" wide (with brackets)
Core: 17" tall x 22.5" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Total Thickness: 6.5" to back of fan

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler included: (1/8-27NPT)
