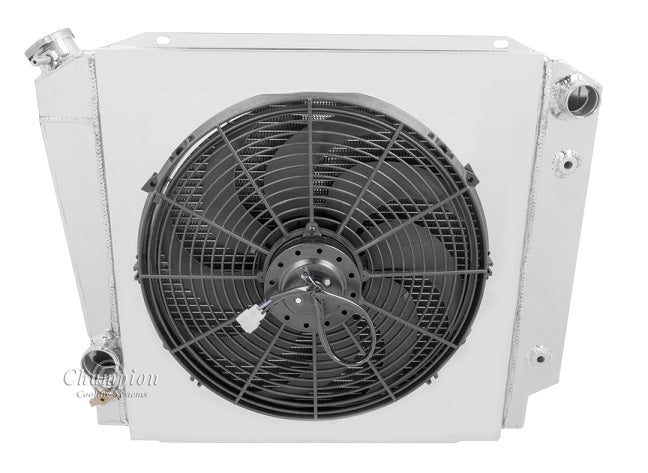

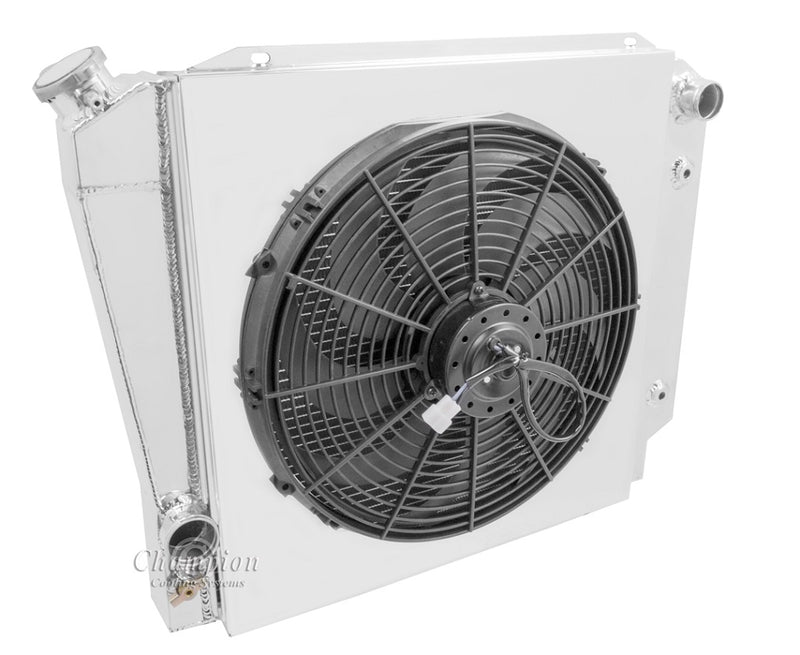

MC522-522FS16 4 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor
Conversion style radiator
4-Row Core | Cools 650hp

Radiator Dimensions:
Total: 21" tall x 26.38" wide
Core: 19.13" tall x 19" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Shroud Bracket Nut Inserts: 6MM-1

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler included (1/8-27NPT)

This radiators tanks are 3 1/8" thick and
custom mounts may be needed
