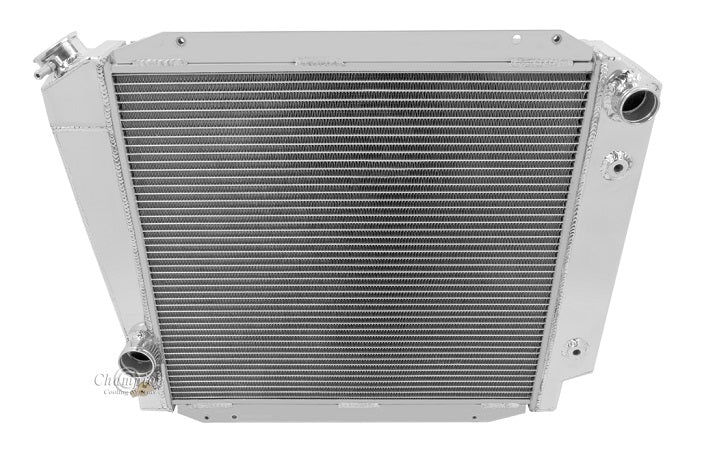

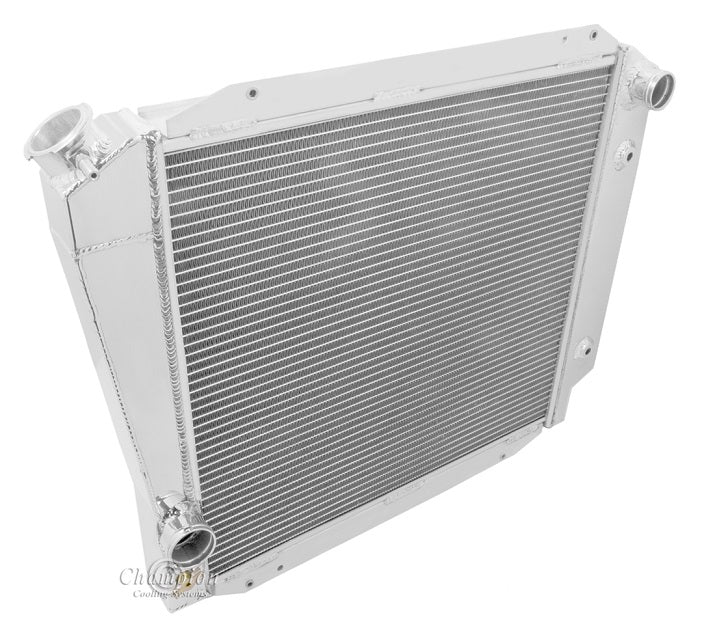

MC522 4 Row

Champion All Aluminum Radiator
Newer 5.0 Conversion style radiator
4-Row Core | Cools up to 650hp

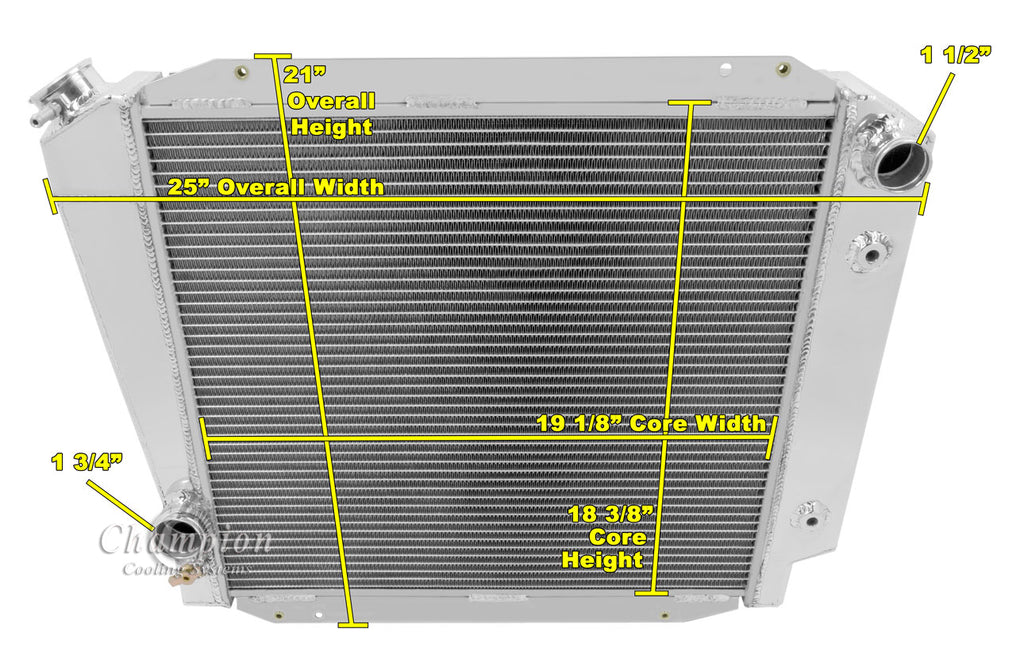

Radiator Dimensions:
Total: 21" tall x 26" wide (including brackets)
Core: 19" tall x 19" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 3.2" thick
Tubes: 0.63" thick
Shroud Bracket Nut Inserts: 6MM-1

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also Available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
