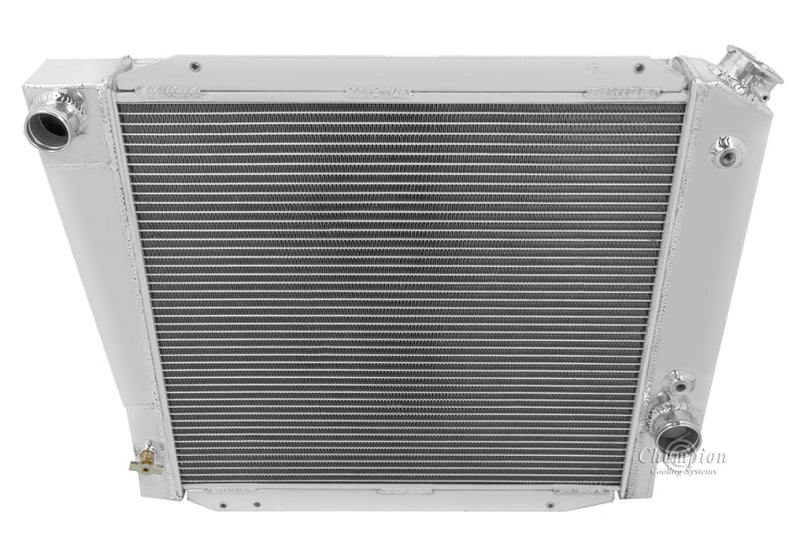

MC521 4 Row

Champion All Aluminum Radiator
4-Row Core: Polished Tanks | Cools up to 650hp

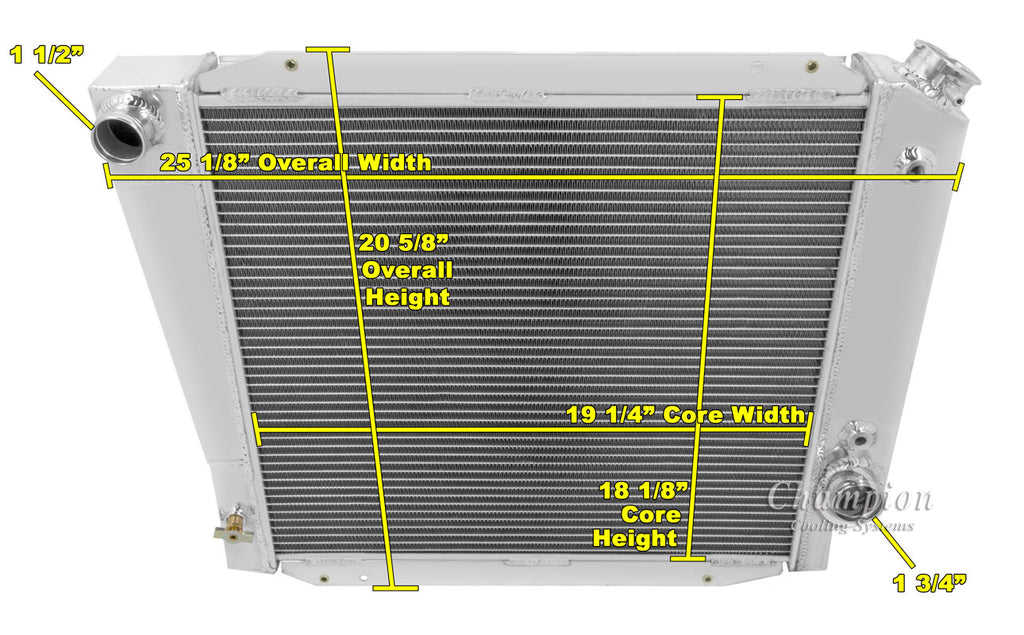

Radiator Dimensions:
Total: 21" tall x 26.38" wide
Core: 19.13" tall x 19" wide x 2.75" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 3.13" thick
Tubes: 0.63" thick
Shroud Bracket Nut Inserts: 6MM-1

Saddle Mounted

13 lb. Radiator Cap Included
Transmission Cooler included (1/8-27NPT)

Aluminum Fan Shroud is also available (sold separately)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)

note: Make sure there is room in front of the water pump, custom mounts needed for 3 1/8" thick tanks
