Description

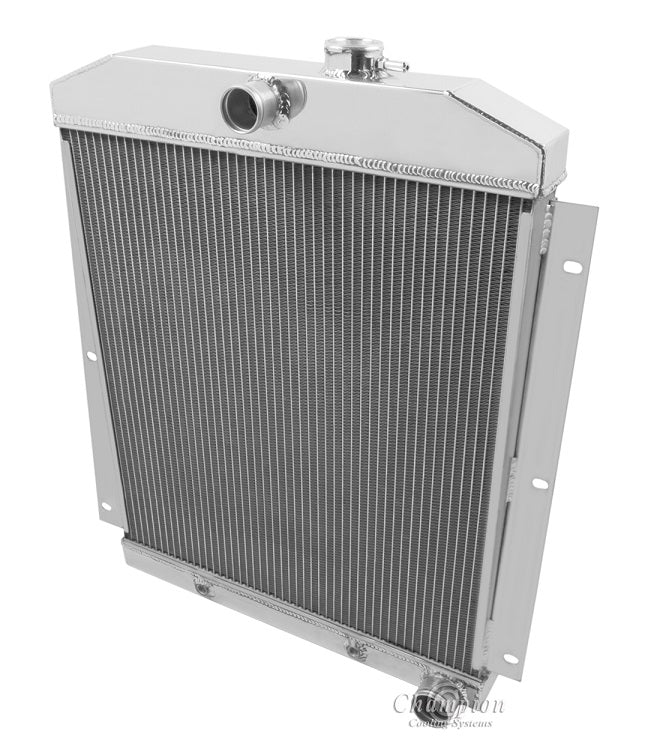

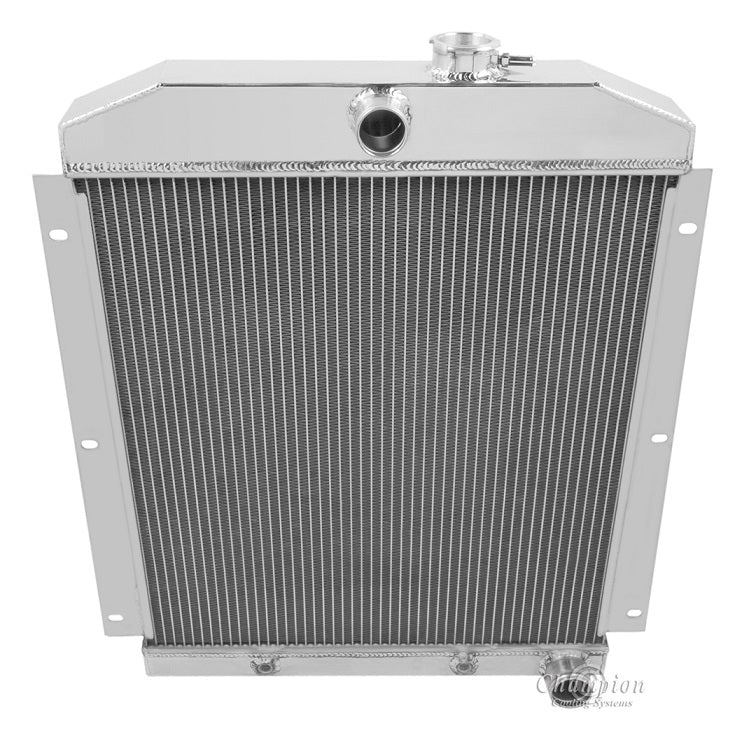

Champion All Aluminum Radiator
4-Row Core | Cools up to 800hp
Polished Tanks

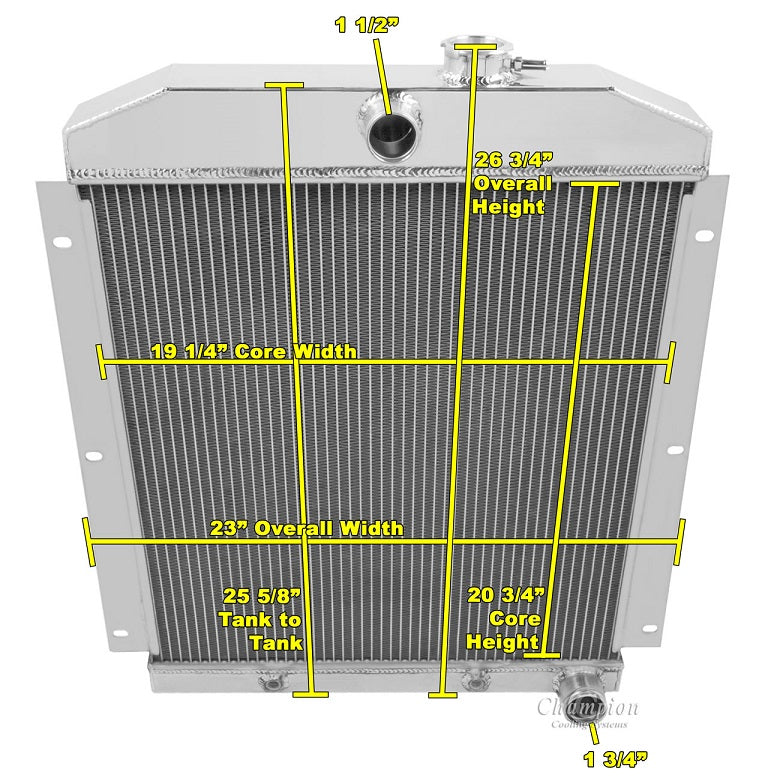

Radiator Dimensions:
Total: 26.75" tall x 23" wide (including brackets)
Core: 20.75" tall x 19.25" wide x 3.13" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Bracket Mounted
(Angled Brackets match OEM)
13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare) When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
4-Row Core | Cools up to 800hp
Polished Tanks
Radiator Dimensions:
Total: 26.75" tall x 23" wide (including brackets)
Core: 20.75" tall x 19.25" wide x 3.13" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick
Bracket Mounted
(Angled Brackets match OEM)
13 lb. Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare) When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
Custom shroud for electric fan(s) available upon request:
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
