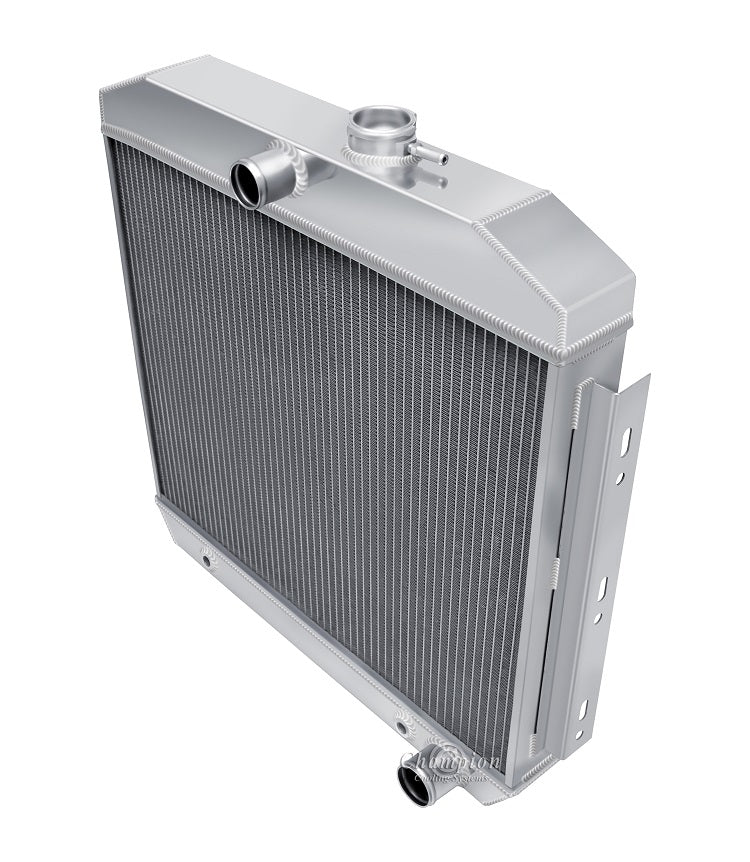

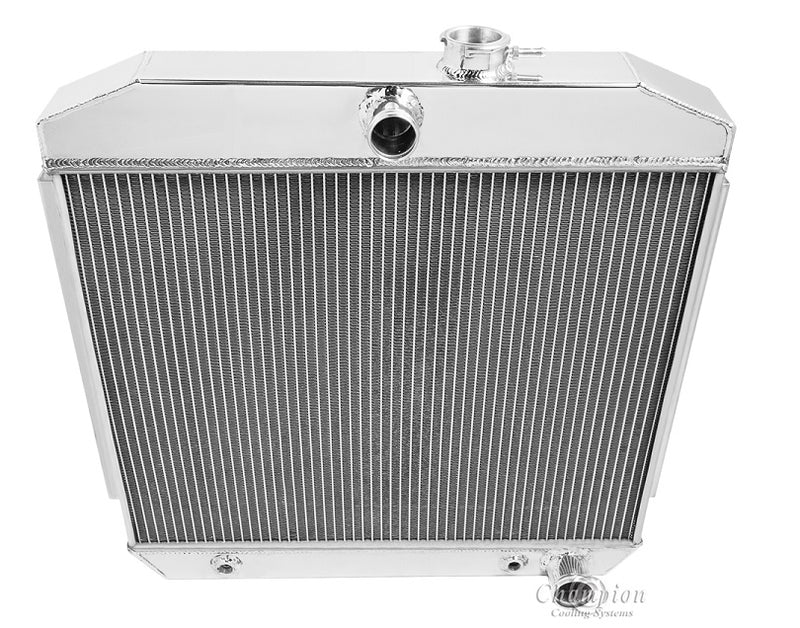

MC5057 4 Row

Champion All Aluminum Radiator
Mounts on the engine side of the core support
4-Row Core | Cools up to 700hp

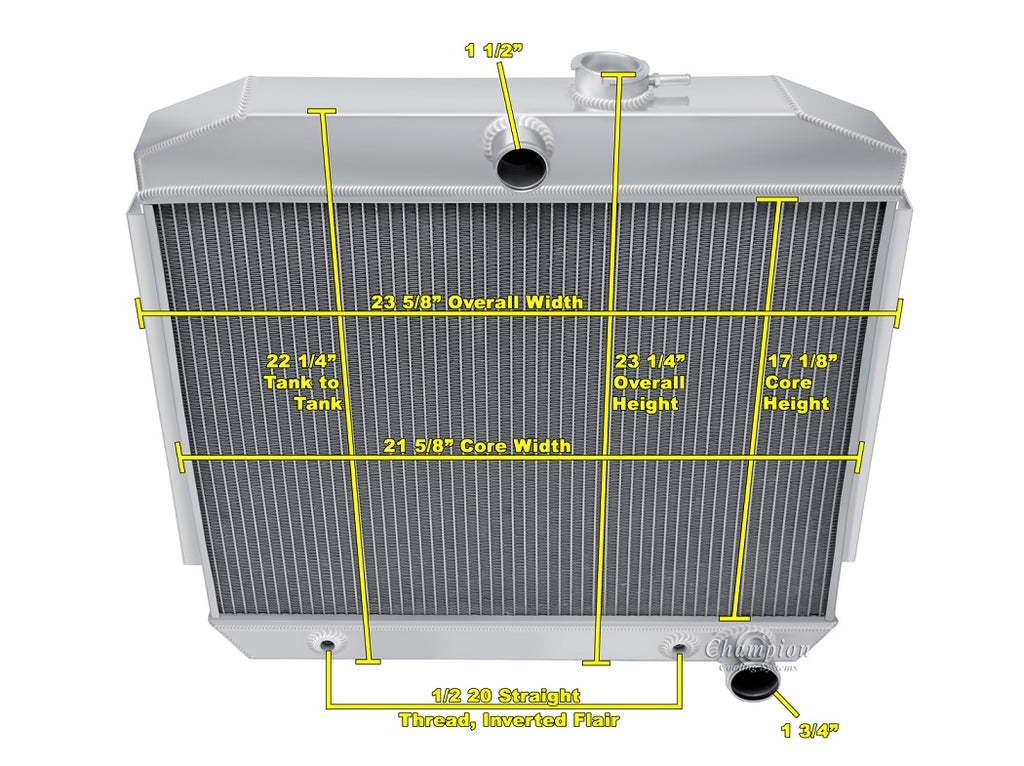

Radiator Dimensions:
Total: 22.25" tall (23.5" with cap) x 23.5" (including brackets)
Core: 17.25" tall x 21.5" wide x 2.75" thick
Inlet: 1.5" center
Outlet: 1.75" passenger side
Tanks: 3.25" thick
Tubes: 0.63" thick

Bracket Mounted
Direct Fit Replacement

V8 mounts
13 lb. Radiator Cap Included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans:
One 16" or two 10" Electric fans recommended for this core size (sold separately)
