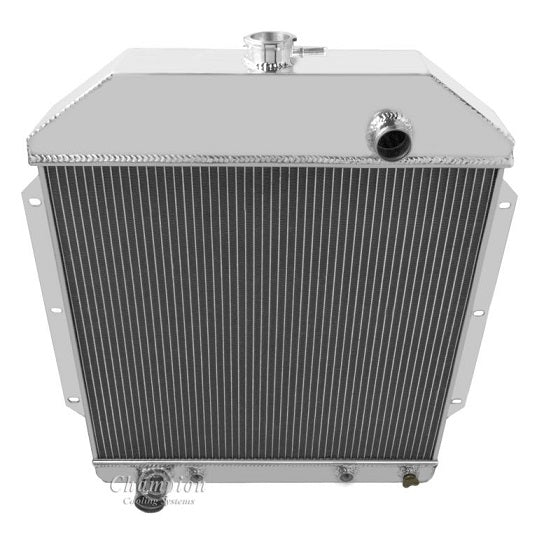

MC49FD 4 Row Ford Motors

Champion All Aluminum Radiator
4-Row Core | Cools up to 700hp

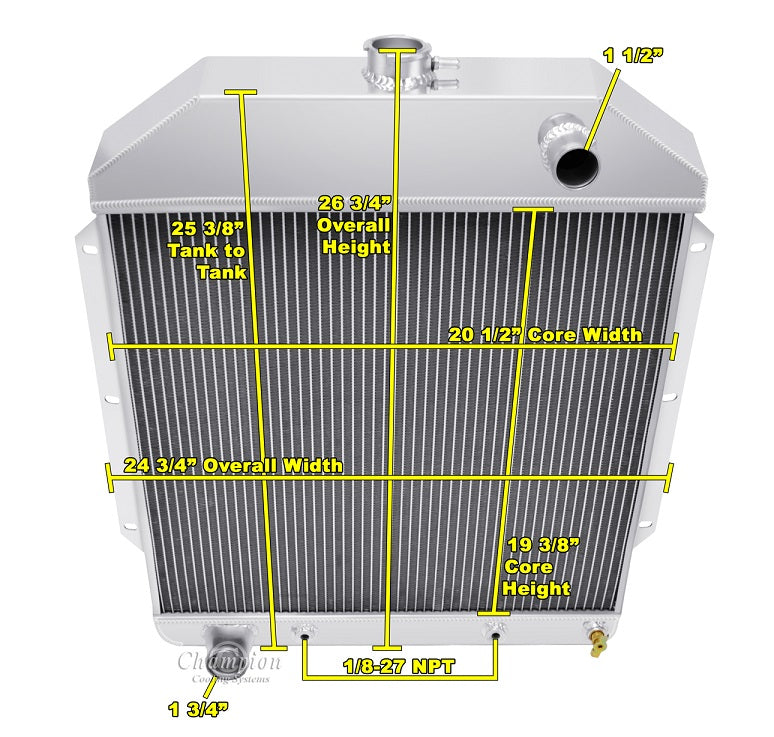

Radiator Dimensions:
Total: 26.75" tall (with cap) x 24.75" wide (including brackets)
Core: 19.38" tall x 20.5" wide x 2.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: (top) 3.88" thick; (bottom) 3.88" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8" 27npt)

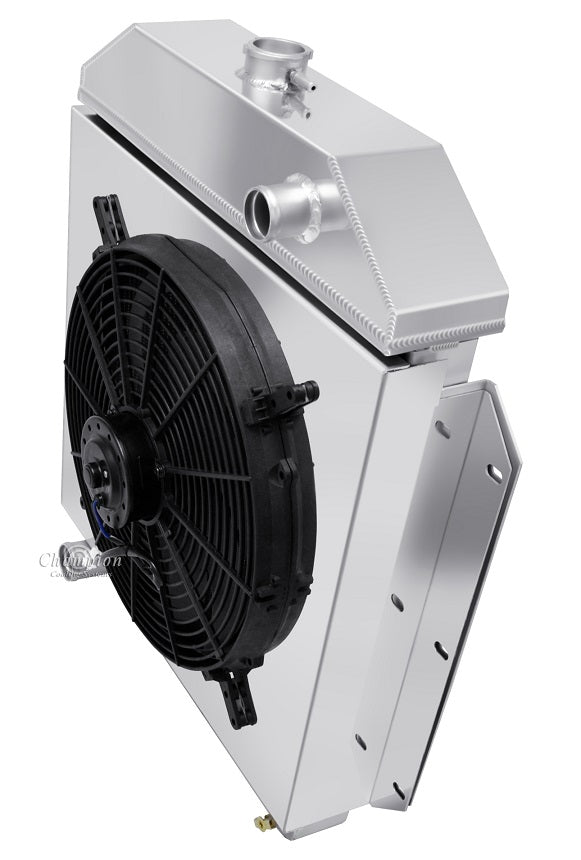

Aluminum Fan Shroud is also available (sold separately)

Recommended electric fans (sold separately):
One 16" Electric Fan
