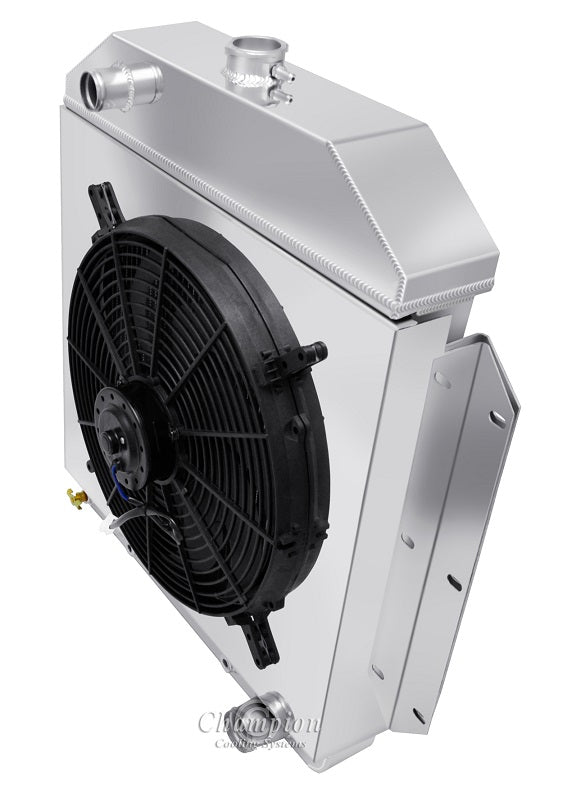

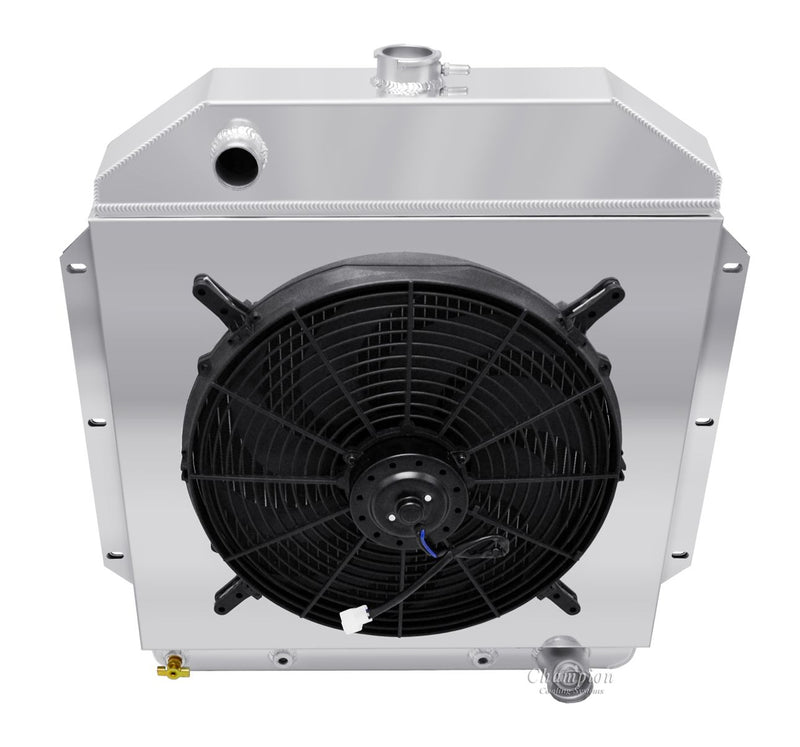

MC49CH-49FS16 4 Row Combo Chevy Engines

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 7" to fan motor
Chevy Engines Setup: Does not fit Ford 6 Cyl
Bracket for 6 cyl is on opposite face of radiator
Modifications are available, ask sales person
4-Row Core | Cools up to 700hp

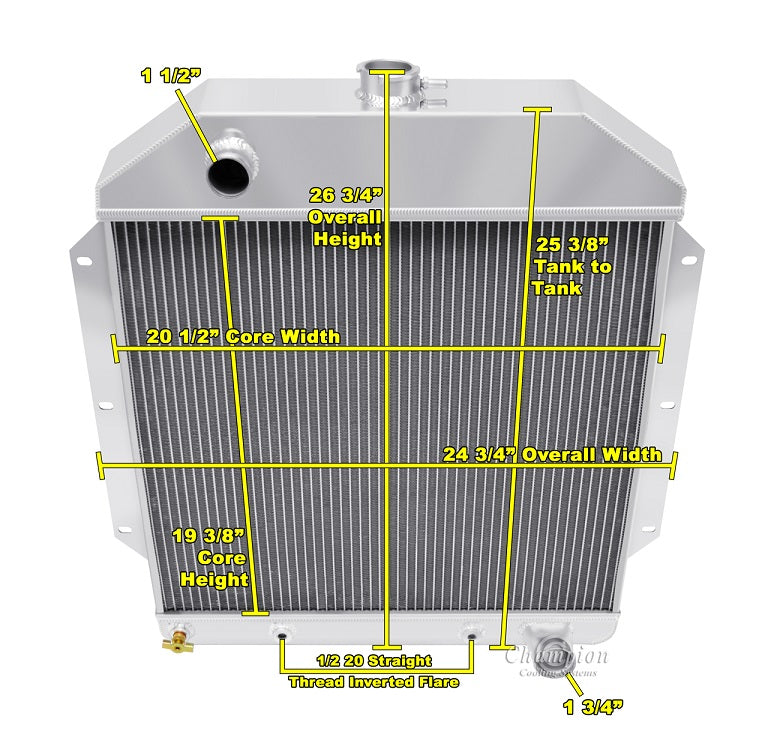

Radiator Dimensions:
Total: 26.63" tall x 24.75" wide
Core: 19.38" tall x 20.5" wide x 2.75" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: 3.88" thick
Tubes: 0.63" thick

Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
